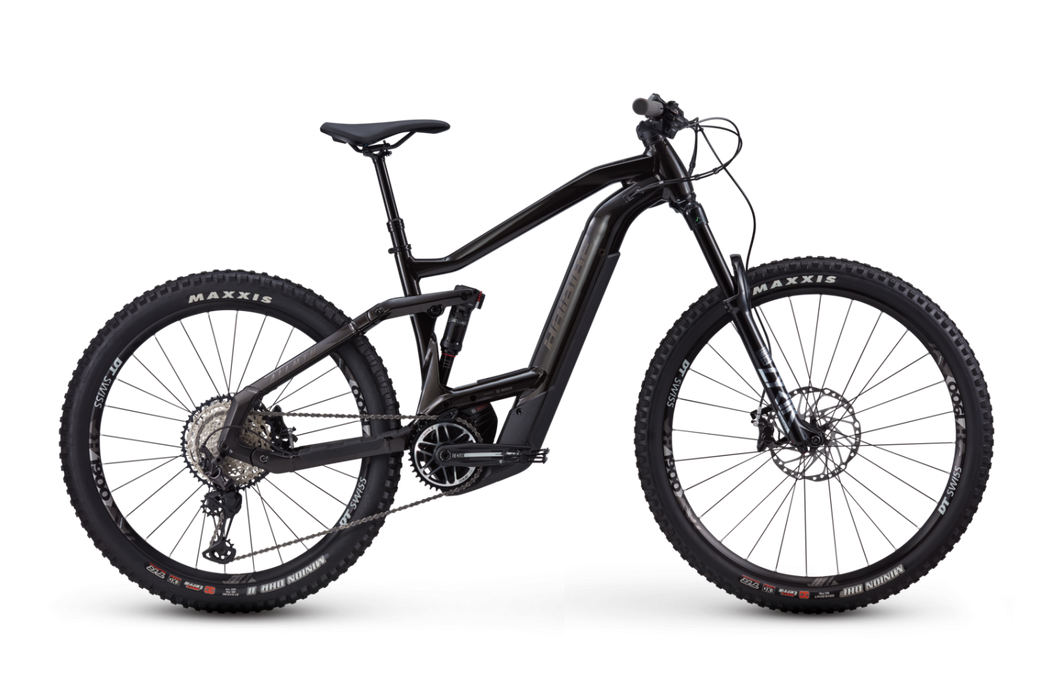

2021 Haibike AllMtn 5.0

With the All Mtn 5, you're ready for any challenge on the mountain: the more powerful 4th generation Bosch Performance CX motor ensures full e-Performance uphill and thanks to the integrated 625Wh battery, you're guaranteed not to run out of breath on long climbs. The 29" front wheel offers precision and comfortable rolling behavior, while the 27.5" Plus-size rear wheel in combination with the 85Nm motor provides the perfect traction for steep climbs. With its modern geometry, 160mm Rock-Shox suspension and Shimano Deore XT disc brakes, you can master even the most demanding trails with ease.

• • Bosch, Performance CX GEN4, 250W, 85 Nm

  • DISPLAY

    Bosch, Purion

  • BATTERY

    Bosch, Power Tube, 625 Wh

  • FRAME FAMILY

    Haibike, AllMtn, Aluminium 6061

  • FORK

    RockShox, Lyrik Ultimate RC, Air/oil, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • DAMPER

    RockShox, Deluxe Select Plus, Air, Trunnion Mount M8x30

  • CRANK ARM

    Haibike Components, The Crank ++, Aluminium

  • BRAKE (FRONT)

    Shimano, Deore XT M8020, 203 mm, 4-piston disc brake

  • BRAKE (REAR)

    Shimano, Deore XT M8020, 203 mm, 4-piston disc brake

  • TUBE

    Presta valve

  • CLAMPING RING

    Internal hexagon, 34.9 mm

  • REAR DERAILLEUR

    Shimano, Deore XT M8100 Shadow Plus

  • SHIFT LEVER

    Shimano, Deore SLX M7100, 12 Speed

  • BOTTOM BRACKET

    Integrated in the motor

  • SPROCKET

    Shimano, SLX M7100, 10 - 51 teeth

  • CHAIN

    Shimano, SLX M7100

  • CHAINRING

    Haibike Components, Aluminium, 38 teeth

  • CHAIN GUIDE

    Nylon dircetmount

  • BRAKE LEVER

    Shimano, Deore XT M8000, Aluminium

  • BRAKE DISC (FRONT)

    Shimano, RT 64LEC

  • BRAKE DISC (REAR)

    Shimano, RT EM600L

  • TYRE

    Maxxis, Minion DHF II, 63-622, 29" x 2.5"

  • WHEEL SET

    DT Swiss, H1900

  • HANDLEBAR

    Haibike Components, TheBar +++ Gravity , 780 mm

  • GRIPS

    Haibike, MTB grips

  • STEM

    Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm

  • HEADSET

    Feimin, A-Head Tapered, Aluminium, Cartridge

  • SADDLE

    Selle Royal Vivo 1216HRN

  • SEAT POST

    Haibike Components, Dropper-Post Remote 31.6, Dropper, Aluminium

  • PEDALS

    Freeridepedal , Aluminium, with Reflector,

  • PERMITTED TOTAL WEIGHT

    120.0 kg

  • TYRE (REAR)

    Maxxis, Minion DHR II, 71-584, 27.5" x 2.8"
