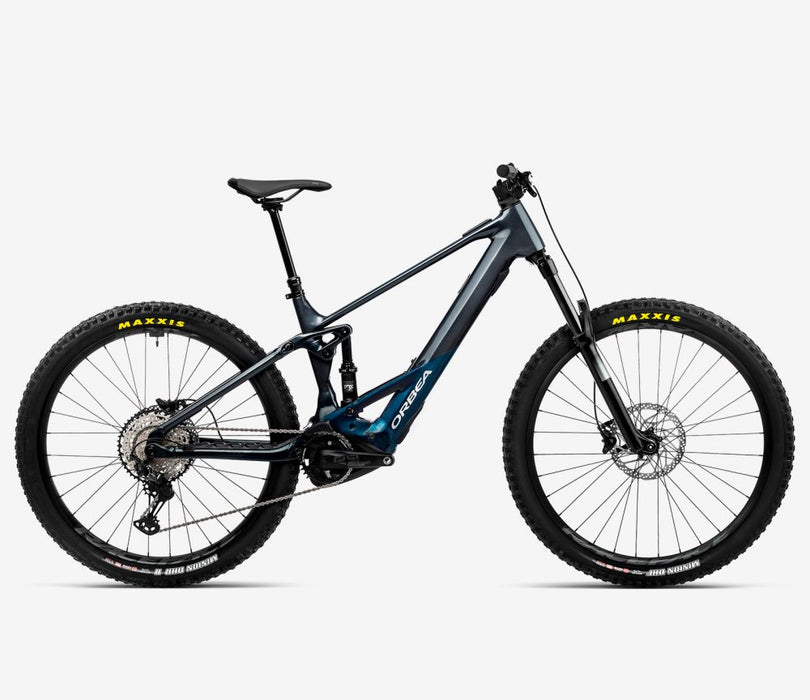

2023 Orbea Wild H30

by Orbea
SKU N65905V8
Save 20% Save 20%
Original price $5,699.00
Original price $5,699.00 - Original price $5,699.00
Original price $5,699.00
Current price $4,550.00
$4,550.00 - $4,550.00
Current price $4,550.00
Size: Medium
Color: Basalt Grey - Dark Teal
Description

TAKE A RIDE ON THE WILD SIDE

E-Bikes remove many of the barriers that keep some riders from experiencing the joy of being on two wheels. These bikes don't have a throttle but will provide pedal assistance so you can conquer the toughest terrain out there. The Orbea Wild H30 20mph E-Bike is a fun and capable machine that enhances your skills while it extends your range. The hydroformed aluminum frame uses 160mm of travel on the front and rear and features a slacker and lower geometry for more aggressive riding. The Bosch Performance Line CX motor provides up to 20 mph of pedal assistance so you can conquer the climbs and difficult terrain. The frame features internal cable routing, integrated frame and chainstay protection, and a chainguide.

The H30 version of the Orbea Wild E-Bike comes with a Shimano Deore/XT 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through demanding terrain much easier. Shimano MT410 hydraulic disc brakes provide highly-reliable stopping power so you can descend under control. Race Face AR 30c tubeless-ready rims are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC20 Dropper Post, you'll be able to quickly lift and lower your saddle with the press of a lever.

SPECIFICATIONS


FRAME

Orbea Wild Hydro 2023, 160mm travel, 29" wheels, Concentric Boost 12x148

SHOCK

Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm

FORK

RockShox 35 Silver TK Q15x110 Solo Air 160mm

HEADSET

FSA 1-1/2" Integrated Aluminium Cup

CHAINRING

e*thirteen e*spec Direct Mount 34T Boost

CRANK

e*thirteen Plus Alu

SHIFTERS

Shimano Deore M6100

CASSETTE

Shimano CS-M6100 10-51t 12-Speed

REAR DERAILLEUR

Shimano XT M8100 SGS Shadow Plus

CHAIN

Shimano M6100

CHAINGUIDE

e*thirteen Plus Bosch CX Gen4 32-38t

HANDLEBAR

OC Mountain Control MC30, Rise20, Width 800

STEM

OC Mountain Control MC20, 0ยบ

BRAKES

Shimano MT410 Hydraulic Disc

WHEELS

Race Face AR 30c Tubeless Ready

TYRES

Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR

TYRES

Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR

SEATPOST

OC Mountain Control MC20, 31.6mm, Dropper

SEATPOST LEVER

OC Horizontal

SADDLE

Selle Royal Vivo 145x269mm

MOTOR

BOSCH Performance Line CX BDU3741

BATTERY

BOSCH Powertube 625Wh Horizontal

DISPLAY

BOSCH System Controller BCR3100

CHARGER

Bosch Charger 4A (110V) BPC3410

REMOTE

BOSCH Mini Remote BRC3300
