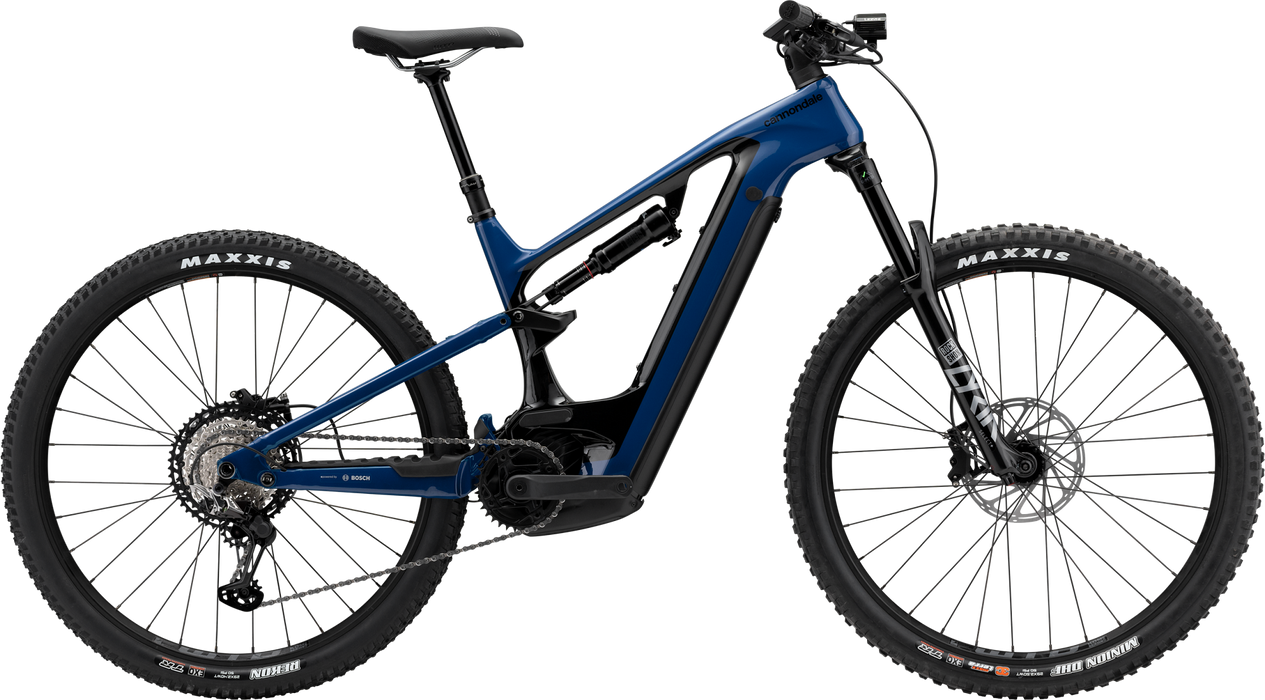

Cannondale Moterra Neo Carbon 1

Cannondale Moterra Neo Carbon 1

by cannondale
SKU
Save 36% Save 36%
$8,600.00
$8,600.00 - $8,600.00
$8,600.00
$5,499.00
$5,499.00 - $5,499.00
$5,499.00
Size: Large
Motor: Bosch
Suspension: Full
Description

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives

Challenging trails, Up and down hills, Out in the elements

What it's built for

Handling, Traction, Efficiency, Durability

Highlights

  • Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
  • Bosch SmartSystem -750wh battery & Performance CX motor
  • Shimano XTR/XT 12-speed drivetrain

Specs

FRAMESET

  • Frame
    Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
  • Fork
    RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
  • Headset
    Acros integrated sealed bearing, tapered
  • Rear Shock
    RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-SYSTEM

  • Drive Unit
    Bosch Performance Line CX 250W
  • Battery
    Bosch PowerTube 750Wh
  • Charger
    Bosch 4A
  • Display
    Bosch Kiox 300 w/ LED remote

DRIVETRAIN

  • Rear Derailleur
    Shimano XTR
  • Shifters
    Shimano XT, 12-speed
  • Chain
    Shimano XT, 12-speed
  • Crank
    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear Cogs
    Shimano XT, 10-51, 12-speed

BRAKES

  • Brakes
    Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
  • Brake Levers
    Shimano XT hydraulic disc

WHEELS

  • Rims
    WTB KOM Trail i30 TCS, 32h, tubeless ready
  • Spokes
    DT Swiss Champion
  • Tires
    (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
  • Tire Size
    2.6
  • Wheel Size
    29
  • Hubs
    (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
  • Front Tire
    Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready
  • Rear Tire
    Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

COMPONENTS

  • Handlebar
    HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
  • Stem
    Cannondale 2, 6061 Alloy, 35mm, 0°
  • Grips
    Fabric FunGuy
  • Saddle
    Fabric Scoop Shallow Elite, cro-mo rails
  • Seatpost
    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm
