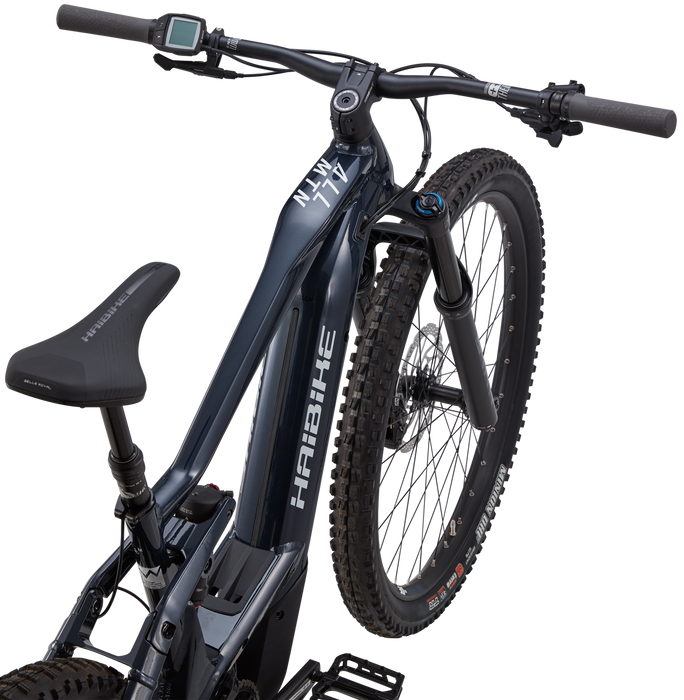

2021 Haibike AllMtn 3

An all-round e-mountain bike for every terrain: the XDURO All Mtn 3.0! 150mm travel, full suspension, and a powerful Bosch Performance CX motor make for top performance even over challenging terrain. The 650 Wh battery expands your EMTB experience to new levels. Different wheel sizes round off the package: 29" wheels at the front offer precise and comfortable rollover behavior, while the 27.5" wheels at the back give the eMTB perfect traction to master the steepest uphill and downhill slopes

• Bosch, Performance CX GEN4, 250W, 85 Nm

  DISPLAY
  Bosch, Purion

  BATTERY
  Bosch, Power Tube, 625 Wh

  FRAME FAMILY
  Haibike, AllMtn, Aluminium 6061

  FORK
  RockShox, Lyrik Ultimate RC, Air/oil, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  DAMPER
  RockShox, Deluxe Select Plus, Air, Trunnion Mount M8x30

  CRANK ARM
  Haibike Components, The Crank ++, Aluminium

  BRAKE (FRONT)
  Shimano, Deore XT M8020, 203 mm, 4-piston disc brake

  BRAKE (REAR)
  Shimano, Deore XT M8020, 203 mm, 4-piston disc brake

  TUBE
  Presta valve

  CLAMPING RING
  Internal hexagon, 34.9 mm

  REAR DERAILLEUR
  Shimano, Deore XT M8100 Shadow Plus

  SHIFT LEVER
  Shimano, Deore SLX M7100, 12 Speed

  BOTTOM BRACKET
  Integrated in the motor

  SPROCKET
  Shimano, SLX M7100, 10 - 51 teeth

  CHAIN
  Shimano, SLX M7100

  CHAINRING
  Haibike Components, Aluminium, 38 teeth

  CHAIN GUIDE
  Nylon dircetmount

  BRAKE LEVER
  Shimano, Deore XT M8000, Aluminium

  BRAKE DISC (FRONT)
  Shimano, RT 64LEC

  BRAKE DISC (REAR)
  Shimano, RT EM600L

  TYRE
  Maxxis, Minion DHF II, 63-622, 29" x 2.5"

  WHEEL SET
  DT Swiss, H1900

  HANDLEBAR
  Haibike Components, TheBar +++ Gravity , 780 mm

  GRIPS
  Haibike, MTB grips

  STEM
  Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm

  HEADSET
  Feimin, A-Head Tapered, Aluminium, Cartridge

  SADDLE
  Selle Royal Vivo 1216HRN

  SEAT POST
  Haibike Components, Dropper-Post Remote 31.6, Dropper, Aluminium

  PEDALS
  Freeridepedal , Aluminium, with Reflector,

  PERMITTED TOTAL WEIGHT
  120.0 kg

  TYRE (REAR)
  Maxxis, Minion DHR II, 71-584, 27.5" x 2.8"
