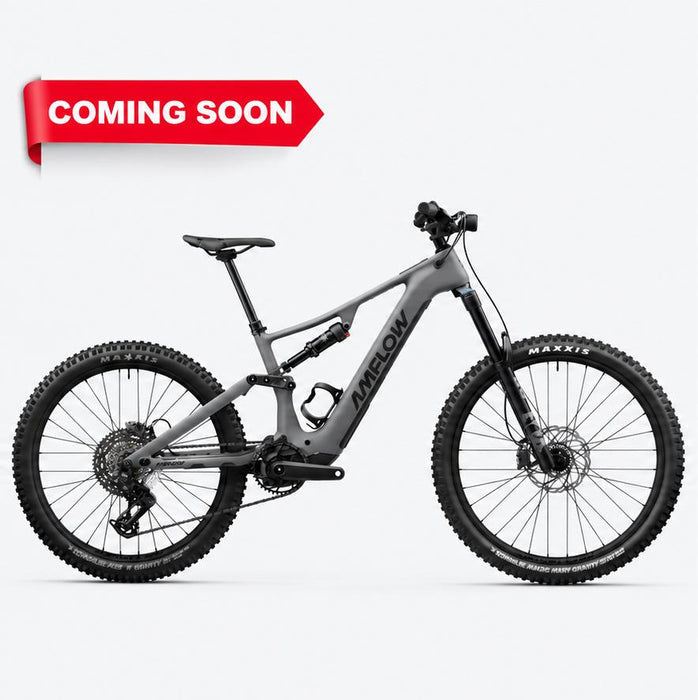

Amflow PR Carbon Pro

Amflow PR — Full-Power Carbon eMTB

The Amflow PR is a long-travel carbon electric mountain bike built around the Avinox drive system and an 800Wh removable battery. Its adjustable chassis supports up to 40 geometry combinations, letting riders tune head angle, bottom-bracket height, and chainstay length for different terrain and riding styles.

Frame & Geometry

• Full-carbon Amflow PR frame
• 40 adjustable geometry configurations
• Compatible with 27.5" and 29" rear wheels
• Default head tube angle: 64.5°
• Chainstay adjustment: 440–452 mm
• Bottom bracket height: 349.5 mm
• Sizes: M, L, XL, XXL

Drive System & Battery

• Avinox M2S Drive Unit
• 130 N·m nominal torque / 150 N·m peak torque
• Avinox 2-inch OLED Control Display
• 800Wh removable Avinox battery
• Avinox wireless controllers, left and right
• 12A / 508W fast charger

Suspension

• Fork: FOX 36 Performance, 160 mm travel, GRIP damper, Sweep/LSR adjustment, 15×110 mm, 44 mm offset
• Rear Shock: FOX Float X Performance, 2-position lever, custom tune, LSR adjustment, 210×55 mm air shock

Drivetrain

• SRAM S1000 Eagle Transmission rear derailleur
• SRAM AXS Pod Controller
• SRAM XS-1270 Eagle Transmission 10–52T cassette
• SRAM Eagle 70 Transmission Flattop chain
• SRAM Eagle Transmission DM 38T chainring for Avinox
• Avinox SL crank — 155 mm M/L, 160 mm XL/XXL

Brakes, Wheels & Tires

• Magura Gustav Pro hydraulic disc brakes, 4-piston
• Magura Sensor Rotors, 203 mm
• Amflow XMA-30 alloy mullet wheelset, tubeless ready
• Front: 29×2.5 Schwalbe Magic Mary Radial, Gravity Pro, Ultra Soft
• Rear: 27.5×2.5 Schwalbe Albert Radial, Gravity Pro, Addix Soft

Cockpit & Dropper

• Amflow Enduro alloy handlebar, 800 mm width, 40 mm rise, 35 mm clamp
• Amflow Mountain Bike Split Stem, 35 mm
• Amflow Enduro Grip 2 lock-on grips
• Dropper travel: 190 mm (M), 210 mm (L/XL), 230 mm (XXL), with travel-reducing shims

Color: Basalt Grey
