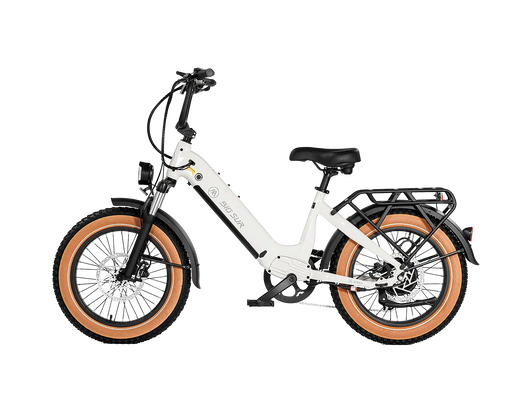

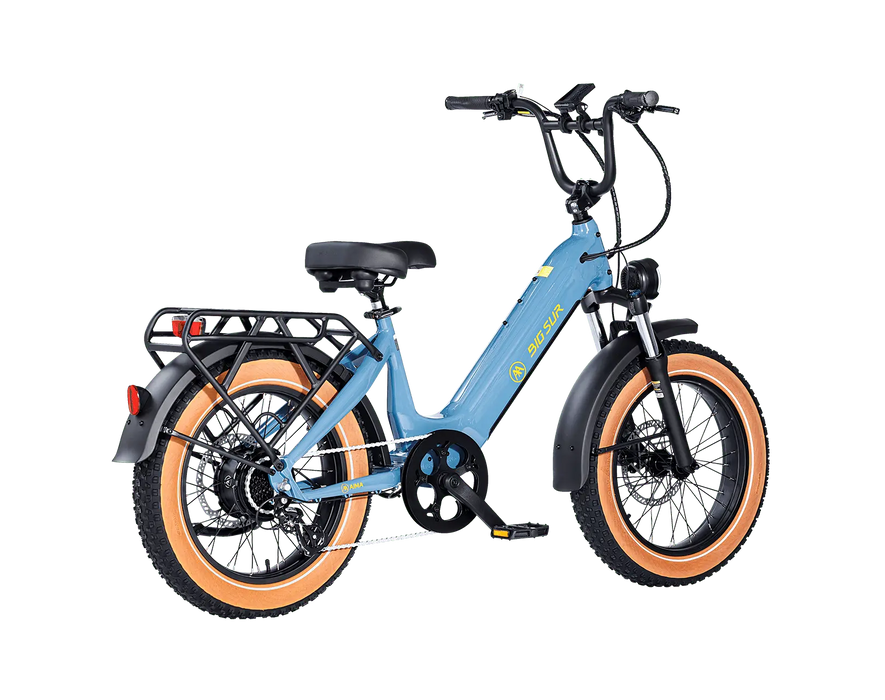

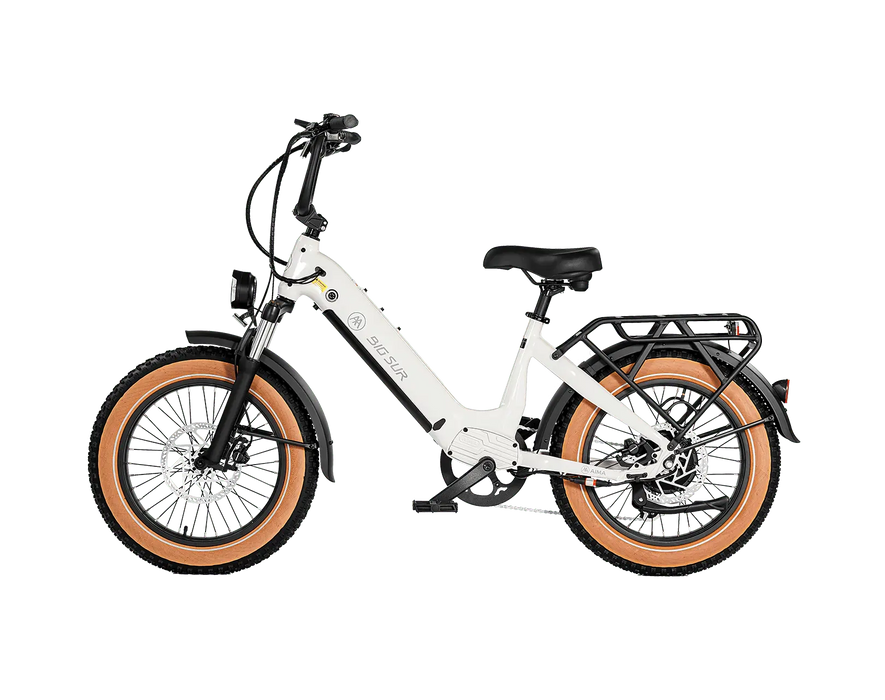

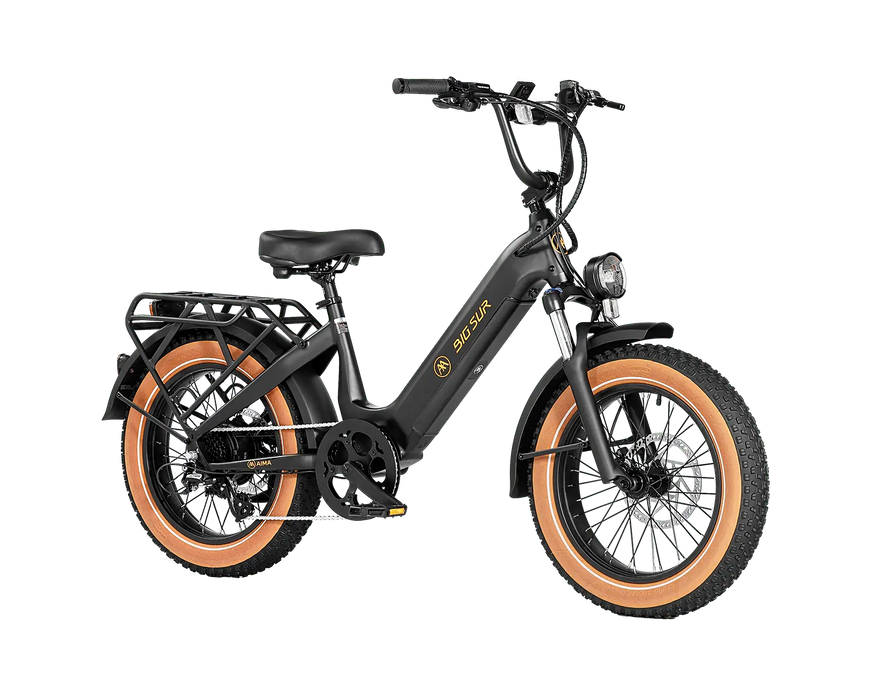

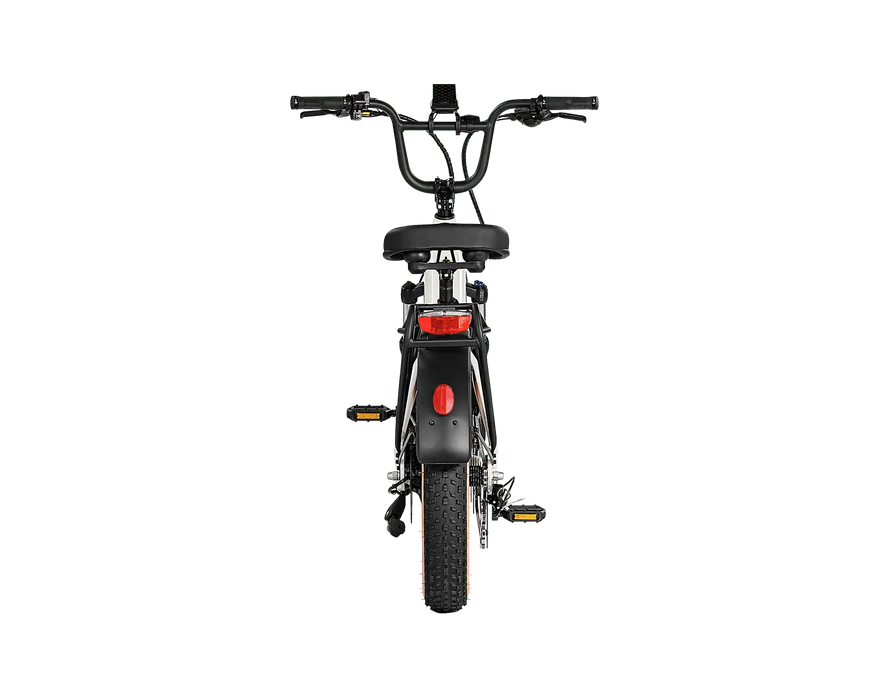

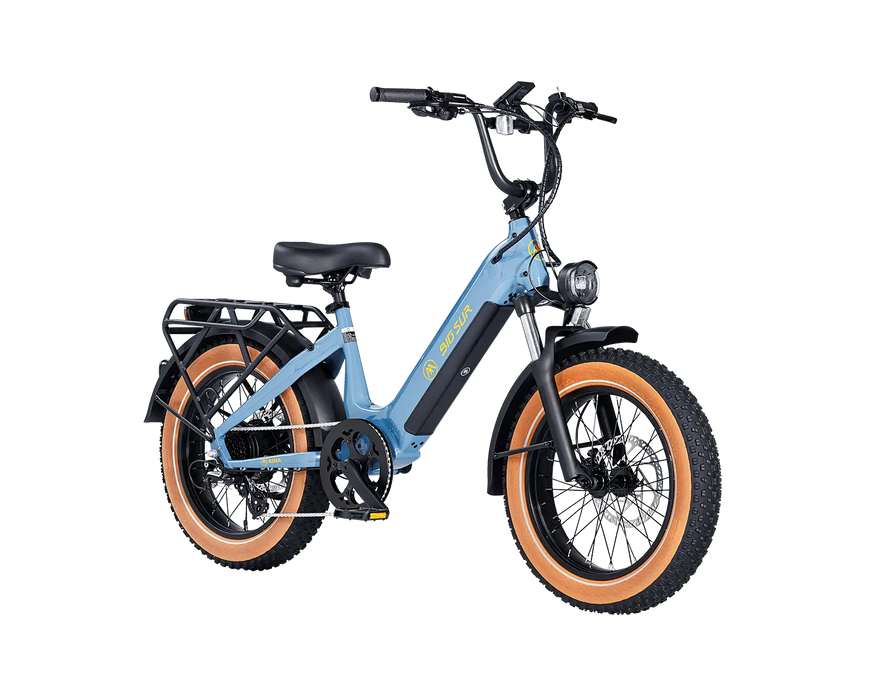

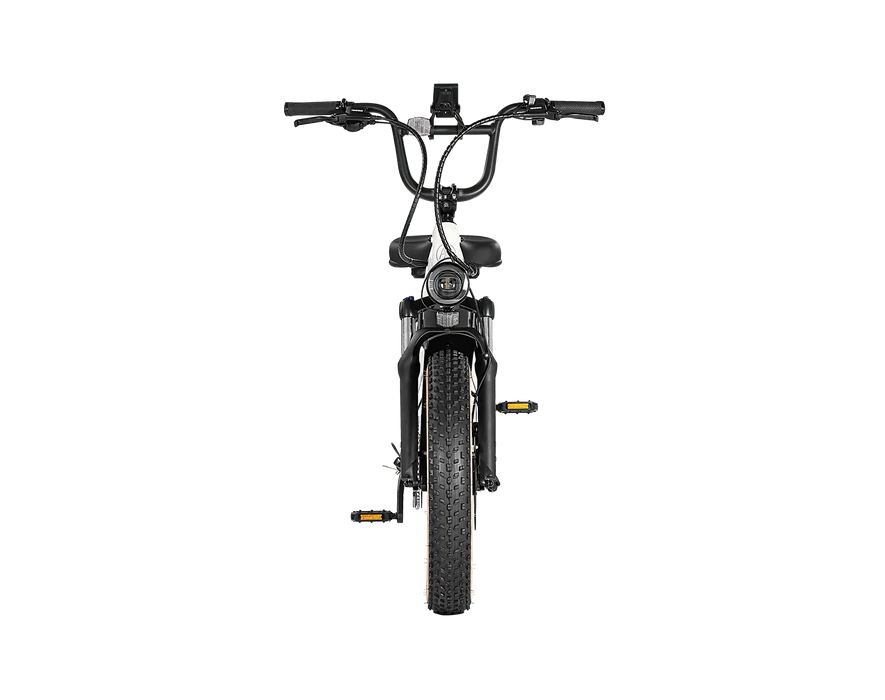

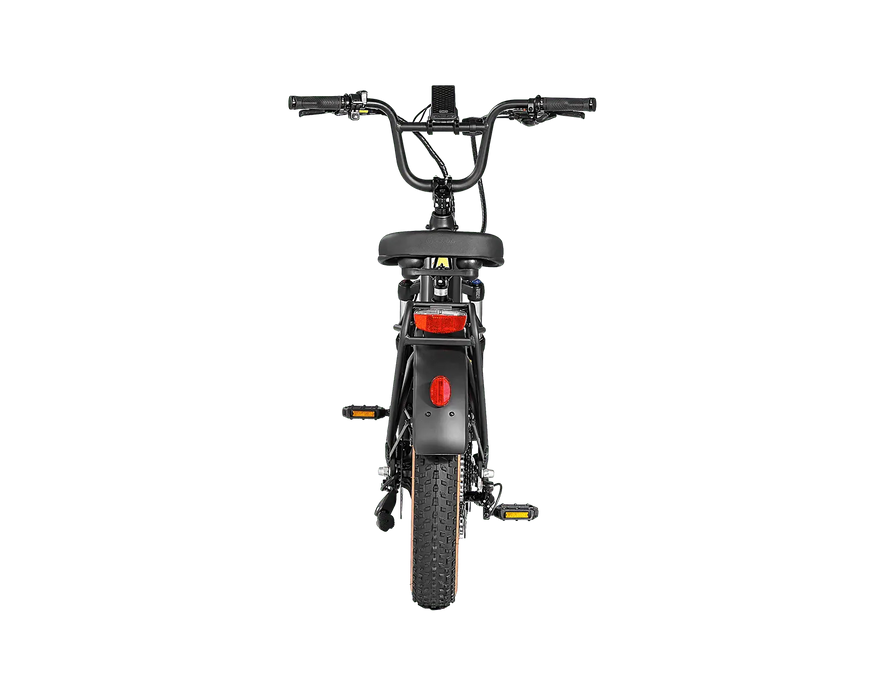

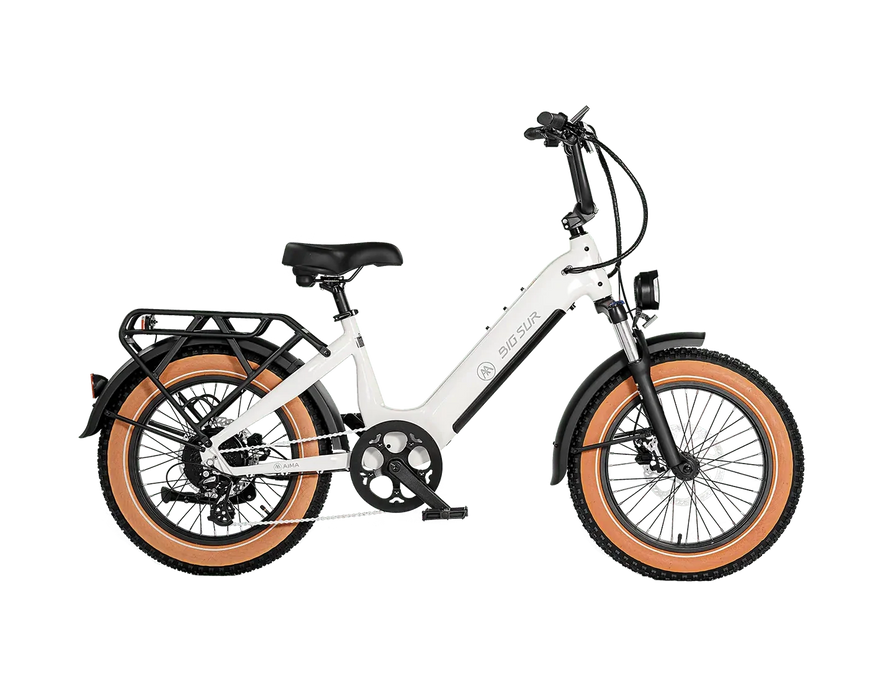

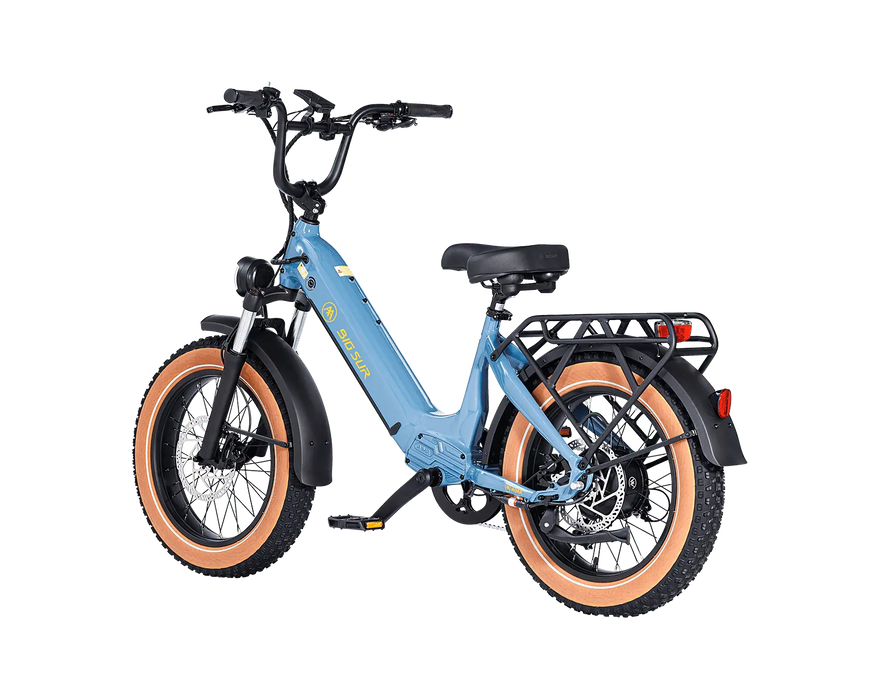

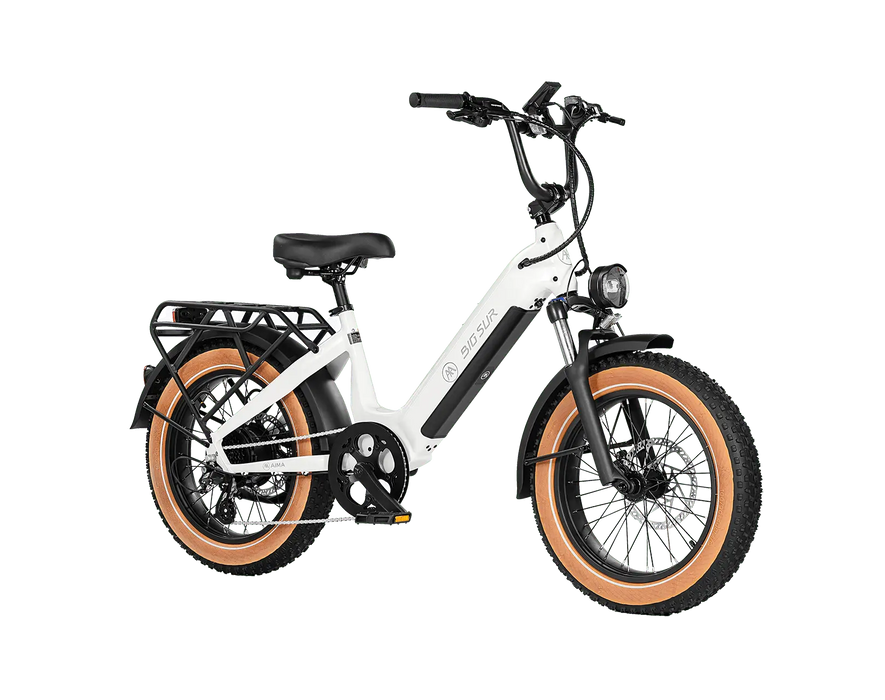

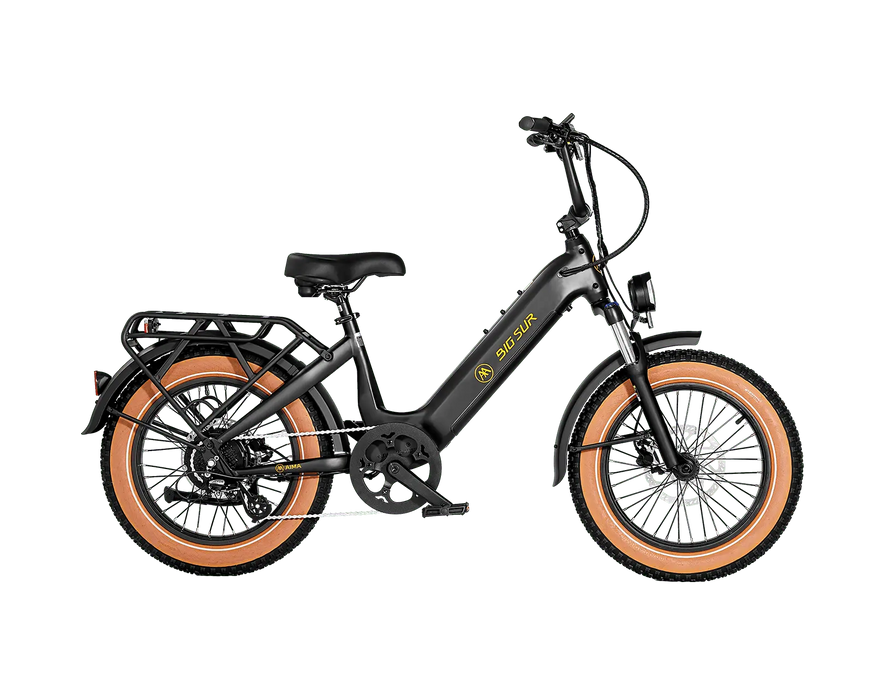

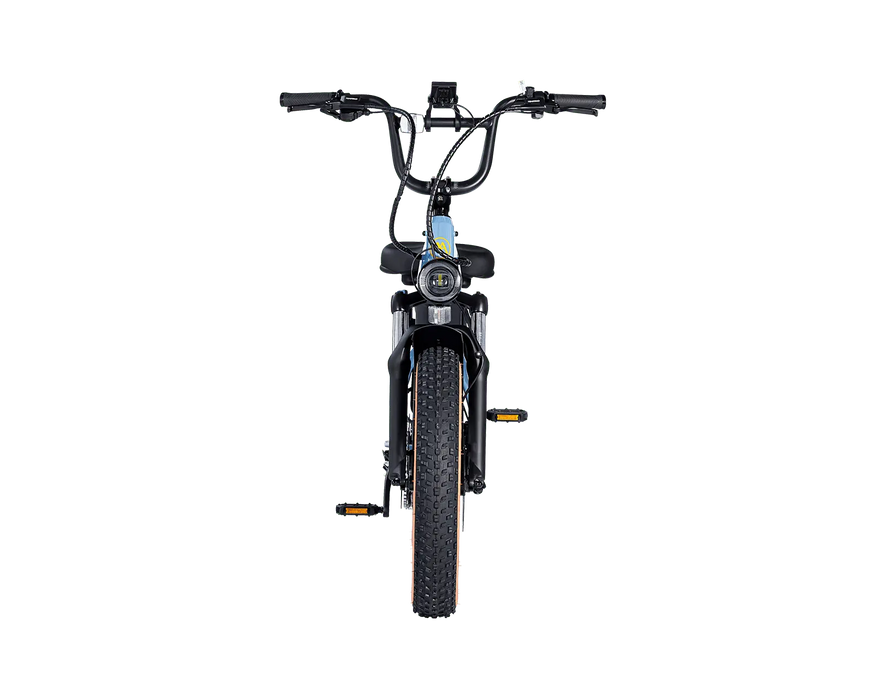

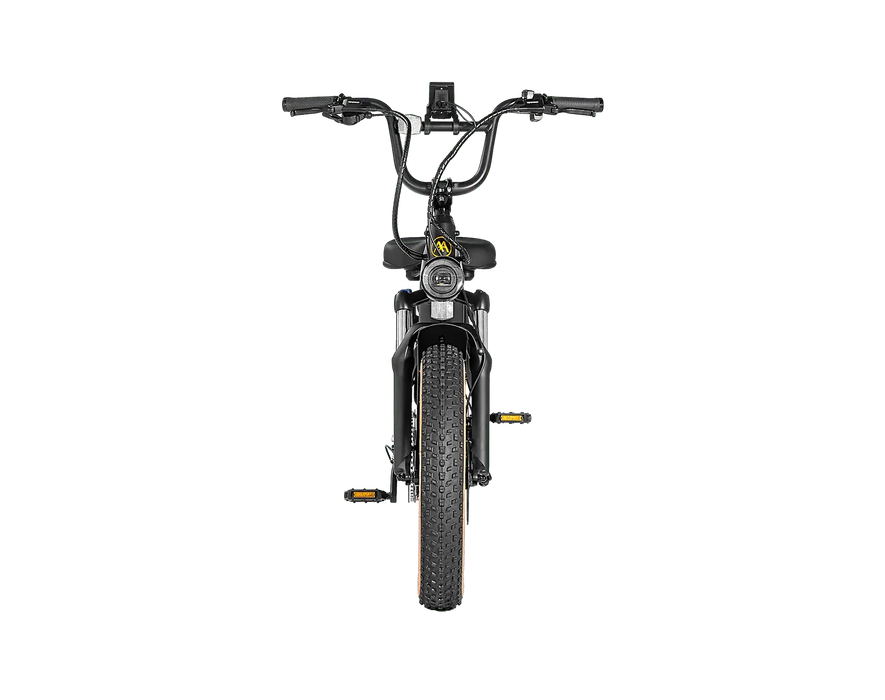

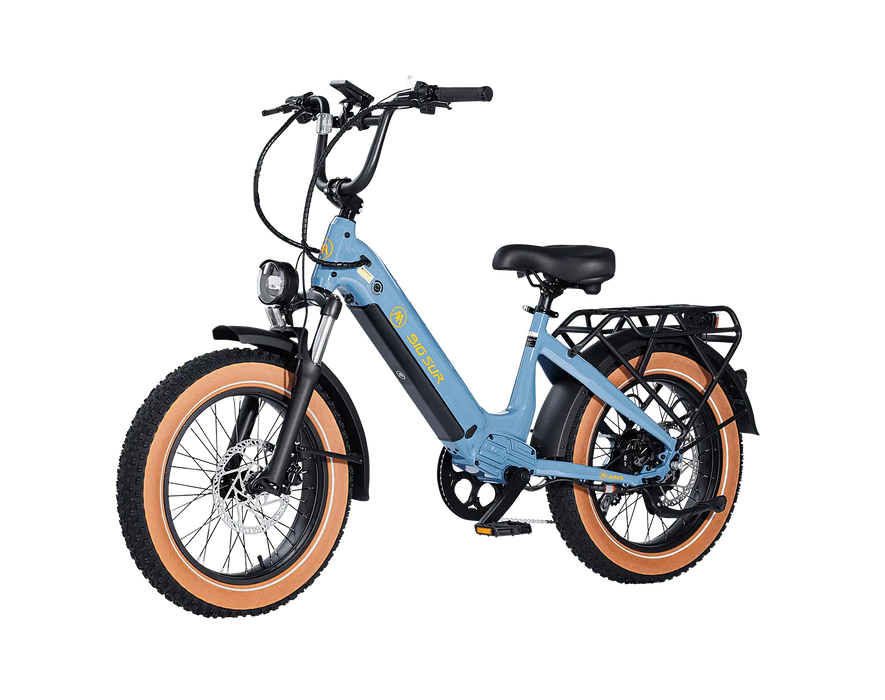

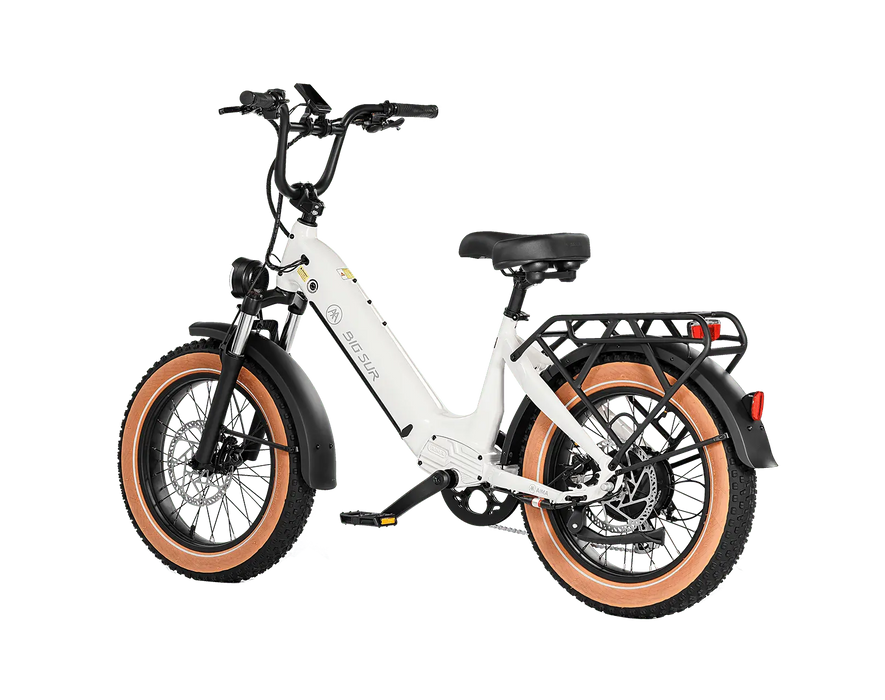

AMIA Big Sur Sport Ebike

Meet the AIMA Big Sur Sport, a compact fat-tire e-bike that delivers the power and capability of the Big Sur in a more agile, approachable design. Its 750W BAFANG motor, 20-by-4-inch tires, hydraulic disc brakes, and comfortable riding position make it ideal for city streets, gravel paths, campground roads, and everyday adventures.

Specifications

Motor: 750W BAFANG rear-hub motor
Peak Power: 1,200W
Maximum Torque: 85 Nm
Throttle: Throttle on demand
Pedal Sensor: Torque sensor
Pedal Assist: 5 levels
Top Speed: 20 mph throttle; up to 28 mph pedal assist where permitted
Display: BAFANG C010 E-System TFT display
Drivetrain: Shimano 7-speed
Cassette: 11–28T, 7-speed
Chainring: 52T
Battery: Removable 48V 15Ah LG battery
Range: Up to 60 miles
Charging Time: Approximately 5 hours
Lights: Front and rear lights
Horn: Included
Certification: UL 2849
Frame: 6061 single-butted aluminum alloy
Fork: ZOOM suspension fork with lockout
Brakes: Tektro hydraulic disc brakes with 203mm rotors
Tires: 20" × 4.0" fat tires
Rims: Double-wall aluminum alloy
Spokes: Black stainless steel
Tubes: Butyl rubber
Front Hub: Aluminum alloy disc hub
Saddle: AIMA enlarged comfort saddle
Seatpost: 30.9mm aluminum alloy
Seat Clamp: 34.9mm quick-release
Stem: Threadless
Handlebars: 720mm aluminum alloy
Grips: Ergonomic comfort grips
Headset: Sealed-bearing headset
Pedals: Alloy platform pedals
Kickstand: Aluminum alloy
Weight: 74 lb.
Maximum Payload: 400 lb.
Dimensions: 1,770 × 720 × 1,130mm
Recommended Rider Height: 5'0"–6'3"
Top Tube: 630mm
Reach: 440mm
Head Tube Length: 160mm
Standover Height: 432mm
Wheelbase: 1,161mm
Overall Length: 1,770mm
Minimum Saddle Height: 775mm
Maximum Saddle Height: 927mm
Colors: Ivory White, Matte Black, and Sea Breeze Blue
Warranty: Two years
