Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3
Model

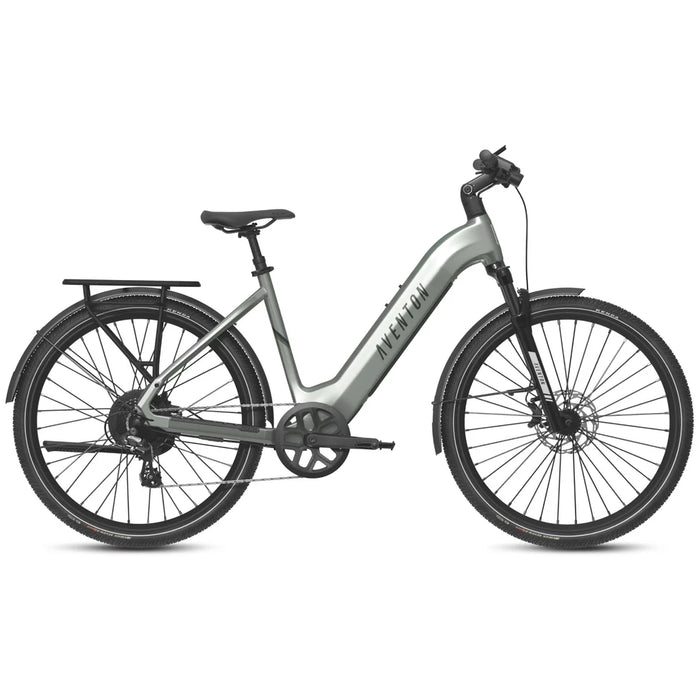

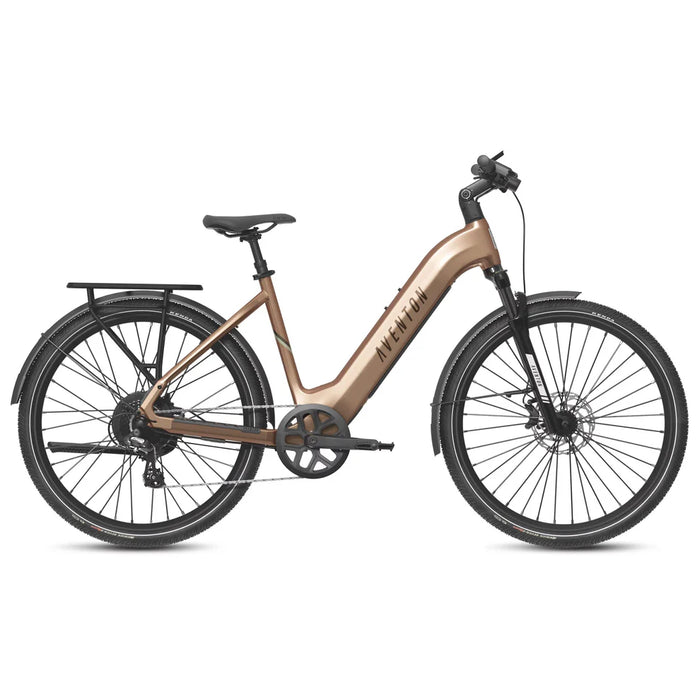

Level 3 Step Through Ebike
Total Weight Limit
300 lbs
Rider Height
4'11" - 6'1"
Ebike Class
Class 2 Ebike
Battery Safety Certifications
Pedal Assist
3 Levels (with Ride Tune Customization)
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Wheelset
Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System
Motor
36V, 500W (sustained), 864W (peak)
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Brakes
Front Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crankset
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals
9/16" Composite Platform
Cockpit
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed Bearing Headset
