Cannondale Moterra 3

Cannondale Moterra 3

by Cannondale
SKU
$6,599.00 - $6,599.00
$6,599.00
$6,599.00 - $6,599.00
$6,599.00
Size: Medium
Color: Chalk
Description

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

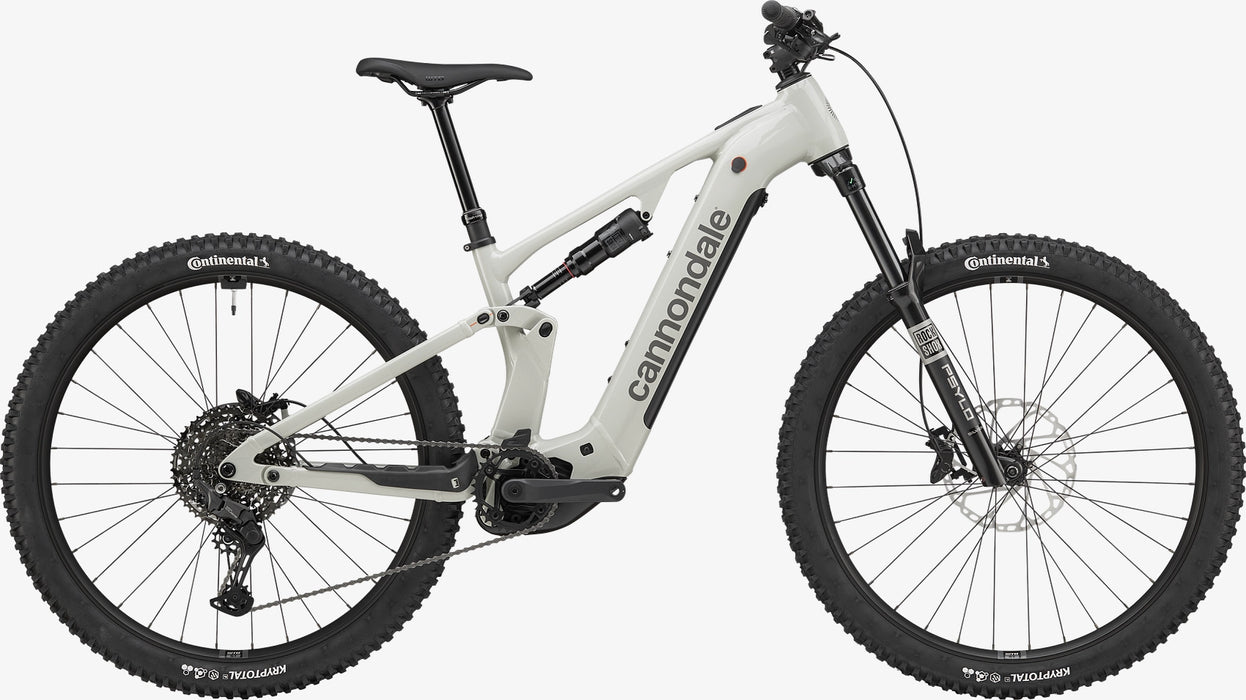

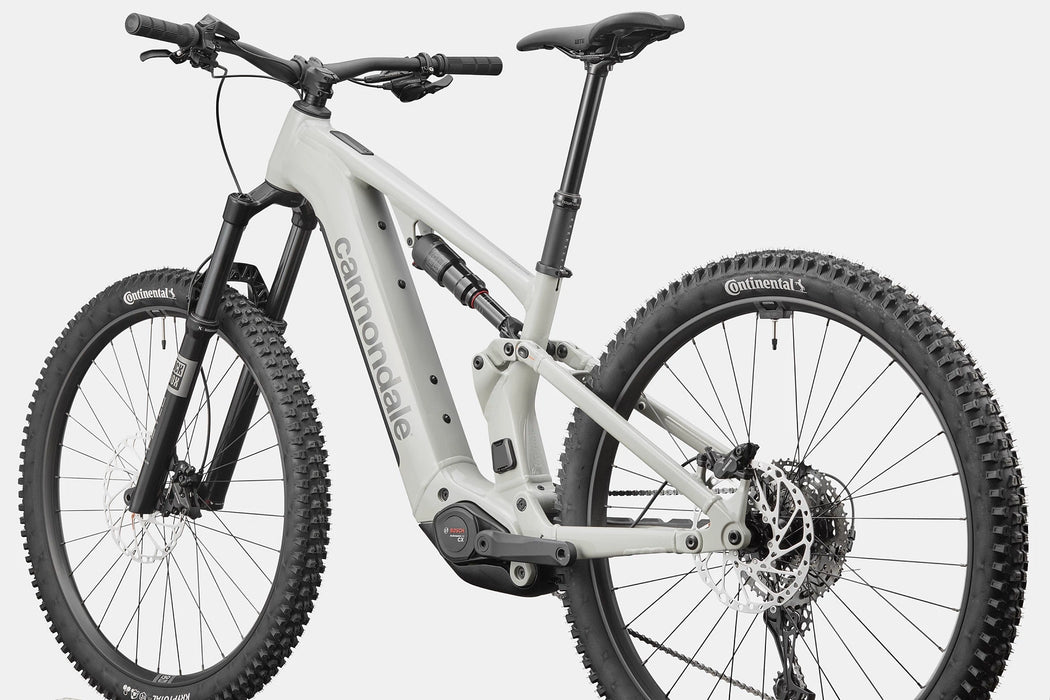

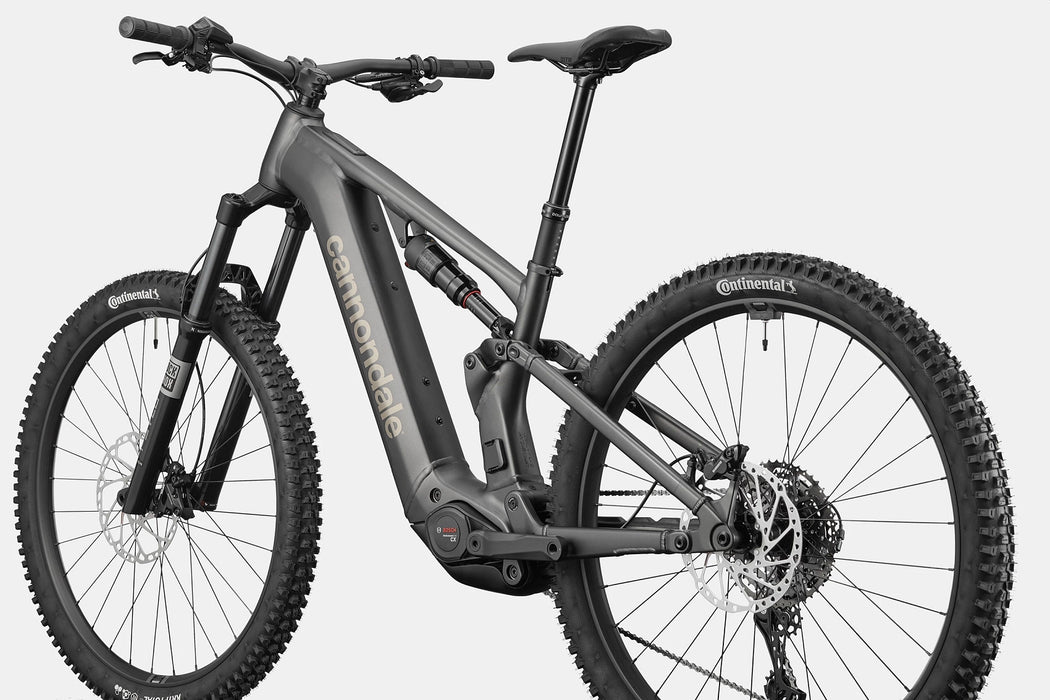

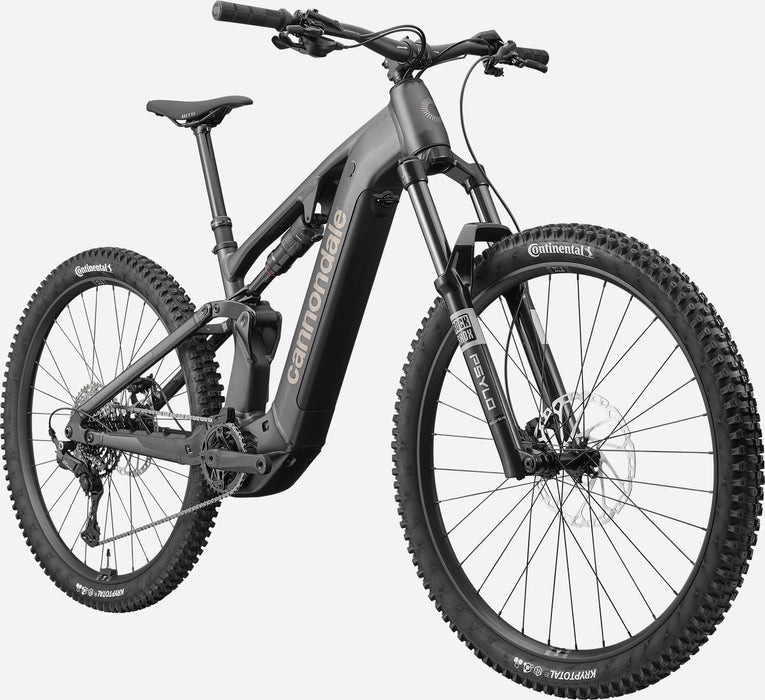

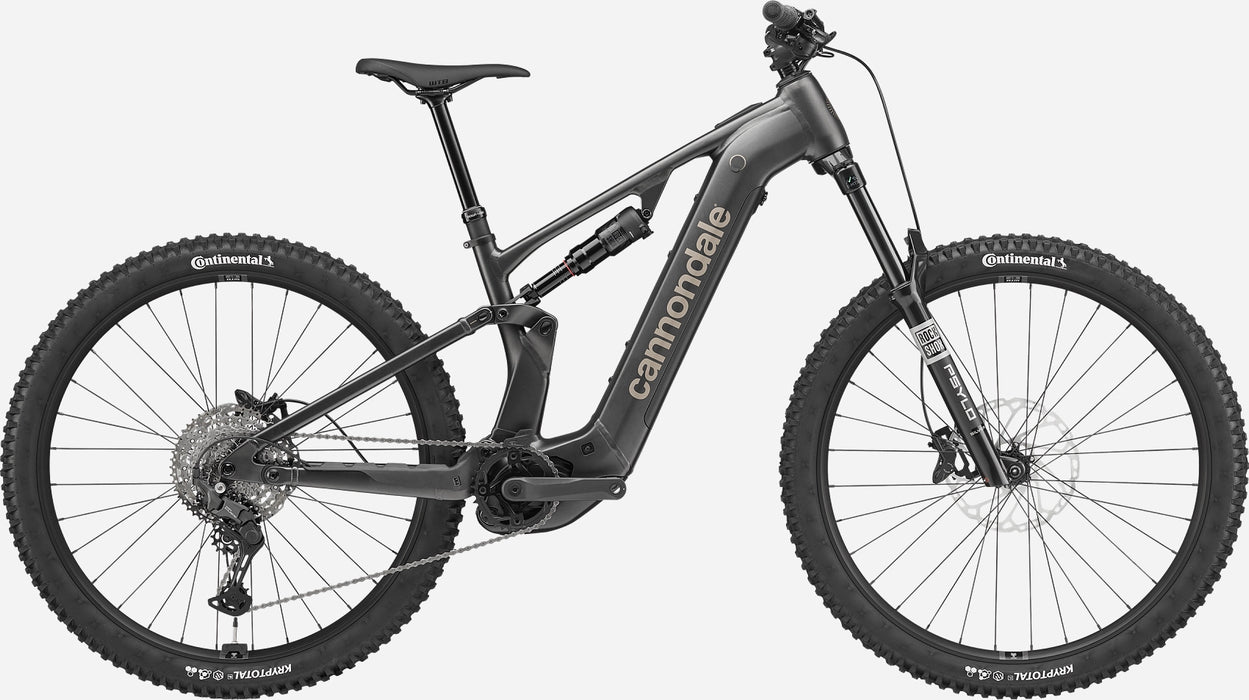

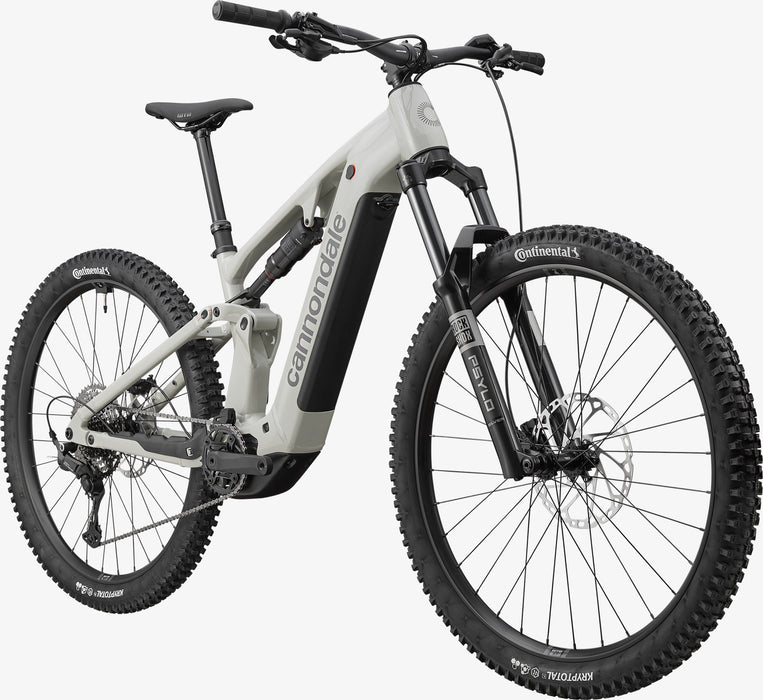

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
  • Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power

Specs

Details

  • Platform
    Moterra Neo
  • Model Name
    Moterra 3
  • Model Code
    C65224U

Frameset

  • Frame
    Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
  • Fork
    RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
  • Headset
    Acros ICR, 1.5" to 1.8", sealed bearings
  • Rear Shock
    RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm

E-System

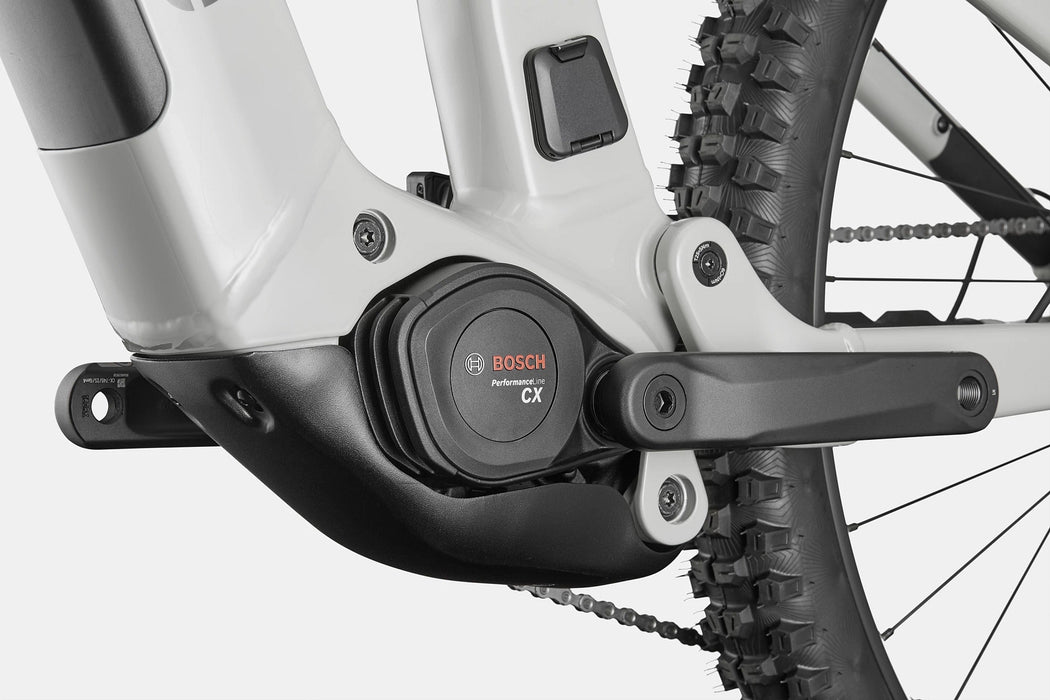

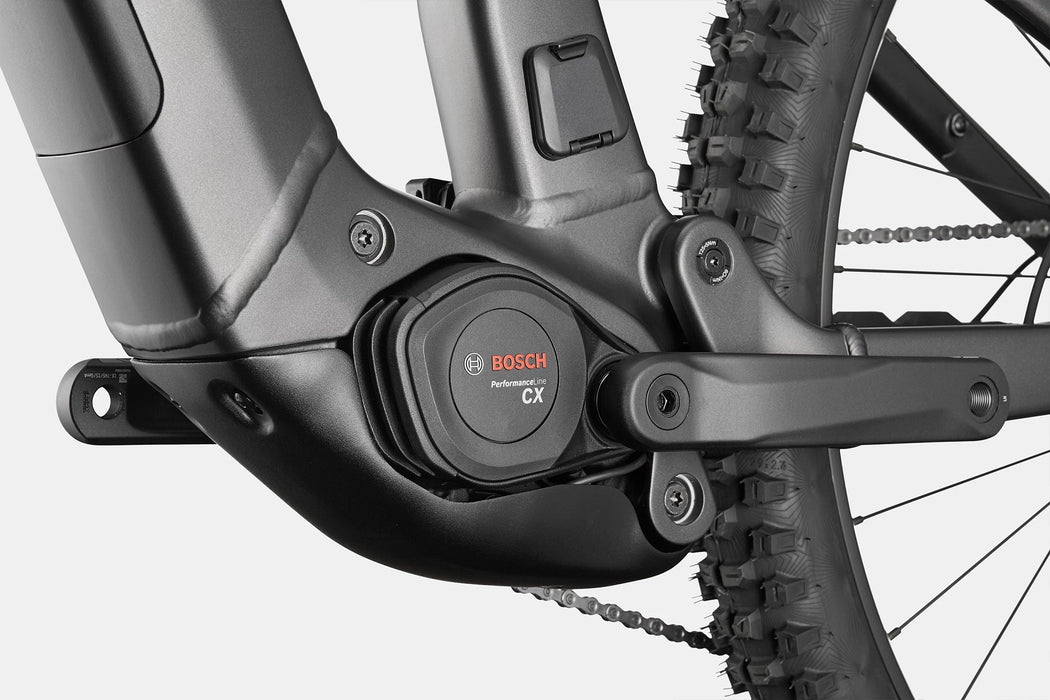

  • Drive Unit
    Bosch Performance Line CX
  • Battery
    Bosch PowerTube, 800Wh
  • Charger
    Bosch 4A

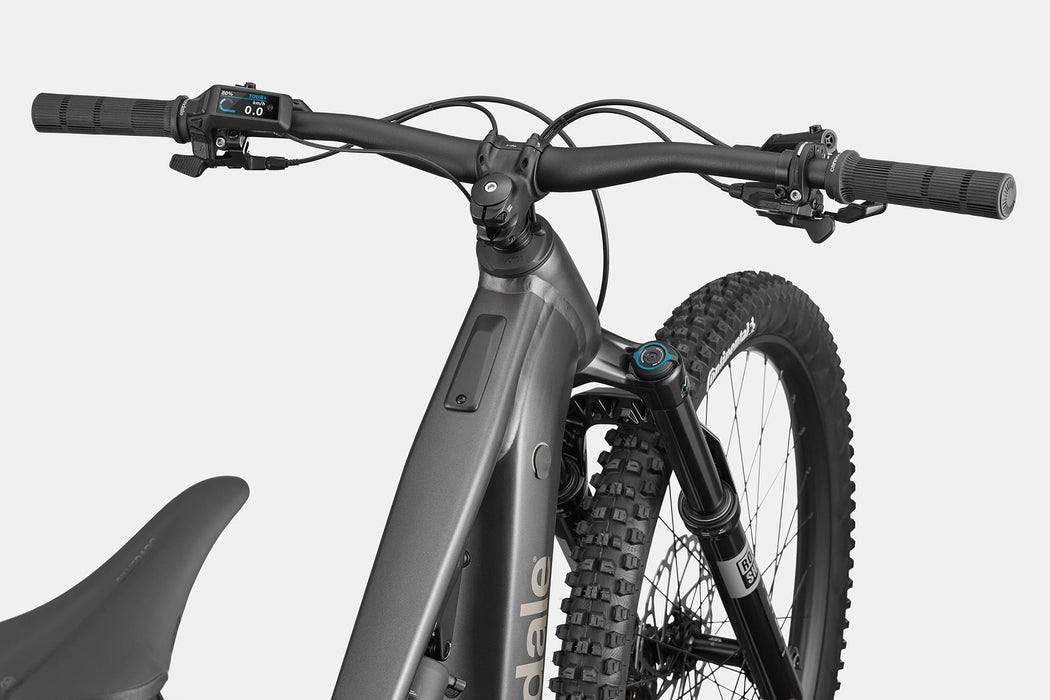

  • Display
    Bosch Purion 200

Drivetrain

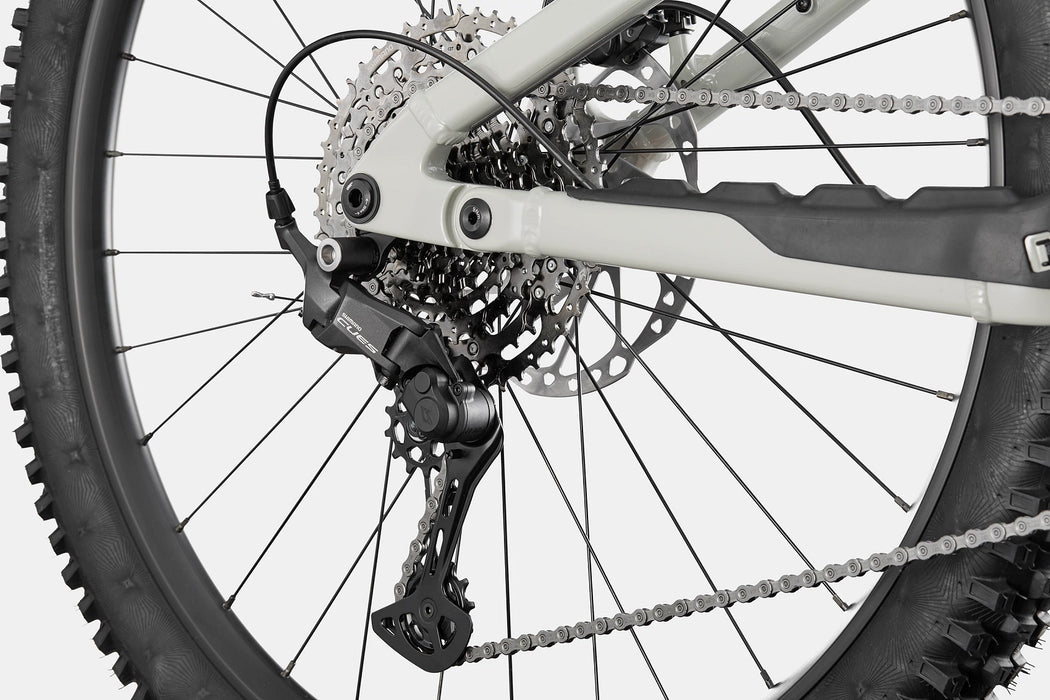

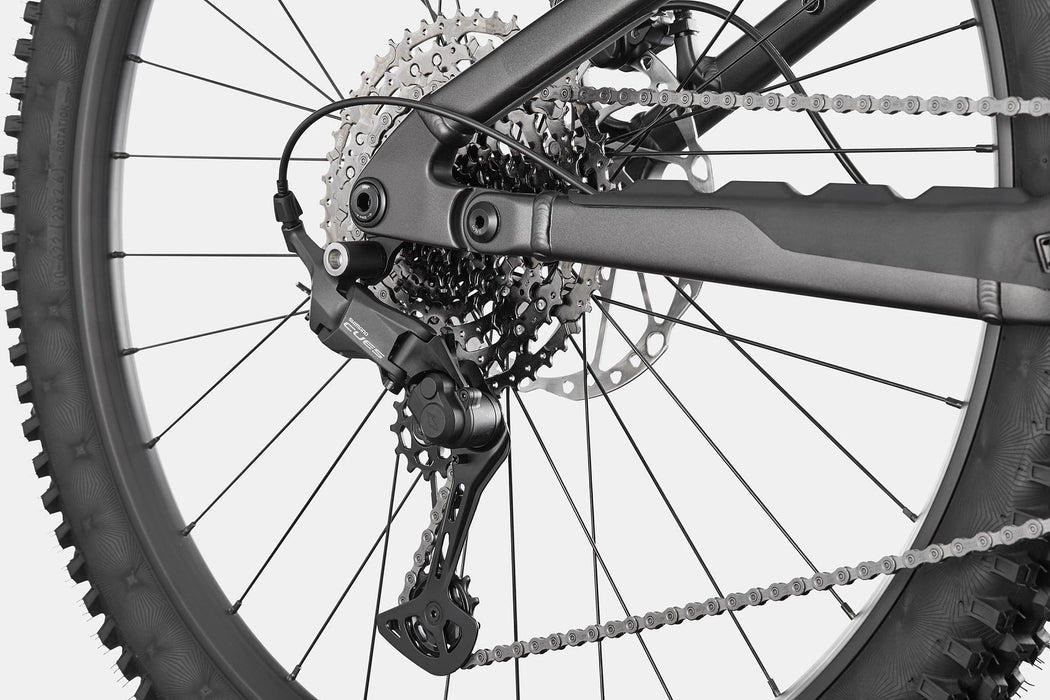

  • Rear Derailleur
    Shimano CUES U6000, LinkGlide
  • Shifters
    Shimano CUES U6000, 11-speed, LinkGlide
  • Chain
    Shimano LG500, LinkGlide, 11-speed
  • Crank
    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear Cogs
    Shimano CUES LG400, LinkGlide, 11-50, 11-speed

Brakes

  • Brakes
    Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
  • Brake Levers
    Shimano MT501 hydraulic disc

Wheels

  • Rims
    WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
  • Spokes
    DT Swiss Champion 2.0
  • Tire Size
    2.4
  • Wheel Size
    29
  • Hubs
    (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
  • Tires
    (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Components

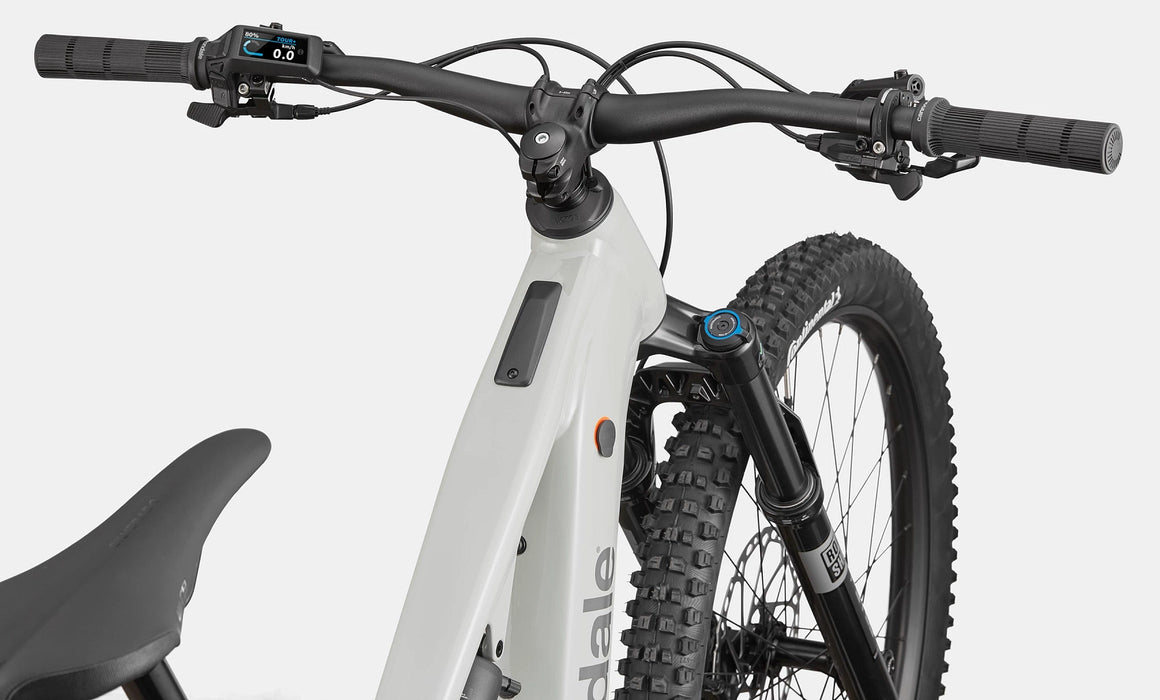

  • Handlebar
    Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
  • Stem
    Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
  • Grips
    Cannondale TaperRidge
  • Saddle
    WTB Silverado Medium
  • Seatpost
    Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

  • Extra 1
    Bosch PowerMore range extender compatible
