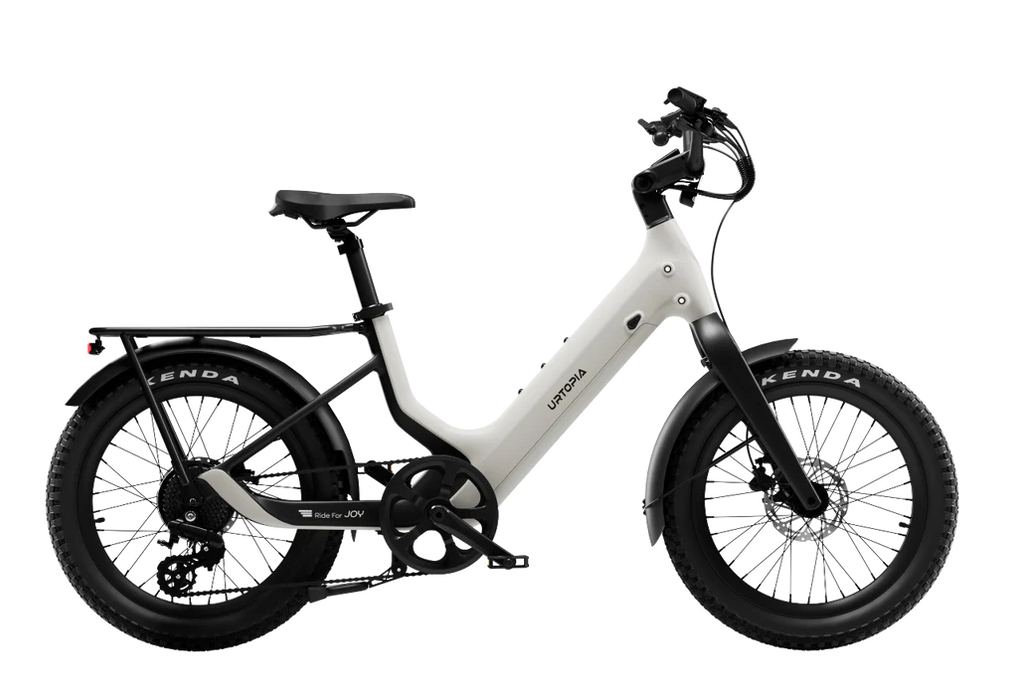

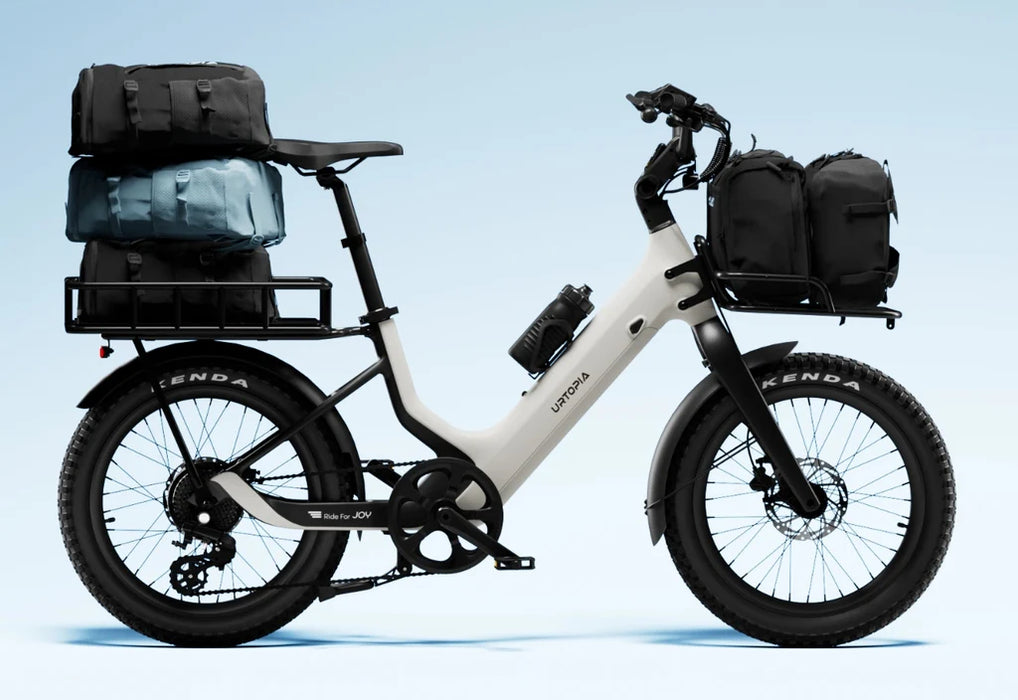

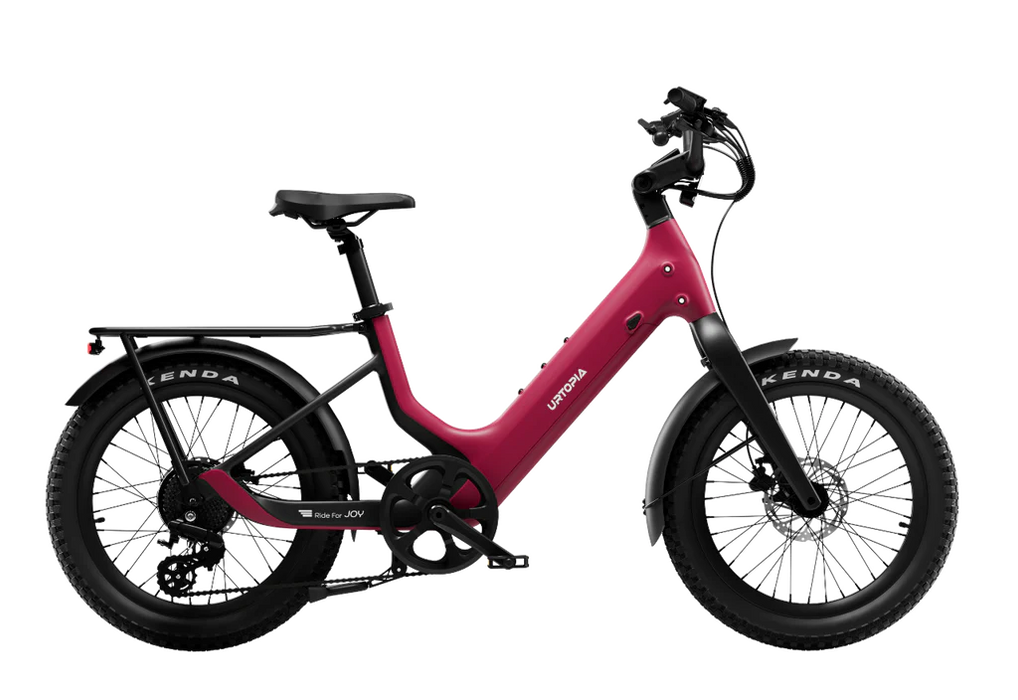

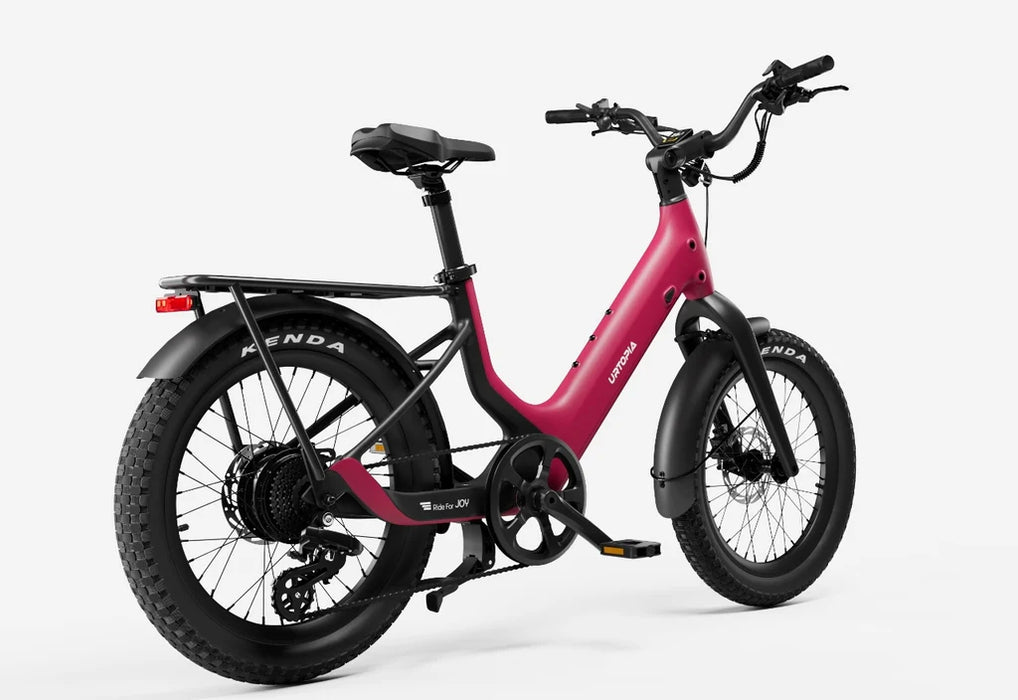

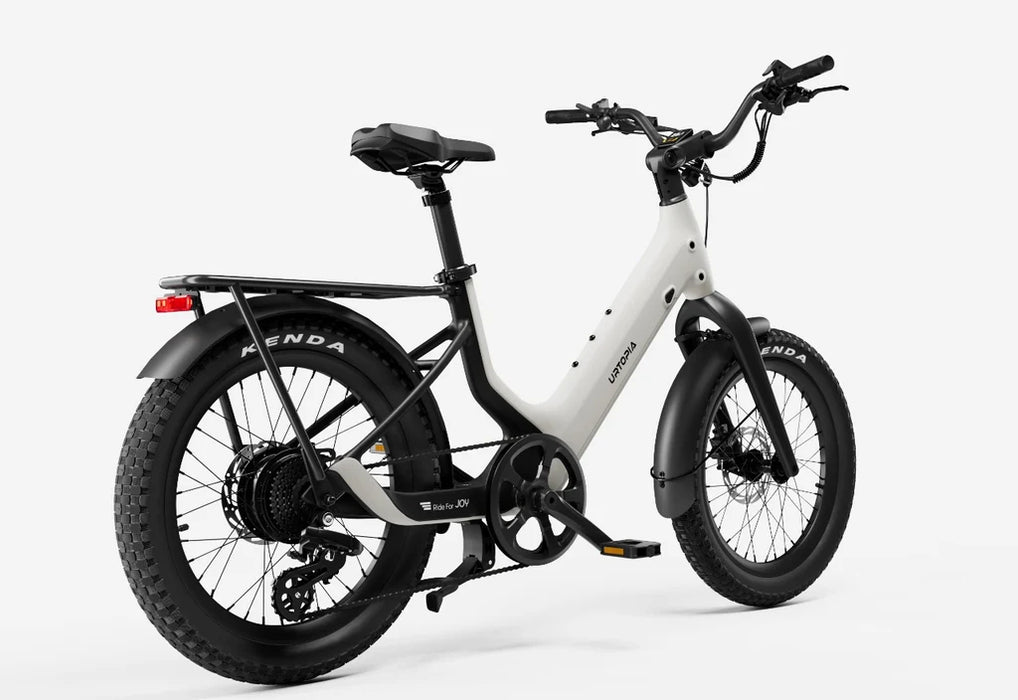

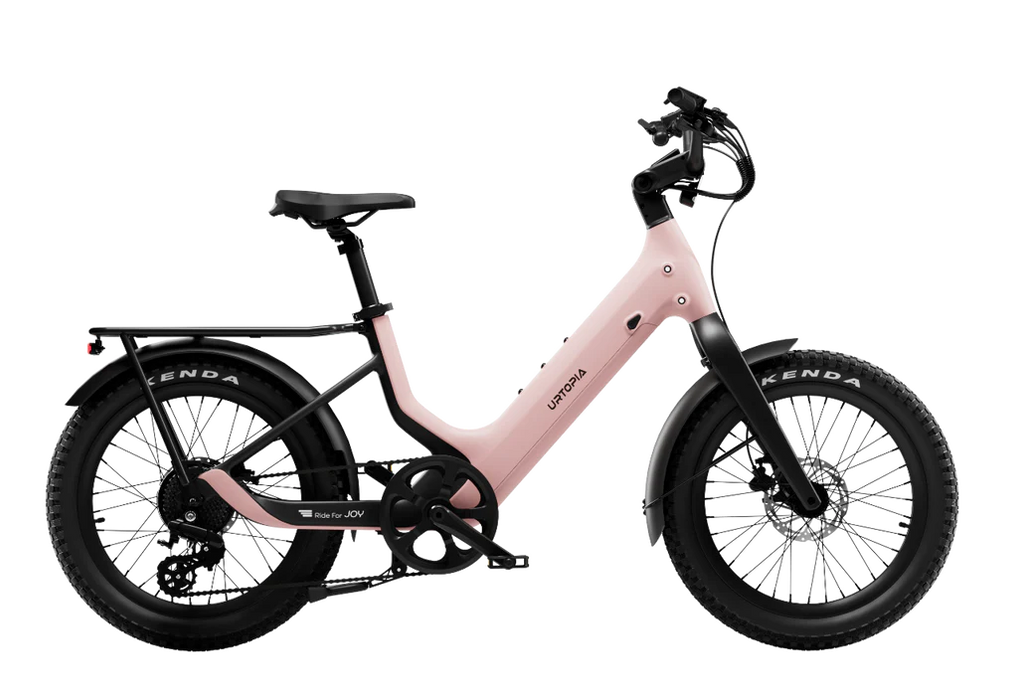

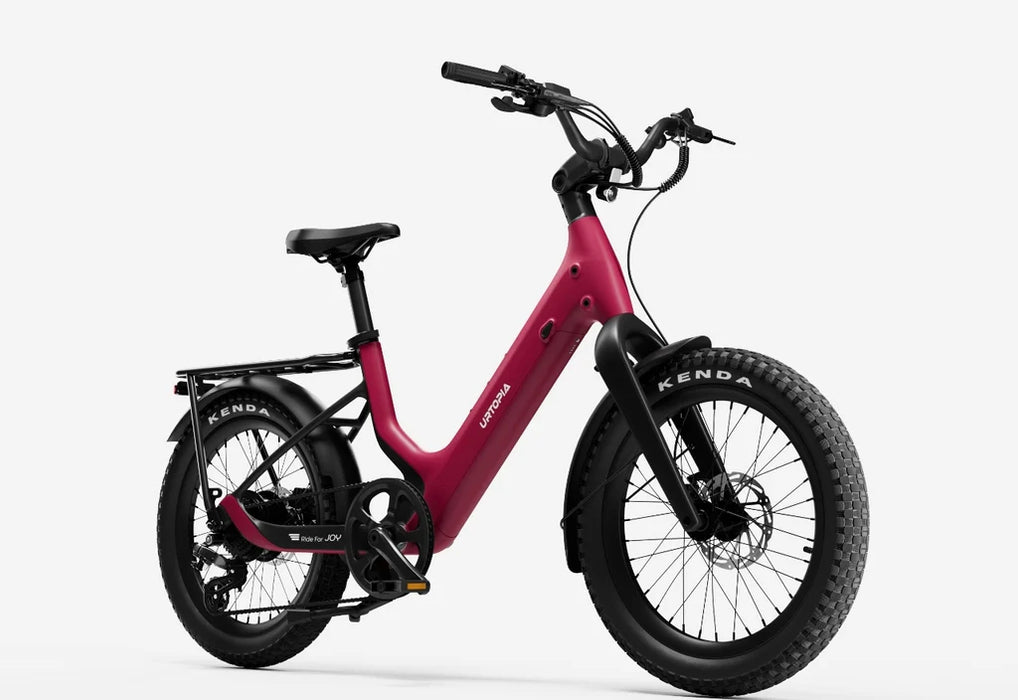

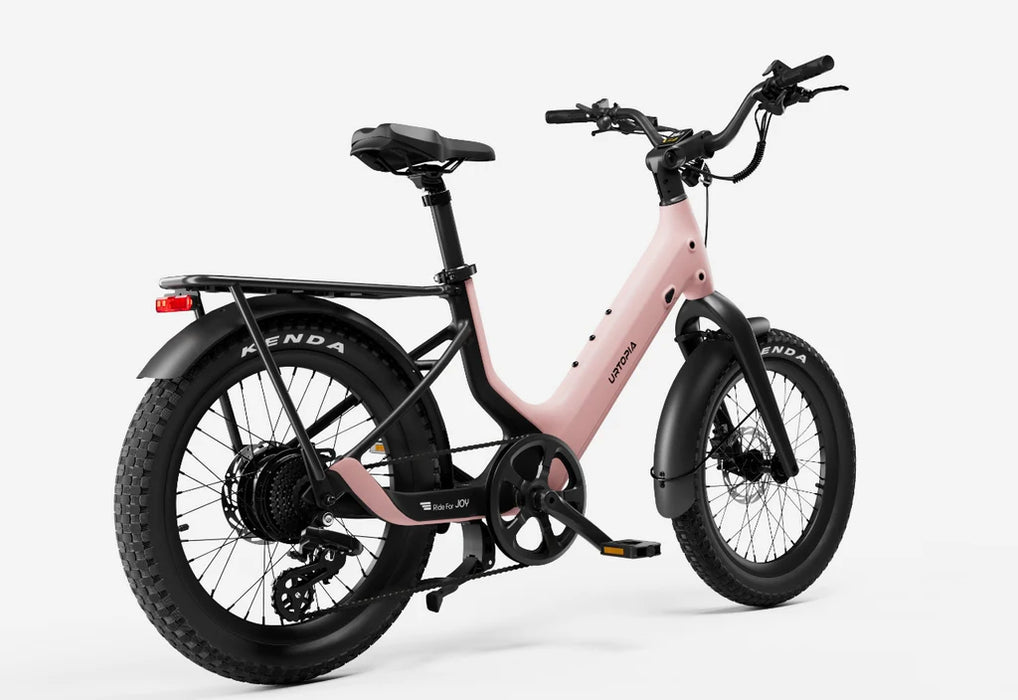

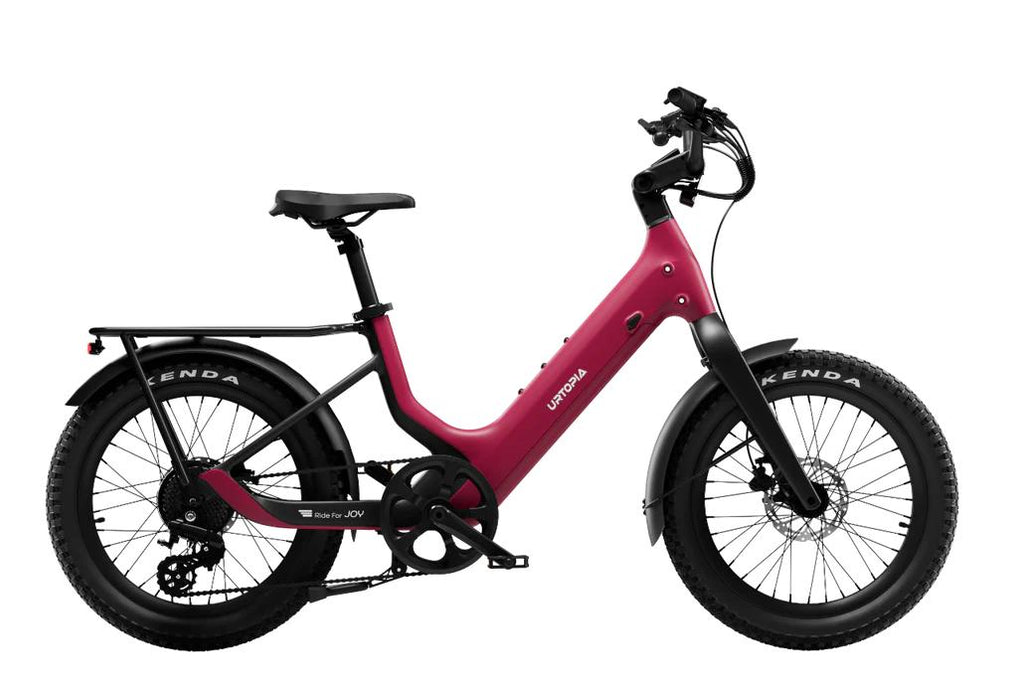

Carbon Joy Ultra E-Bike

Carbon Joy Ultra E-Bike

by Urtopia
SKU BCSW65PKMUS
Save 12% Save 12%
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
$2,199.00
$2,199.00 - $2,199.00
$2,199.00

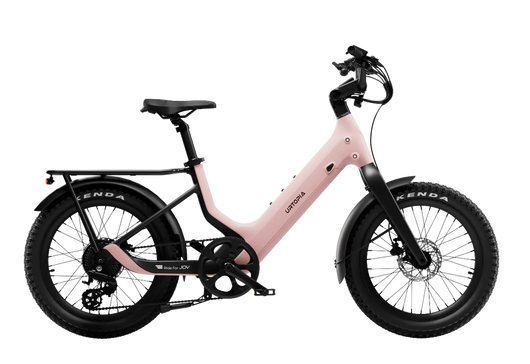

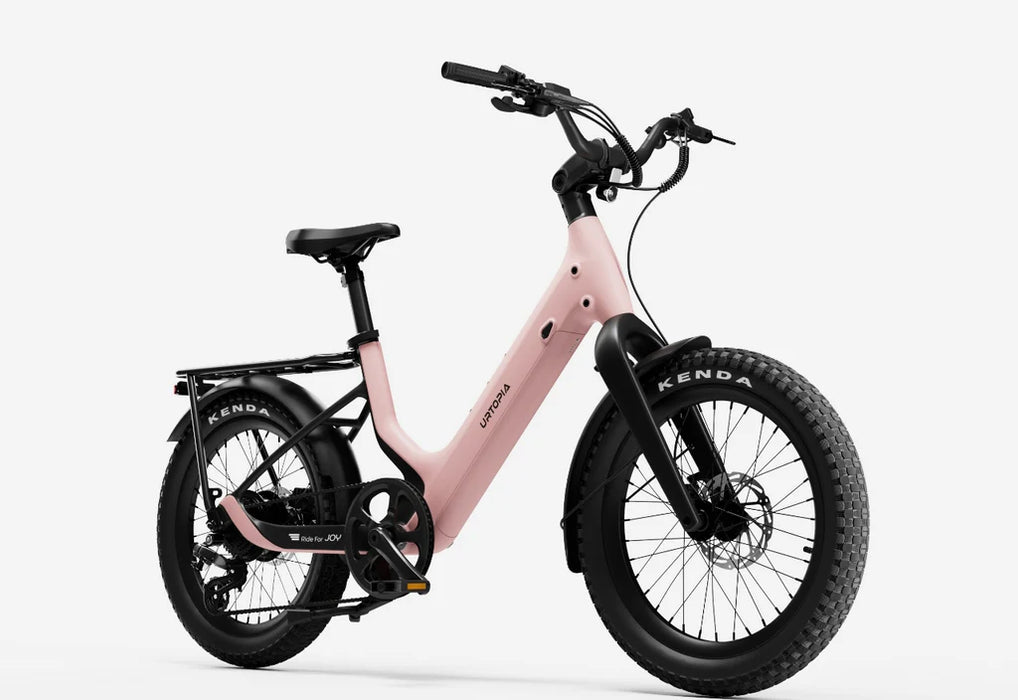

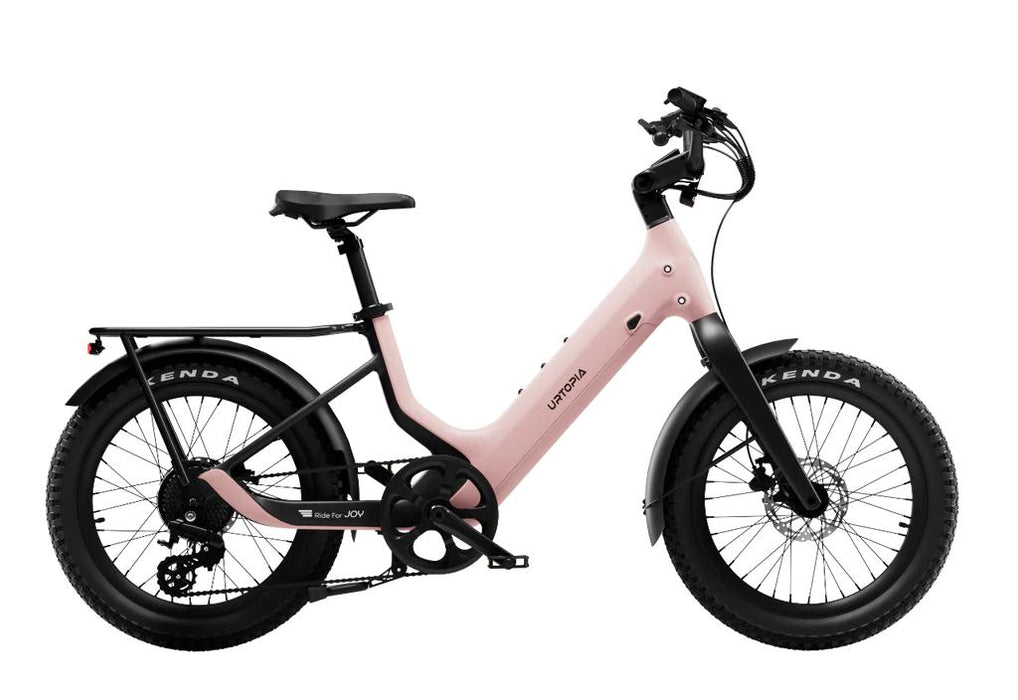

Color: Lychee Pink
Size: One-Size

Bikes go in & out of stock regularly. If a bike is not in stock please feel free to Contact Us about our special ordering program.

Description

Light as Air, Bold by Design

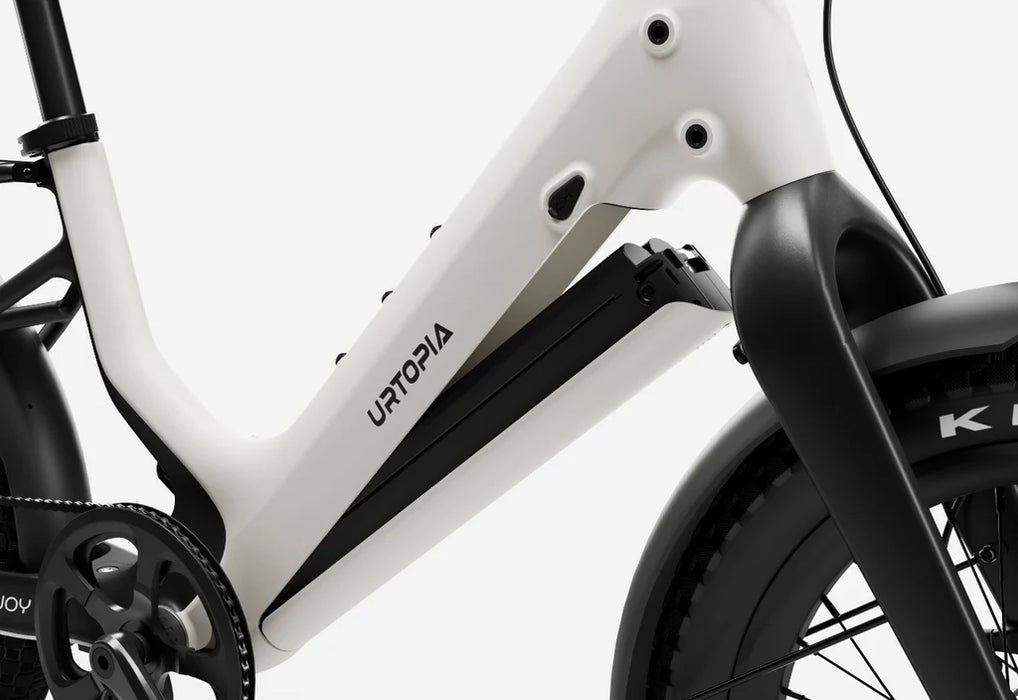

The Carbon Joy Ultra electric cruiser bike is 50% lighter than aluminum while ensuring exceptional strength and durability. Its flowing ribbon-inspired chainstays evoke motion, while the seat-tube-free frame is designed to turn heads and stand out.


General Info

Model
Carbon Joy Ultra E-bike
Net Weight
42 lbs w/o acc.
Material
Carbon fiber (frame, fork)
Range
Up to 70 miles
*The 70-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.
Top Speed
20mph by default, 25mph upon unlock
Total Weight Limit
330 lbs
Rider Height
4’11’’ - 6’3’’
Brakes
TEKTRO hydraulic disc brake with power cut-off sensor
Wheels
Kenda 20’’x3.0’’, Thru-Axle

Ebike System

Class
Class 2
Motor
500W (Peak Power 750W) rear hub, 60Nm
Throttle
Yes (up to 20mph)

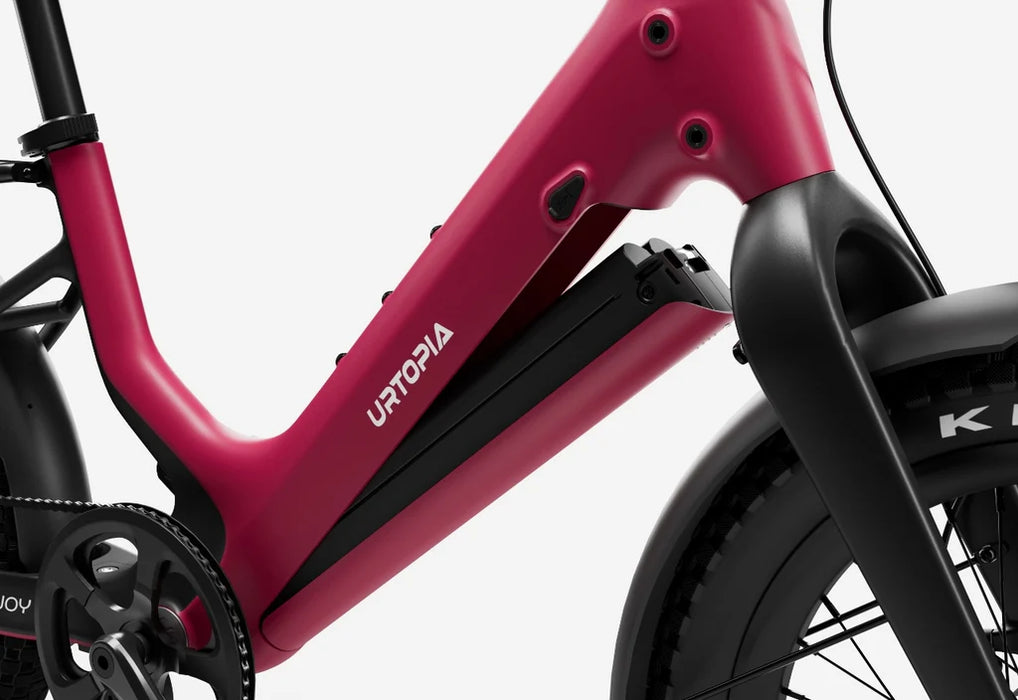

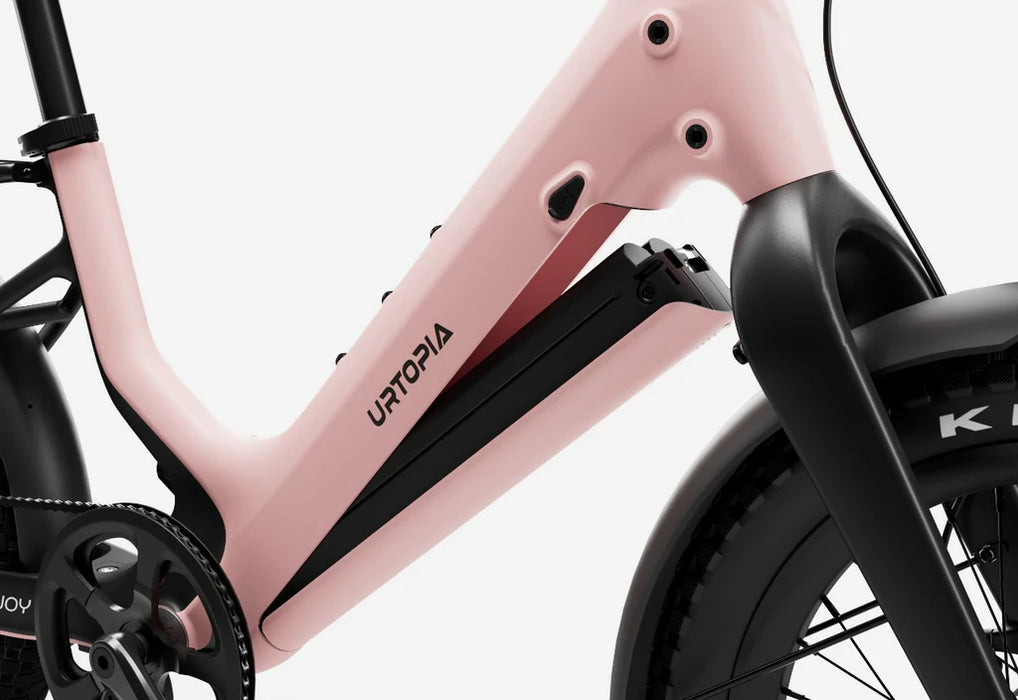

Battery
529.2Wh, Samsung Li-ion, certified to UL-2271
Pedal Assist
4 levels (Eco, Tour, Boost, Turbo)
Charger
3.5hrs fast charger
Sensors
Torque sensor
Lights
Front: External light, 30 Lux
Rear: External tail light (Not ARES lights)
Water Resistance
IP65

Drivetrain

Chainrings
50T
Crankset
Aluminum alloy, 152mm
Cassette
12-32T, 8 Speed
Chain
Shimano 8 speed
Rear Derailleur
Shimano 8 speed
Shift Lever
8 Speed Trigger
Pedals
PP, 103 x 84 x 24mm

Cockpit

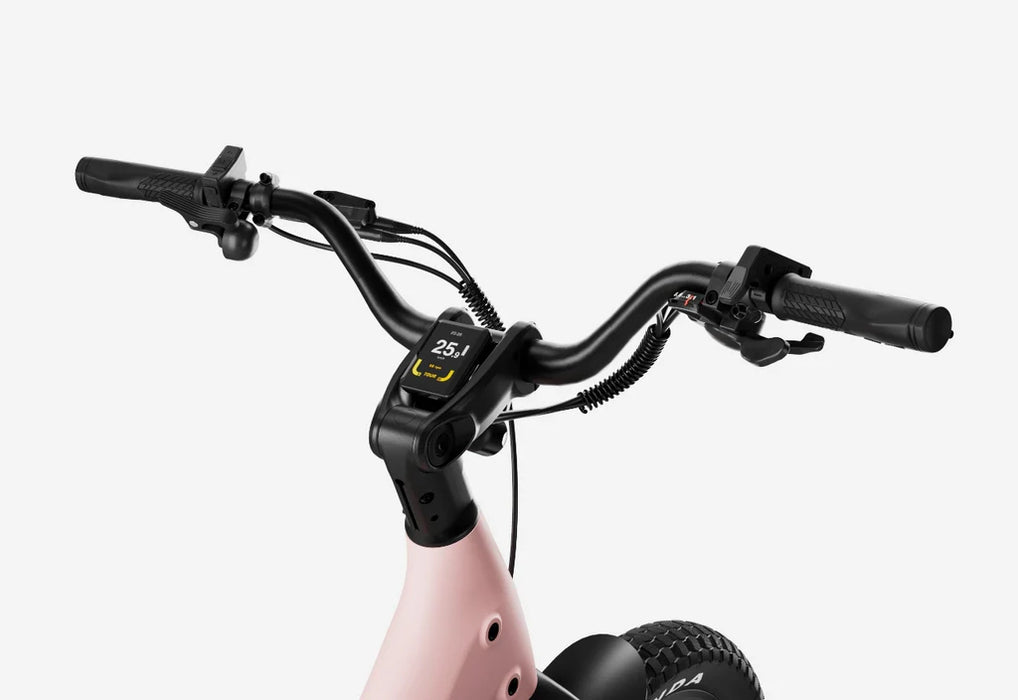

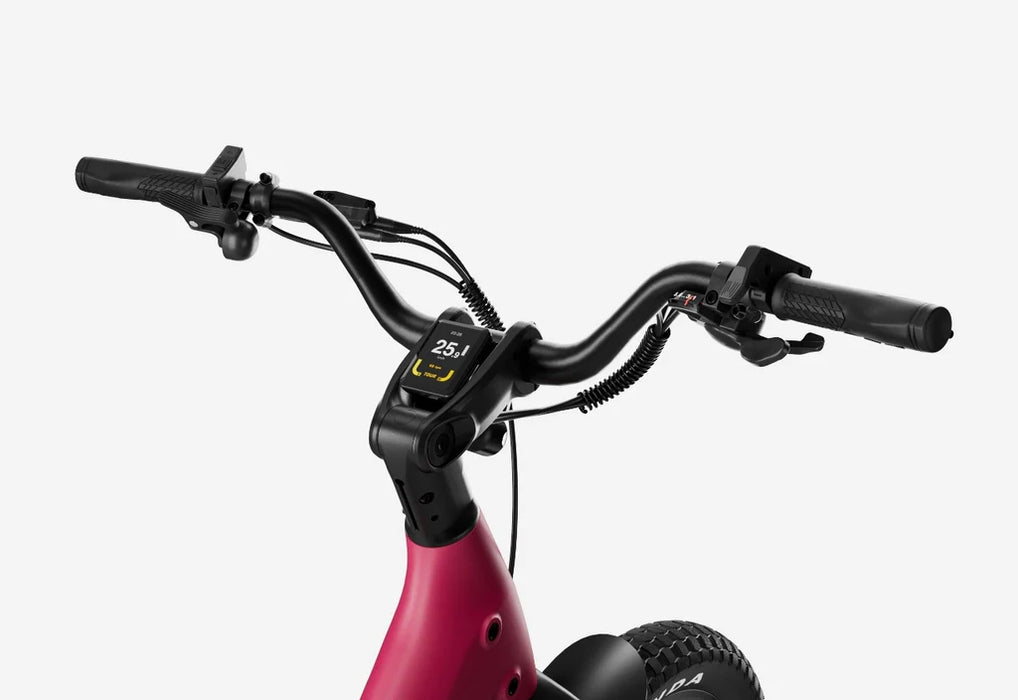

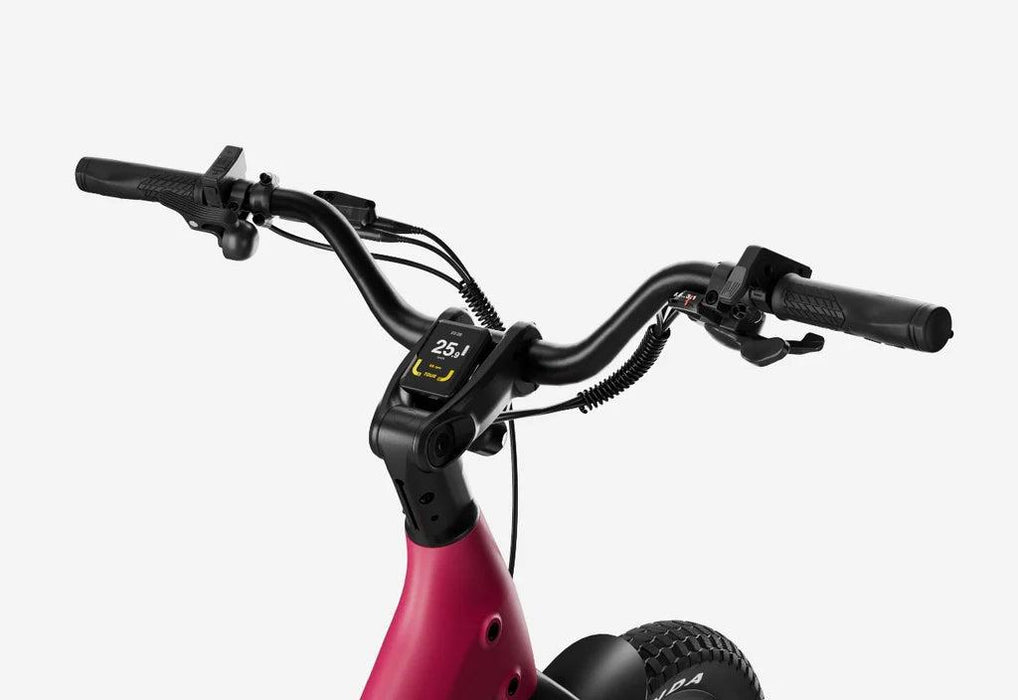

Handlebar
Aluminum, extender 0-60° adjustable
Grips
Durable ergonomic Grips, lockable
Comfort Saddle
273x160x75mm
Seat Post
Aluminum Alloy 2-stage adjustable design

Diameter: φ30.9mm(inner) φ34.9mm(outer)

Adjustment range: 100mm(inner) 120mm(outer)
