2025 Orbea Wild H20

SKU T64205SL
Save 24% Save 24%
Original price $6,499.00
Original price $6,499.00 - Original price $6,499.00
Original price $6,499.00
Current price $4,950.00
$4,950.00 - $4,950.00
Current price $4,950.00
Size: Medium
Description

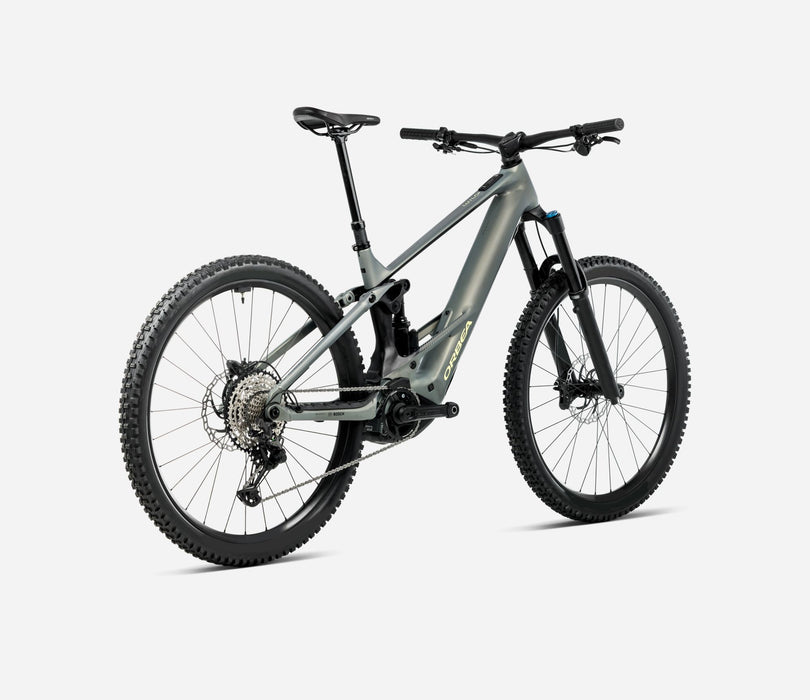

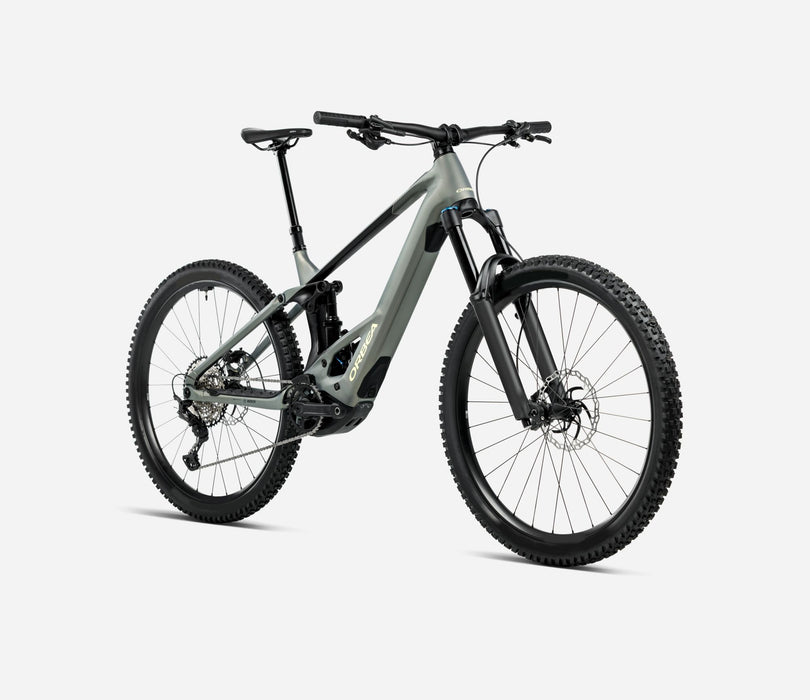

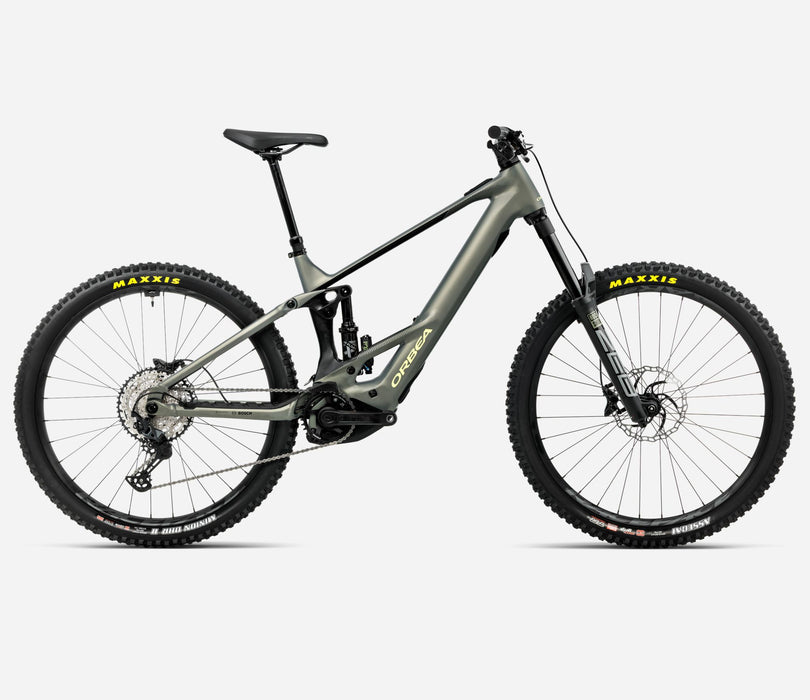

The Orbea Wild H20 20MPH 2025 takes electric mountain biking to the next level with serious competition-grade components. This lightweight aluminum bike features 29-inch wheels and a geometry designed for aggressive riding. The powerful Bosch Performance Line CX motor pairs with your choice of 600Wh or 750Wh battery to provide quiet, responsive power for any trail challenge. The bike's slack 63.5-degree head angle and robust frame give you the stability needed for high-speed descents and technical terrain.

What sets the Wild H20 apart is its massive 170mm of suspension travel front and rear. The RockShox ZEB fork and Fox Float X shock work together to smooth out the biggest hits while keeping you in control. This suspension setup excels at absorbing small bumps and provides a progressive feel that adapts to changing trail c onditions. Combined with Shimano SLX shifting, Race Face wheels, and grippy Maxxis Minion tires, the Wild H20 delivers the capability and confidence you need to tackle the most demanding trails with ease.

Frame

Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148

Shock

Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm

Fork

RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific 15X110 Boost

Steerer tube

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery

Bosch Powertube 750Wh Horizontal BBP3775

RANGE EXTENDER

N/A

Motor

Bosch Performance Line CX BDU3843

Display

Bosch System Controller BRC3100

CHARGER

Bosch Charger 4A (110V) BPC3410

Remote

Bosch Mini Remote BRC3300

Drivetrain

Chainring

e*thirteen e*spec Direct Mount 34T Boost

Crank

e*thirteen Helix Core

Shifters

Shimano Deore M6100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear derailleur

Shimano SLX M7100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

e*thirteen Plus Bosch CX Gen4 CL 55 32-36t

Cockpit

Handlebar

OC Mountain Control MC30, Rise20, Width 800

Stem

OC Mountain Control MC20, 0ยบ

Computer Mount

OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes

Shimano MT420 Hydraulic Disc

Rotors

Galfer Wave Rotors 203mm front / 203mm rear

Brakes Configuration

N/A

Wheels

Wheels

Race Face AR 30c Tubeless Ready

Tyres

Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip

Tyres

Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra

Components

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Saddle

Selle Royal Vivo Sport Men 145 x 269mm

Grips

OC Lock On
