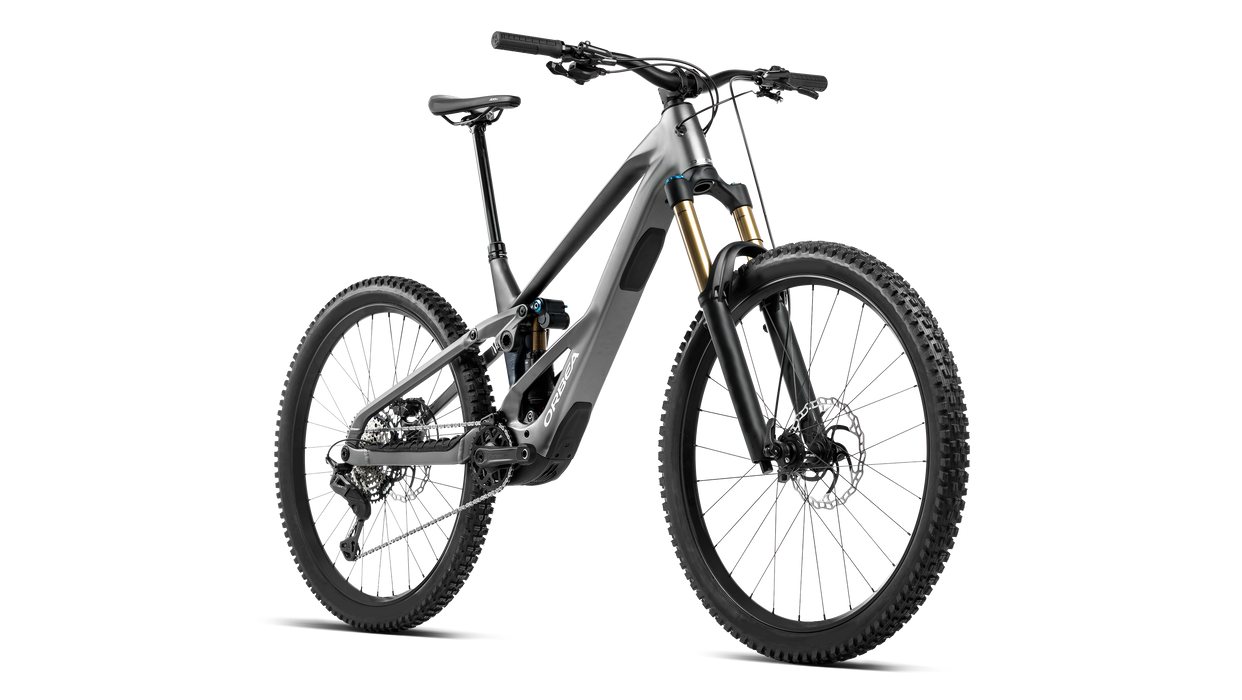

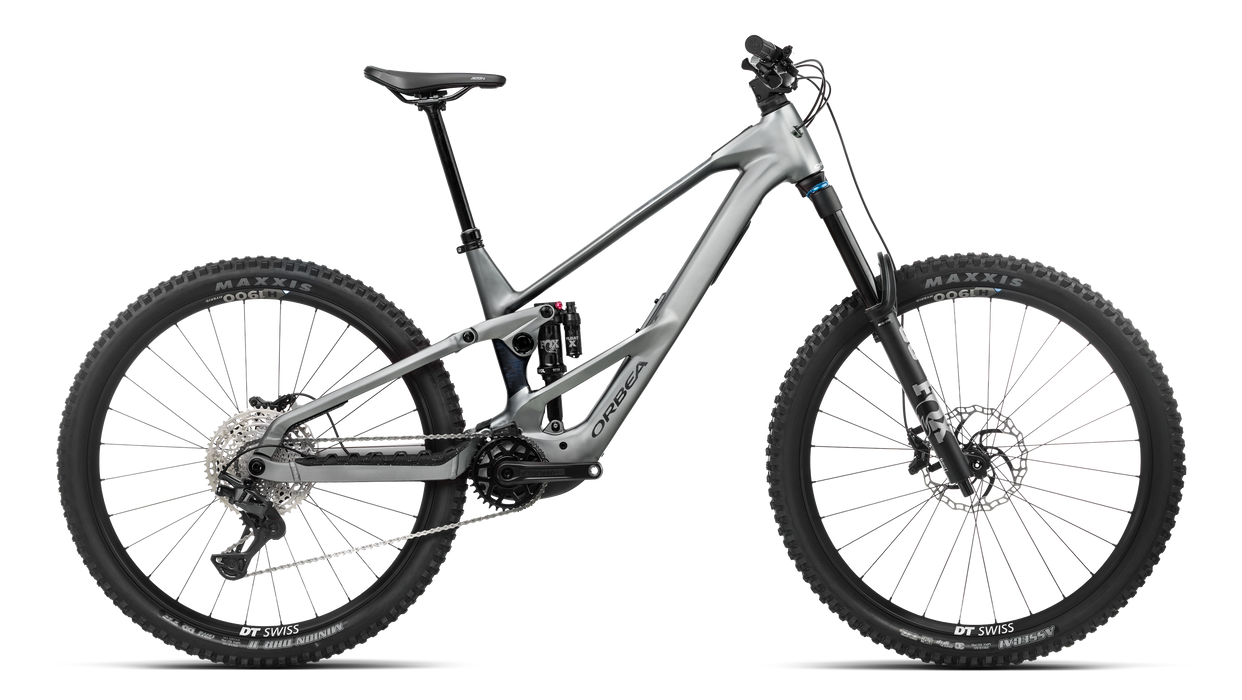

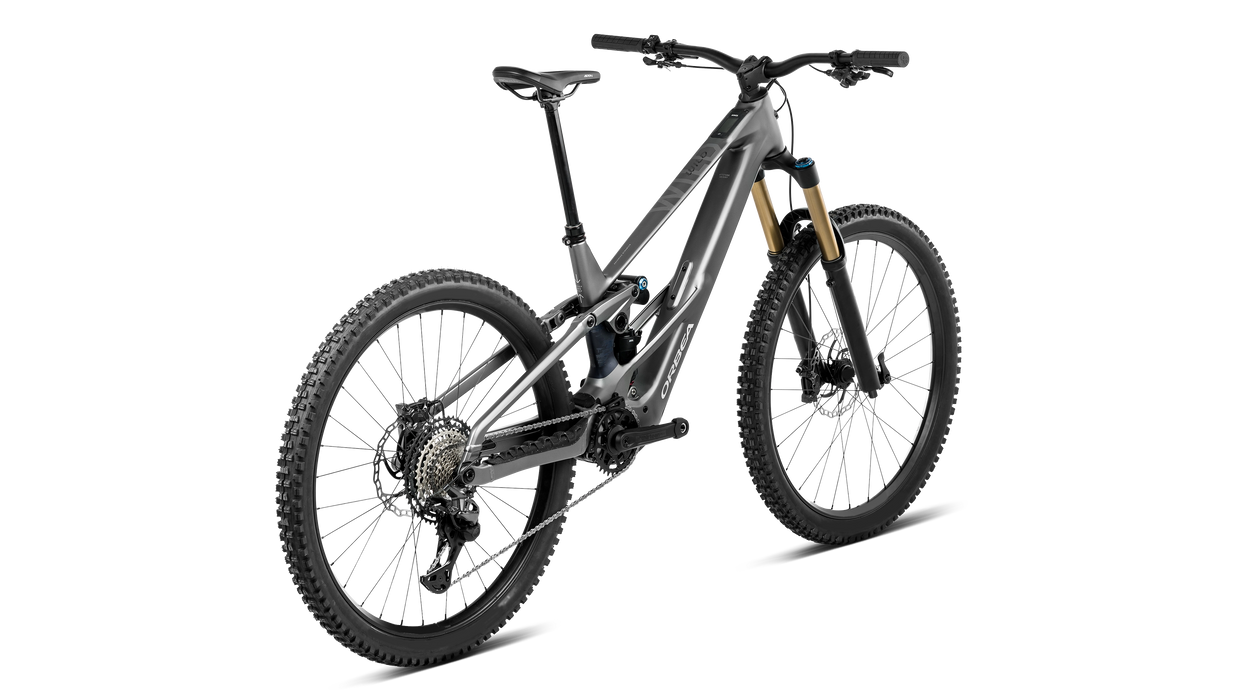

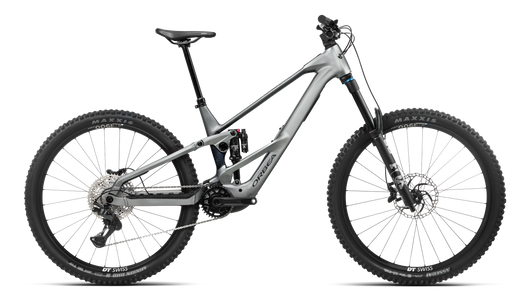

Orbea Wild LT H10

Orbea Wild LT H10 20mph

The Orbea Wild LT H10 20mph is a long-travel electric mountain bike built for aggressive trail and enduro riding. Its aluminum Wild Hydro frame pairs 170mm of front and rear suspension travel with Orbea's Avinox-powered e-bike platform for strong climbing support and confident handling on technical terrain.

Color

Grey - Noctiluca C View (Matt)

Key Features

• Orbea Wild Hydro aluminum frame
• 29-inch front and rear wheels
• 170mm front and rear suspension travel
• Avinox M2S motor
• Avinox 800Wh battery
• Avinox DP100 display
• Avinox BC100 remote
• Avinox 4A charger
• 20 mph assist configuration

Standard Specification

• Fork: Fox 38 Float Performance 170, GRIP, 3-Pos, 15x110
• Frame: Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
• Shock: Fox Float X Performance Trunnion 2-Pos Evol LV, custom tune, 205x65mm
• Headset: Acros ZS56
• Motor: Avinox M2S
• Battery: Avinox 800Wh
• Display: Avinox DP100
• Remote: Avinox BC100
• Chainring: e*thirteen Helix Race e*spec Direct Mount 34T, 55mm chainline
• Crank: e*thirteen Helix Core e*spec
• Shifter: Shimano Deore M6200 I-Spec EV
• Cassette: Shimano M6200 10-51T, 12-speed
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Chain: Shimano M6100
• Brakes: Shimano MT620 hydraulic disc
• Rotors: Galfer Wave 200mm front / 200mm rear
• Wheels: DT Swiss H 1900 Spline 30c
• Front Tire: Maxxis Assegai 2.50", 3C MaxxGrip, EXO+ TR
• Rear Tire: Maxxis Minion 2.40", 3C MaxxTerra, DD TR
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 35, 800mm
• Stem: OC Mountain Control MC20, 0º
• Seatpost: OC Mountain Control MC22 dropper, 31.6mm
• Saddle: Fizik Aidon, 208x145mm, manganese rail

Component specifications are based on Orbea's standard configuration and may be subject to manufacturer running changes.
