Description

In Stock and ready to be purchased in store

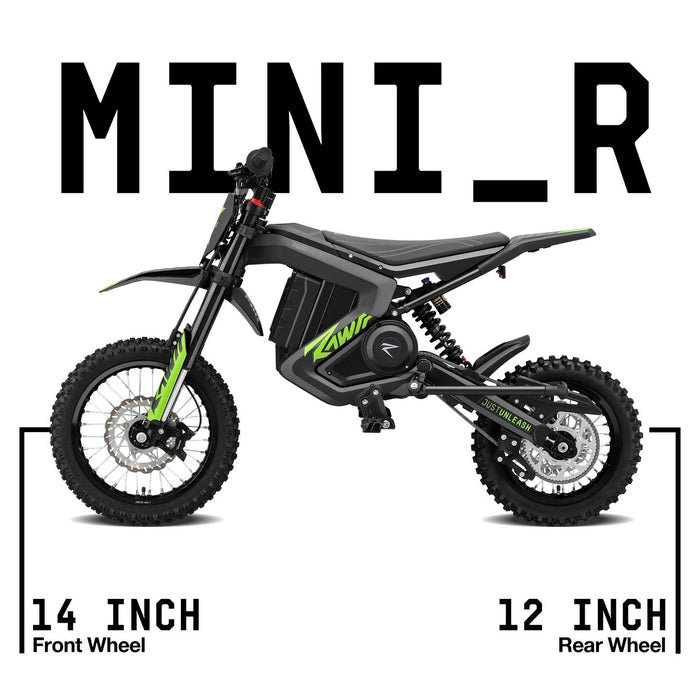

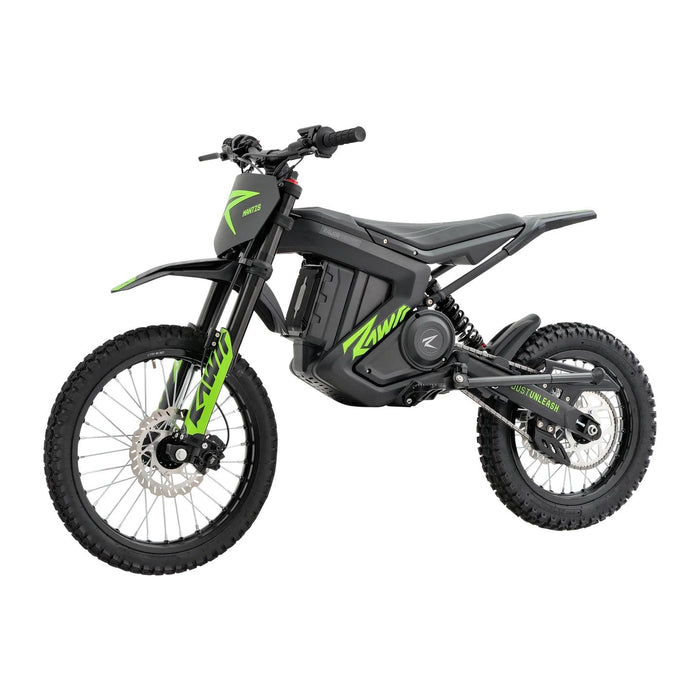

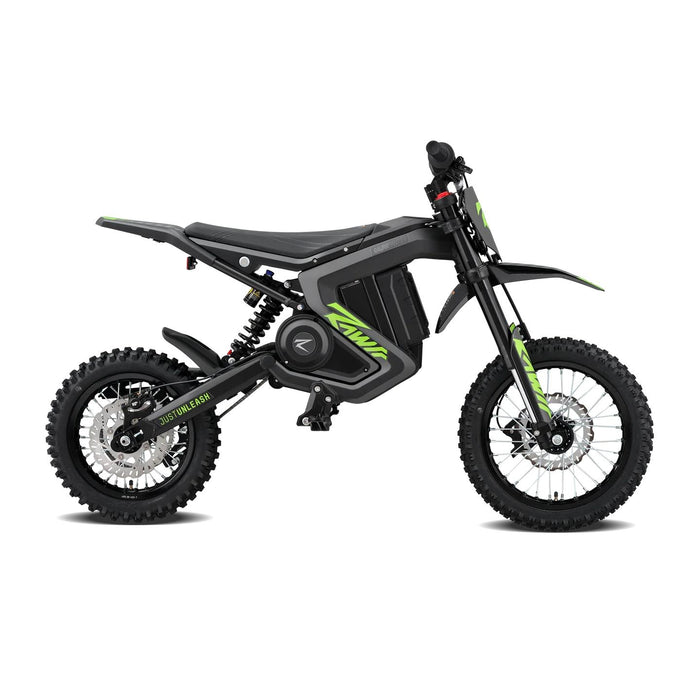

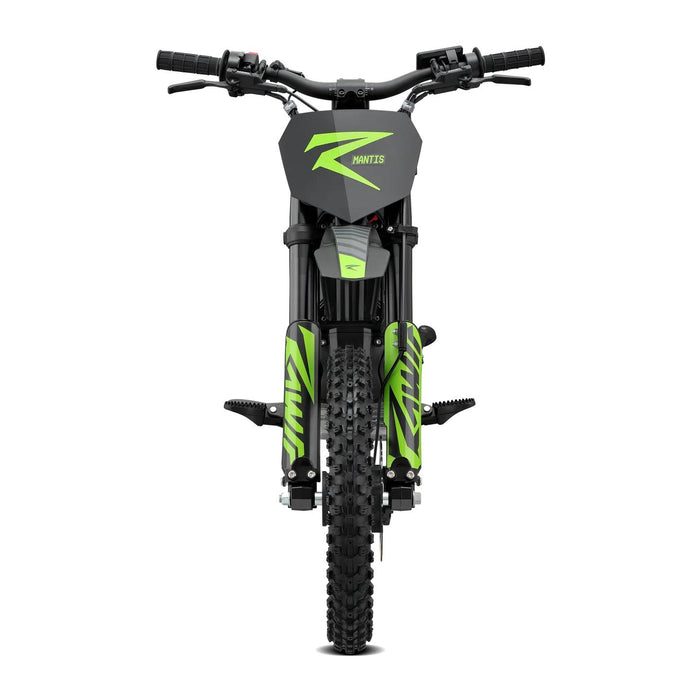

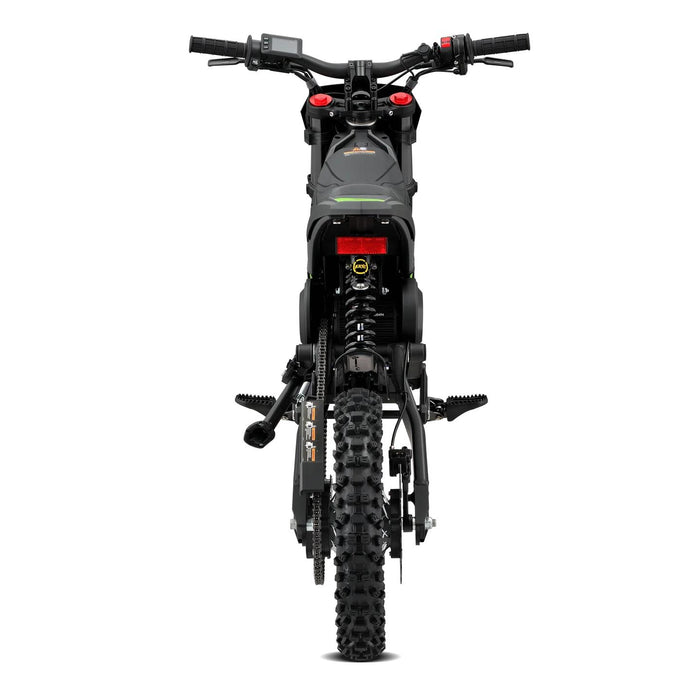

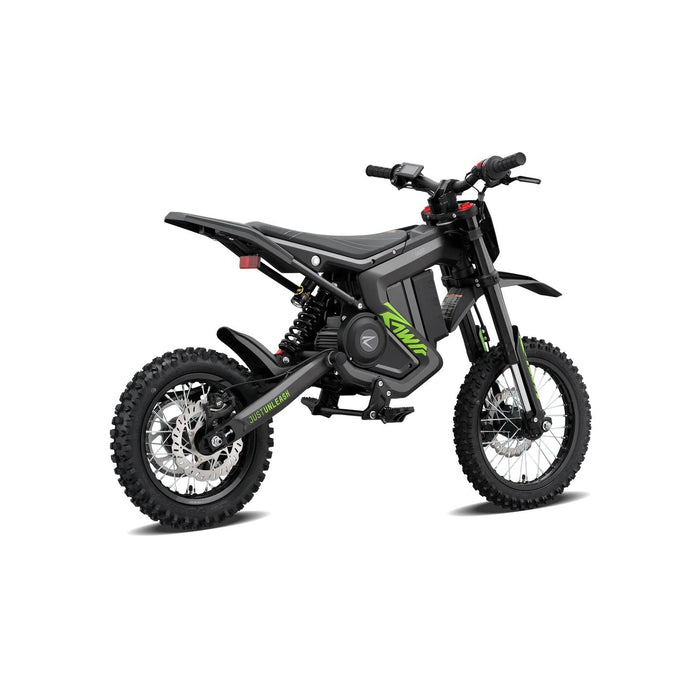

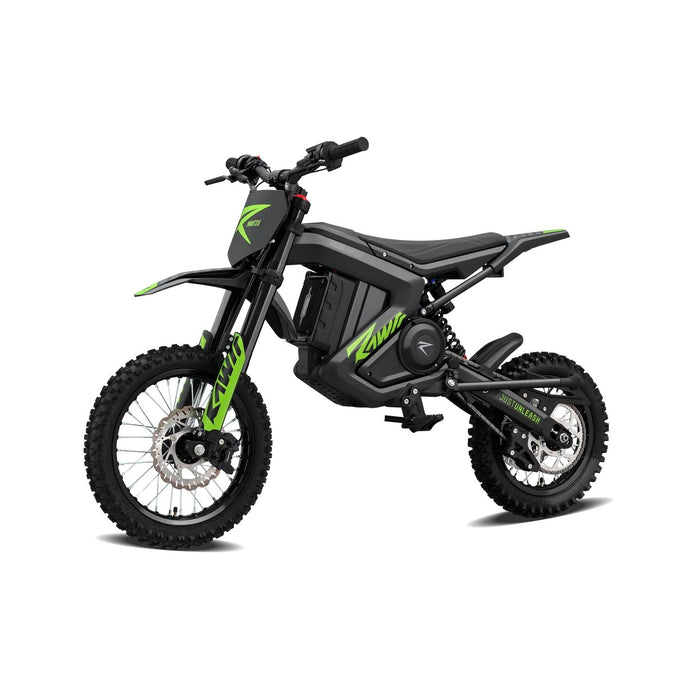

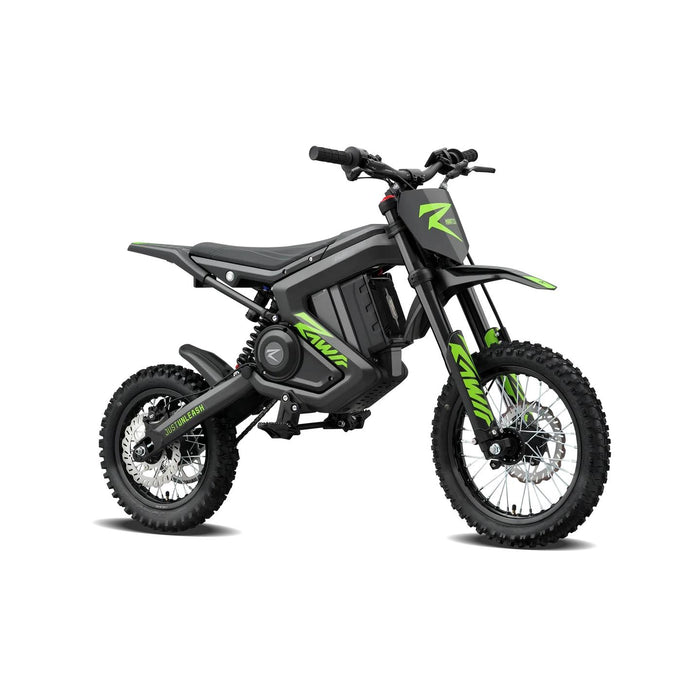

Dual Fit. The Mantis Mini R and Mini R17 are built for different rider heights while delivering the same thrill. Powered by a 72V battery and 6,000W PMSM motor, they launch from 0–18 MPH in 1.6 seconds and top out at 46 MPH. Parents and young pros can fine-tune power and speed with our app-enabled controller for total control. With aircraft-grade aluminum, hydraulic brakes, and adjustable rear suspension, the Mini R series delivers real performance with family-ready safety features.



Performance

Top Speed
46 MPH
0-30 MPH
3.6 Seconds
Max Torque
162.3 ftlb
Range (15mph 165lb rider)
37 Miles
Climbing Ability
45 Degrees
Weight Capacity
165 Lbs

Mechanical

Brake Type
2-Piston Hydraulic Disc Brakes
Front Fork Travel
110mm
Power Delivery
Direct Chain Drive
Front Brake Rotor Size
203mm
Rear Brake Rotor Size
203mm
Rear Suspension Travel
60 mm
Frame Material
6061 Aluminum Alloy
Motor Type
PMSM
Vehicle Weight With Battery
115.7 lbs
Safety
RSI

Electrical

Max Output Power
6000W
Battery Type
Lithium Ion
Battery Info
72V 1440Wh
Nominal Power Output
2000W
Drive Modes
Eco, Sport, Race
Display Type
LCD
Charging Time
2 Hours (20%-90%)

Measurements

A
Seat Height
28.89 Inches
B
Wheelbase
41.14 Inches
C
Handlebar Height
33.46 Inches
D
Length
62.2 Inches
E
Height
37.8 Inches
F
Ground Clearance
9.45 Inches
