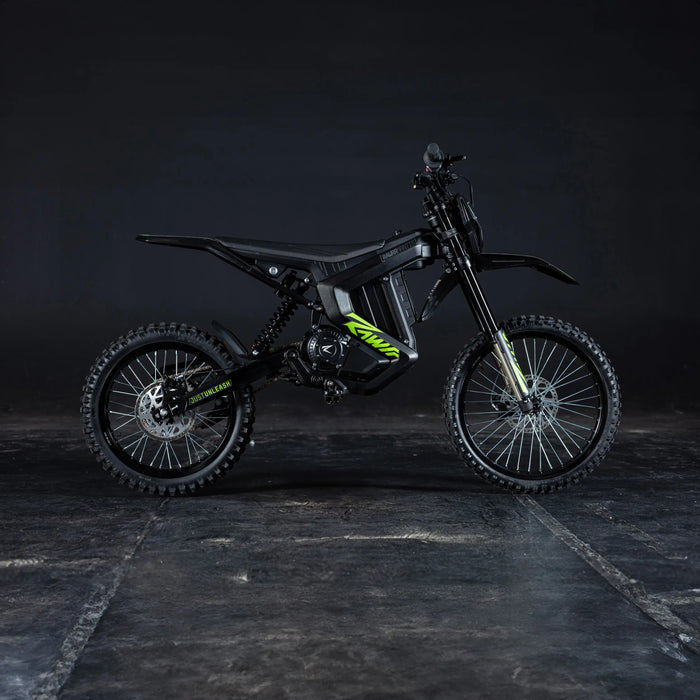

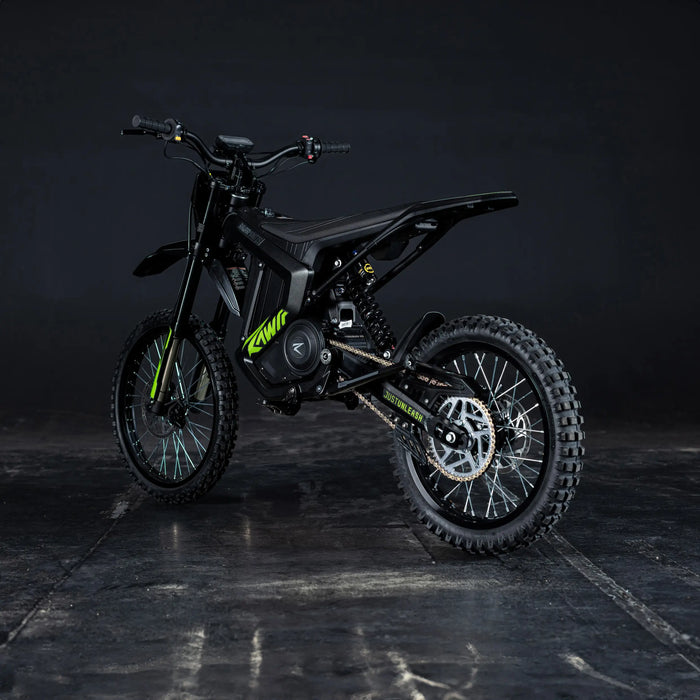

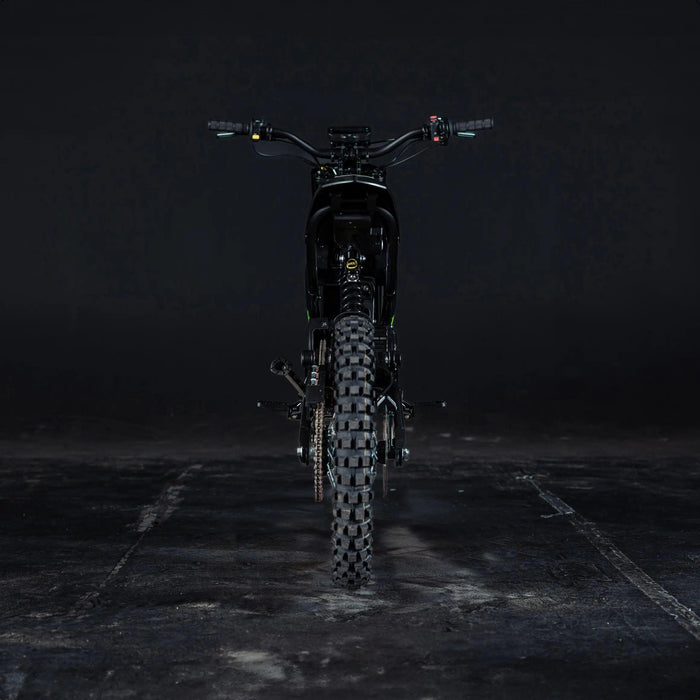

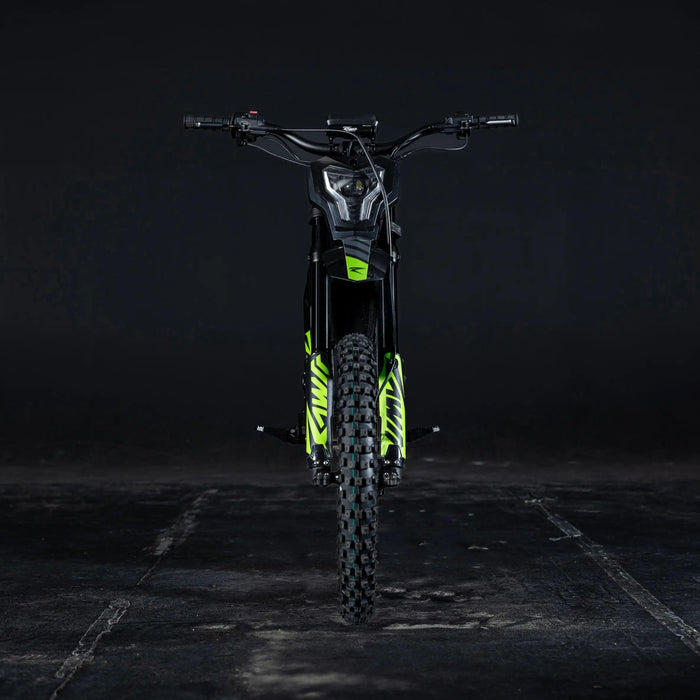

Rawrr Mantis X
Skip to content
54 Holman Rd Plymouth MA 02360 508-857-3777
54 Holman Rd Plymouth MA 02360 508-857-3777
Description

In Store Pickup Only

This is an E-dirt bike, not an E-bike, for off-road use only.

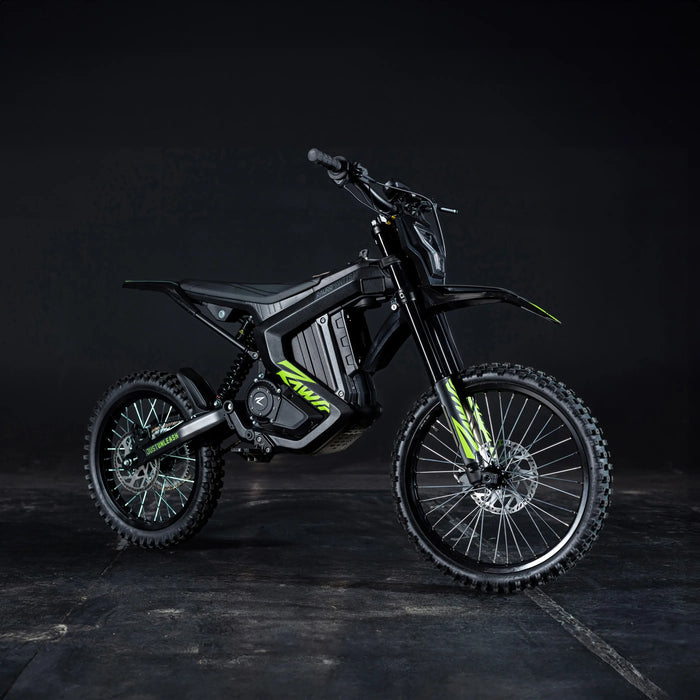

The perfect balance of power and control. The Mantis X hits 50 MPH with a swappable 72V battery offering up to 62 miles of eco range. Pro* adjustable suspension keeps every ride smooth while the low center of gravity makes staying on the bike effortless. With a simple chain-driven system built for reliability and an app-connected controller for easy tuning, the Mantis X is the all-around E-Moto built to ride anywhere with confidence.



Performance

Top Speed
50 MPH
0-30 MPH
4 Seconds
Max Torque
191.77 ftlb
Range
62 Miles (Eco Mode)
Climbing Ability
45 Degrees
Weight Capacity
220 lbs

Mechanical

Brake Type
4-Piston Hydraulic Disc Brakes
Front Fork Travel
200 mm
Power Delivery
Gearbox and Chain Driven
Front Brake Rotor Size
220mm
Rear Brake Rotor Size
203mm
Rear Suspension Travel
70 mm
Frame Material
6061 Aluminum Alloy
Motor Type
PMSM
Vehicle Weight With Battery
139 lbs
Safety
RSI

Electrical

Max Output Power
6500W
Battery Type
Lithium Ion
Battery Info
72V 2160WH
Nominal Power Output
3000W
Drive Modes
Eco / Sport / Race
Display Type
LCD

Measurements

A
Seat Height
35 Inches
B
Wheelbase
49.8 Inches
C
Handlebar Height
43.3 Inches
D
Length
74 Inches
E
Height
43.7 Inches
F
Ground Clearance
12.8 Inches
