About 6miles*
Store Display Demo. May have minor scratches from customers sitting on it for fit and/or parking lot test rides. Contact Us for exact miles.
Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range

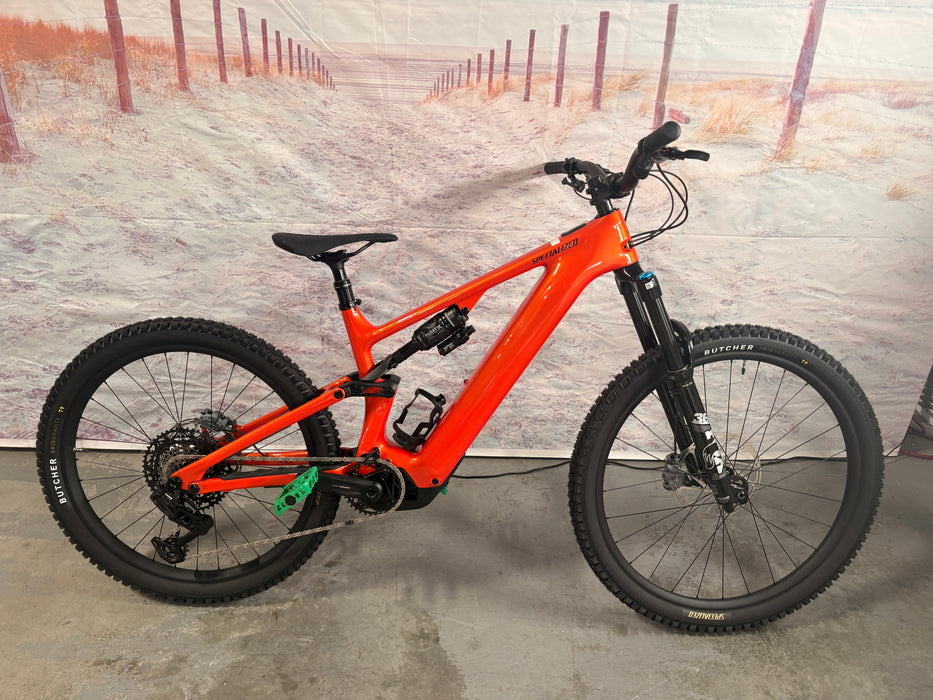

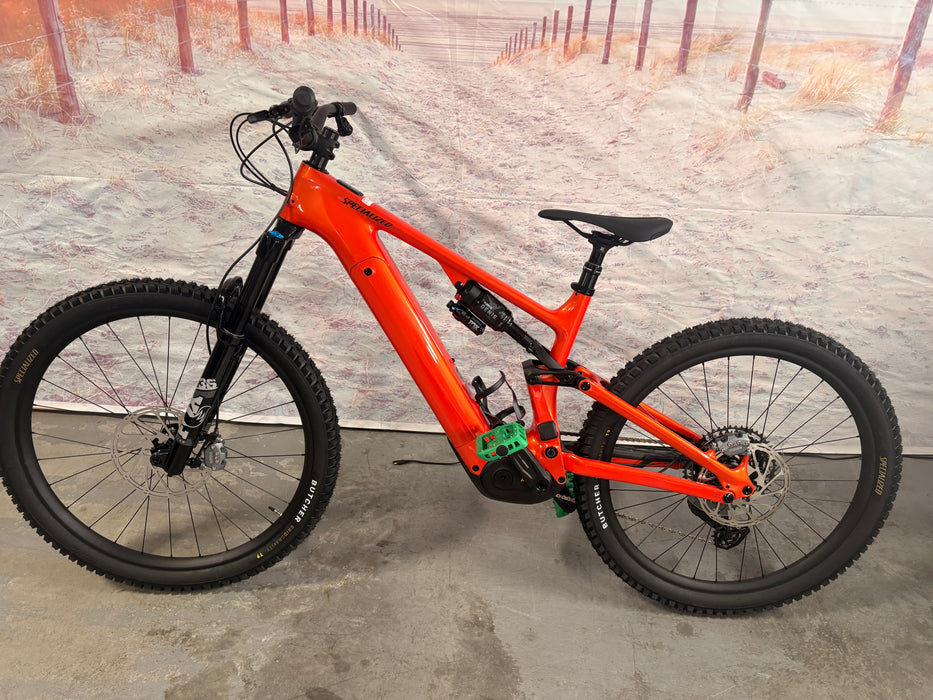

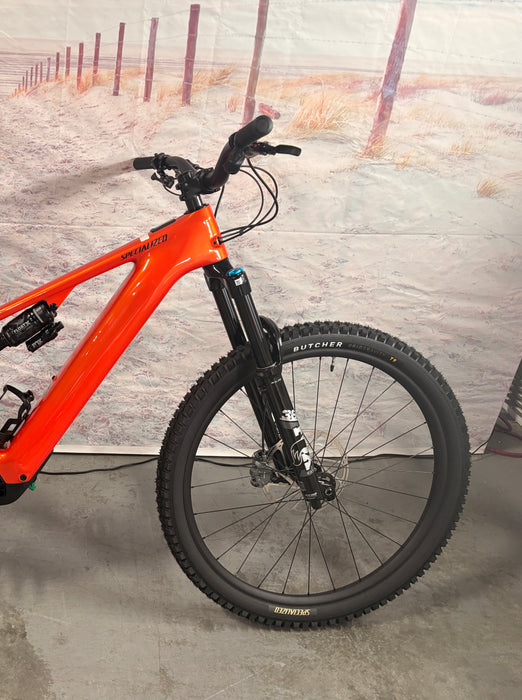

The Specialized Turbo Levo 4 Comp Carbon combines a FACT 11m carbon chassis with the Specialized 3.1 motor, 840Wh battery, FOX suspension, SRAM Eagle Transmission, and a mixed-wheel trail setup built for technical climbs and descents.
Technical Specifications
E-Bike
-

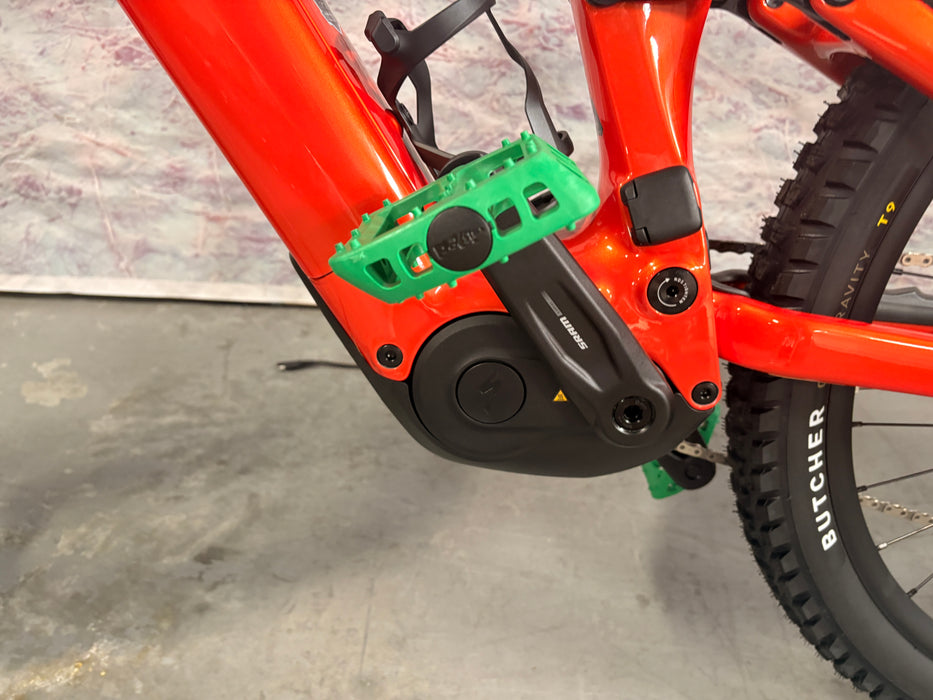

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
-
Battery: 840Wh battery
-

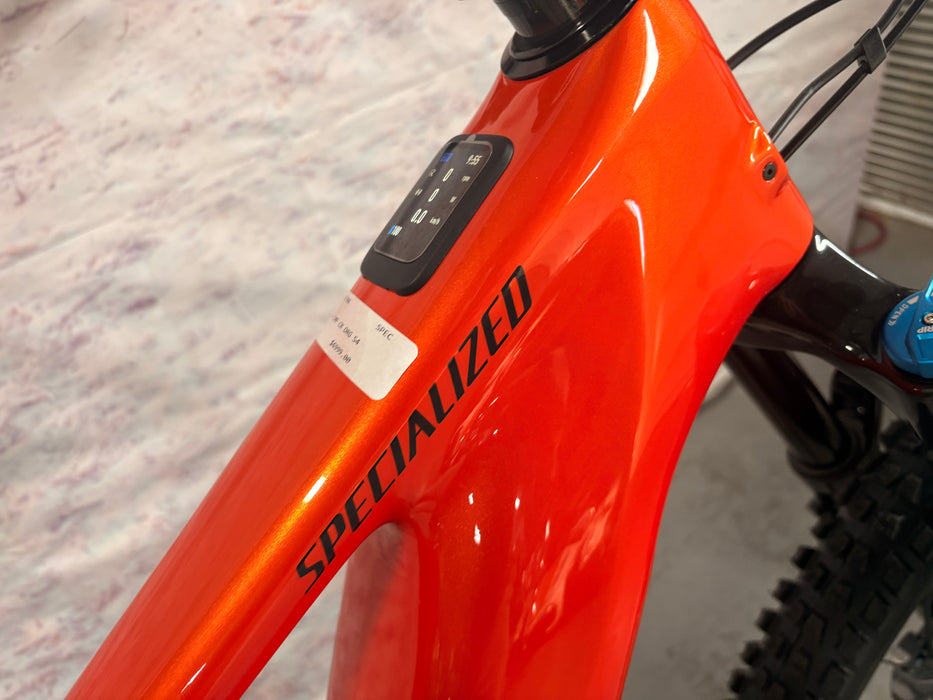

UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
-
Charger: Specialized 4amp charger
Frameset
-

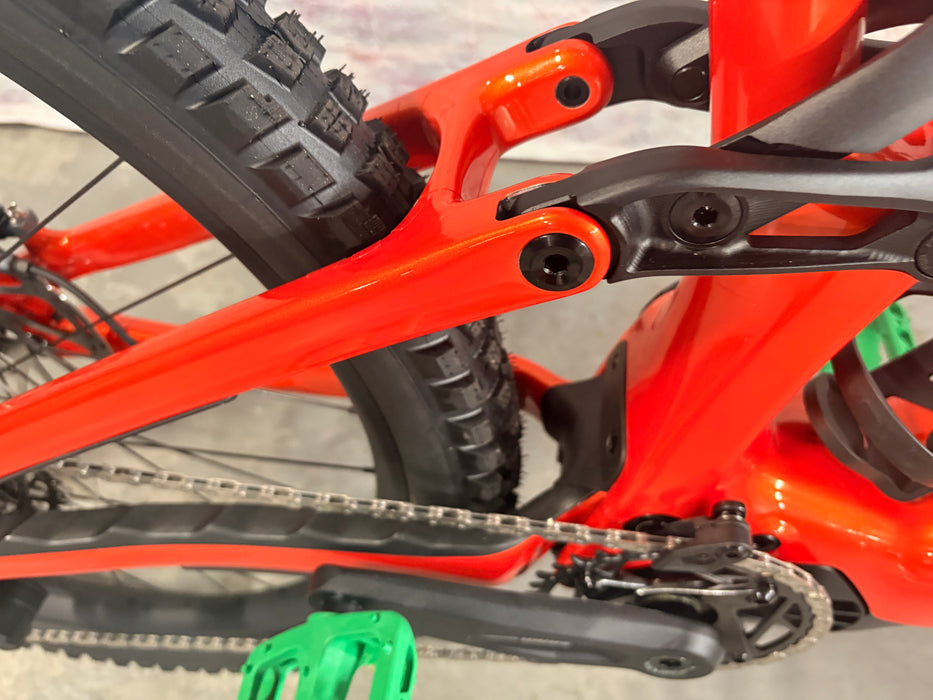

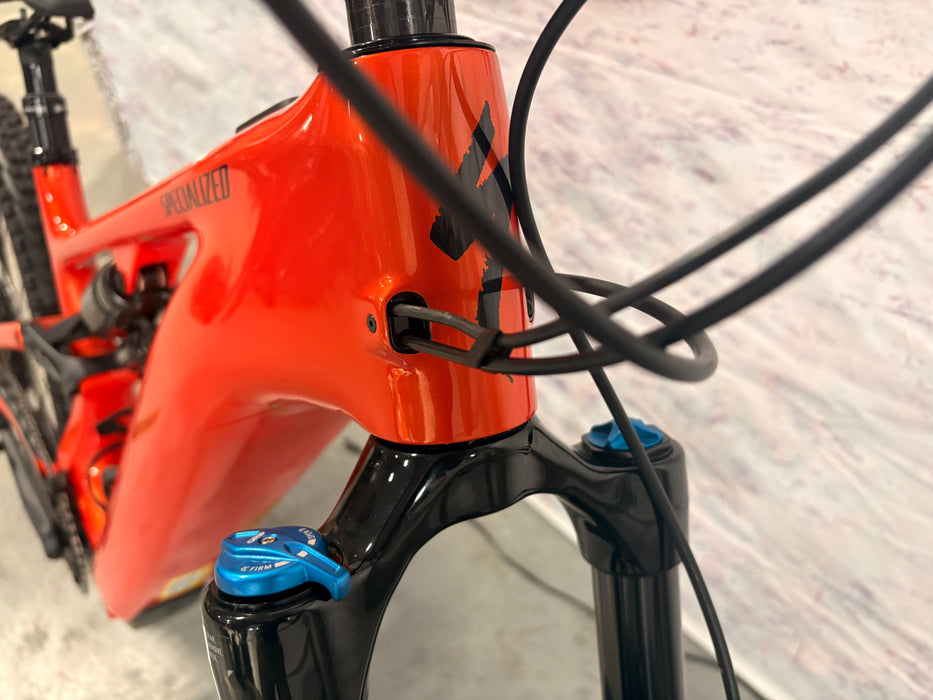

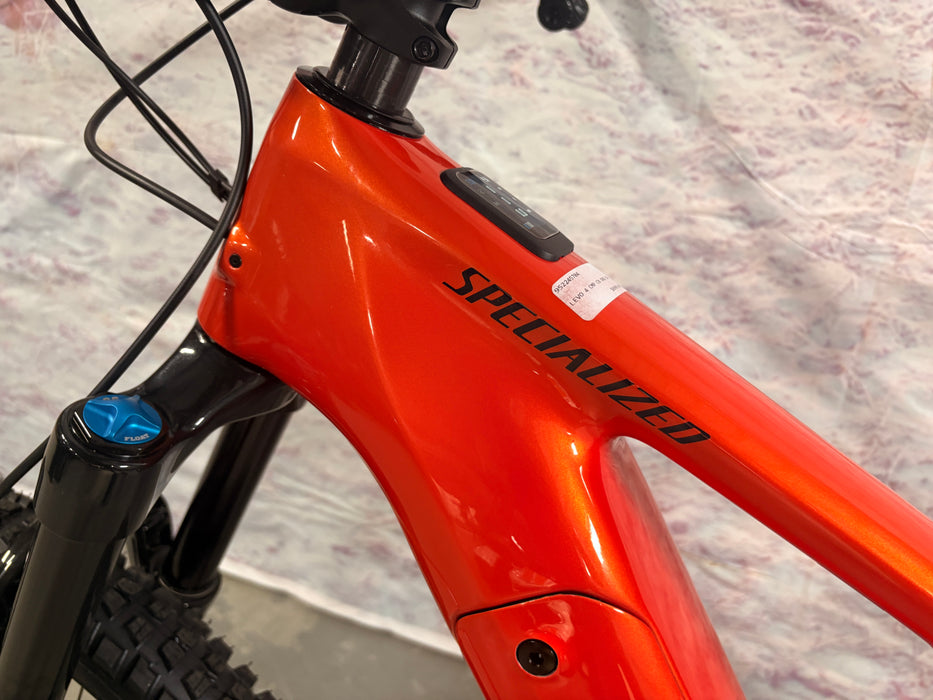

Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
-
Seat Binder: Alloy, 38.6mm
Suspension
-

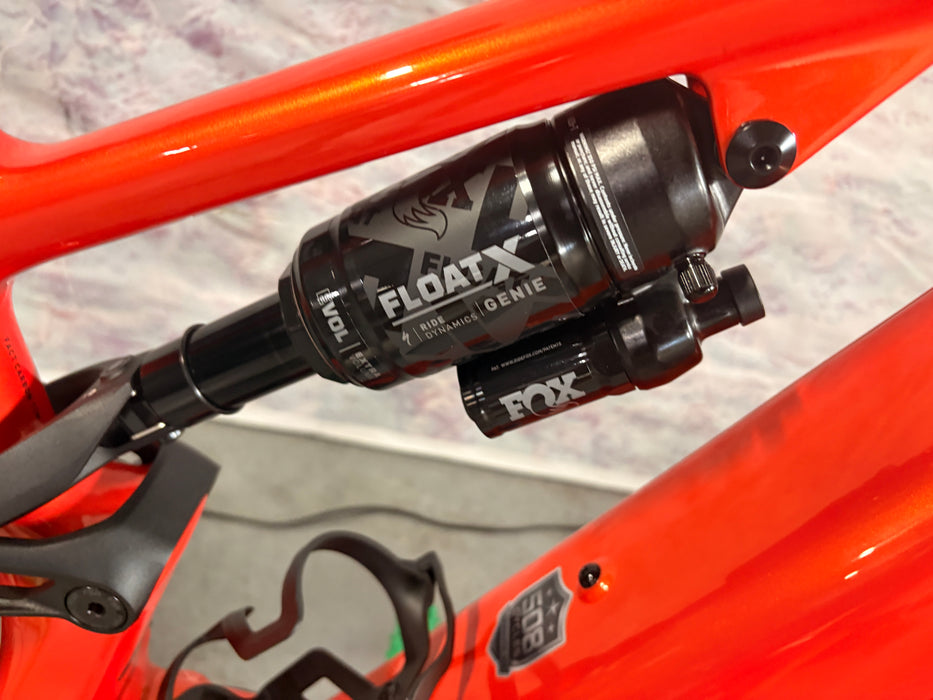

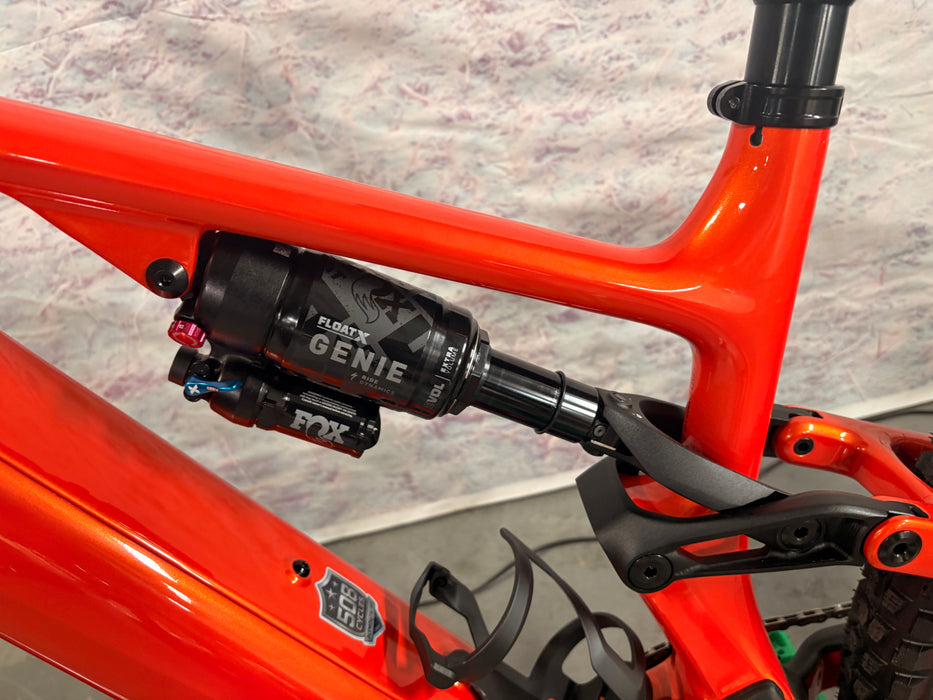

Rear Shock: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
-

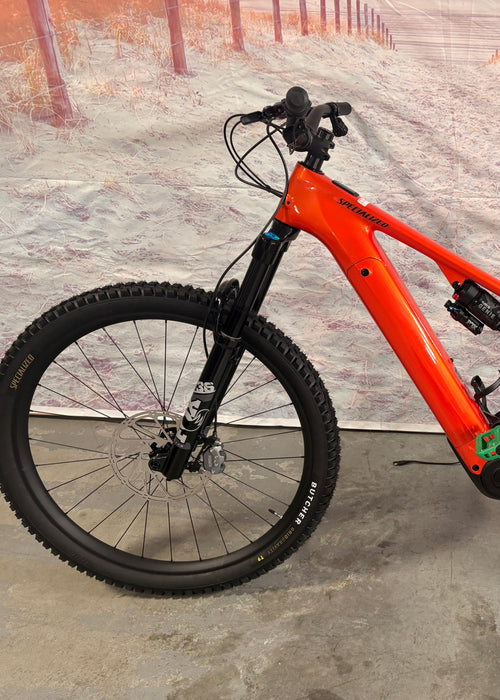

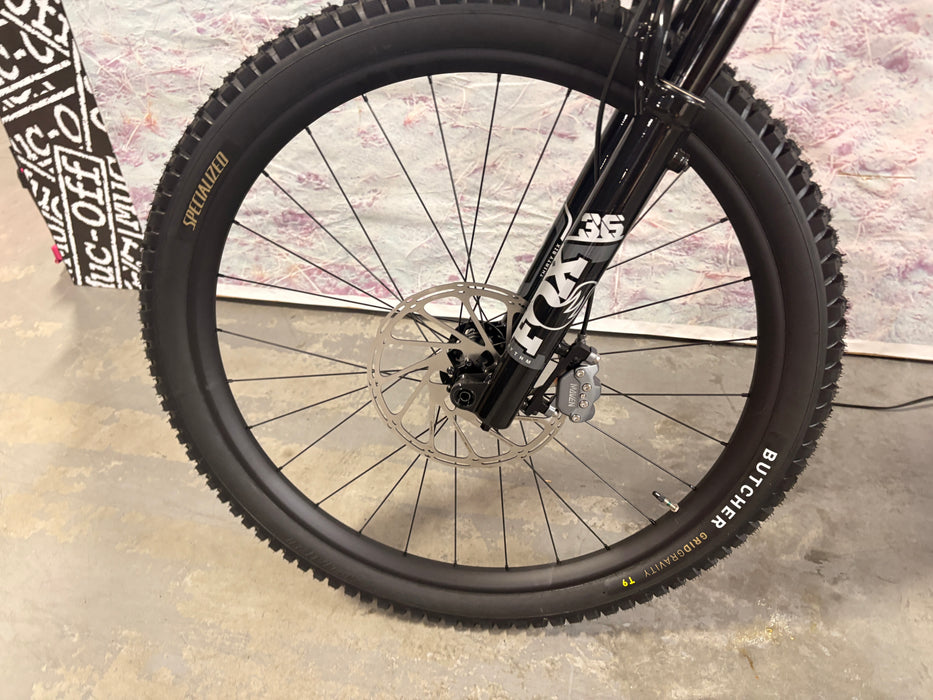

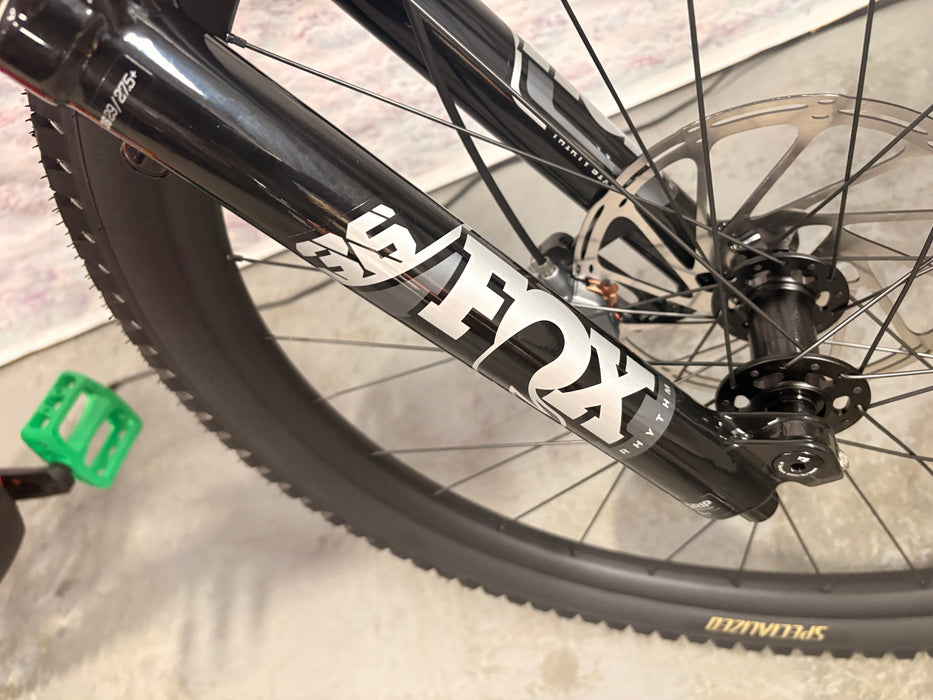

Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
-

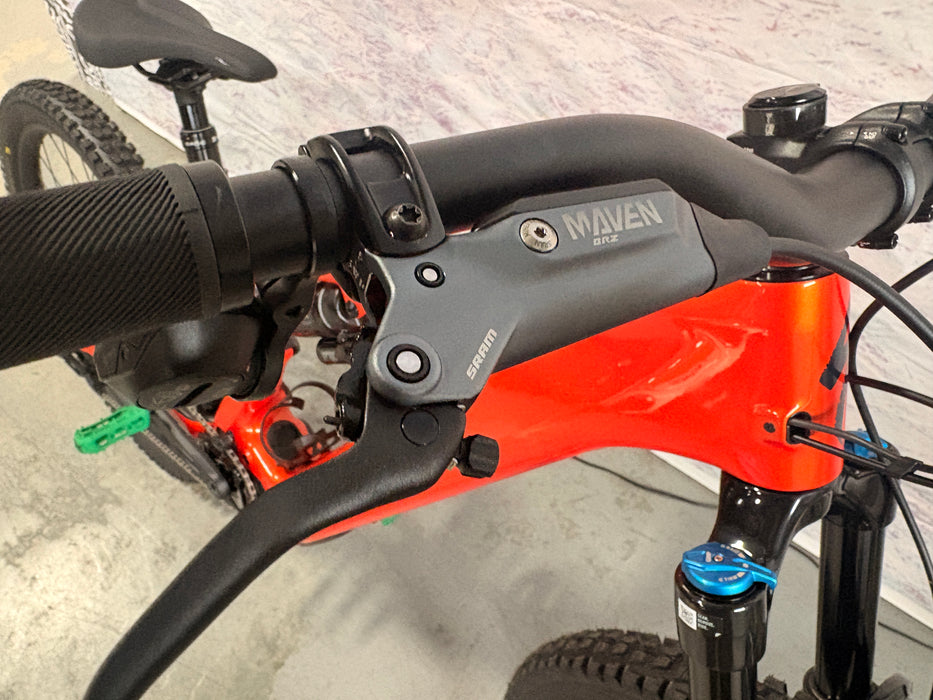

Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
-
Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
Drivetrain
-

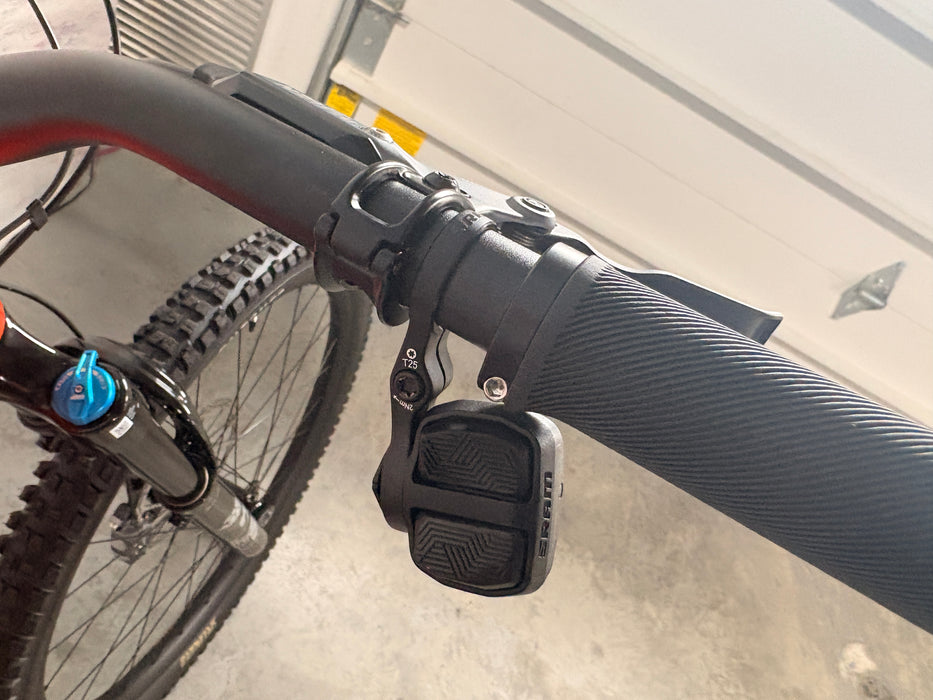

Shift Levers: SRAM AXS POD Controller
-

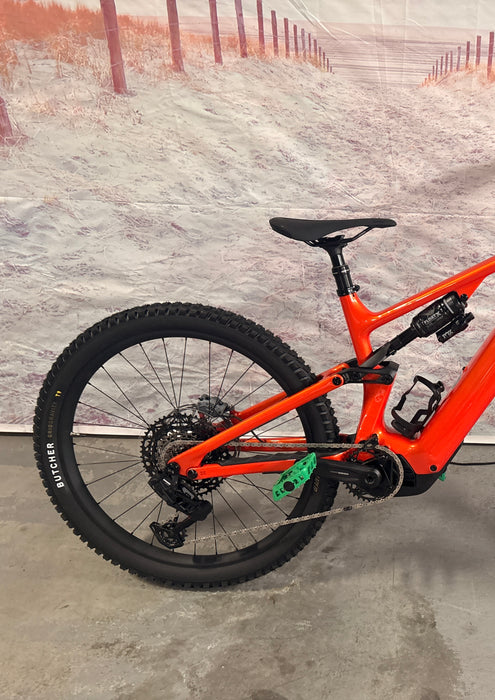

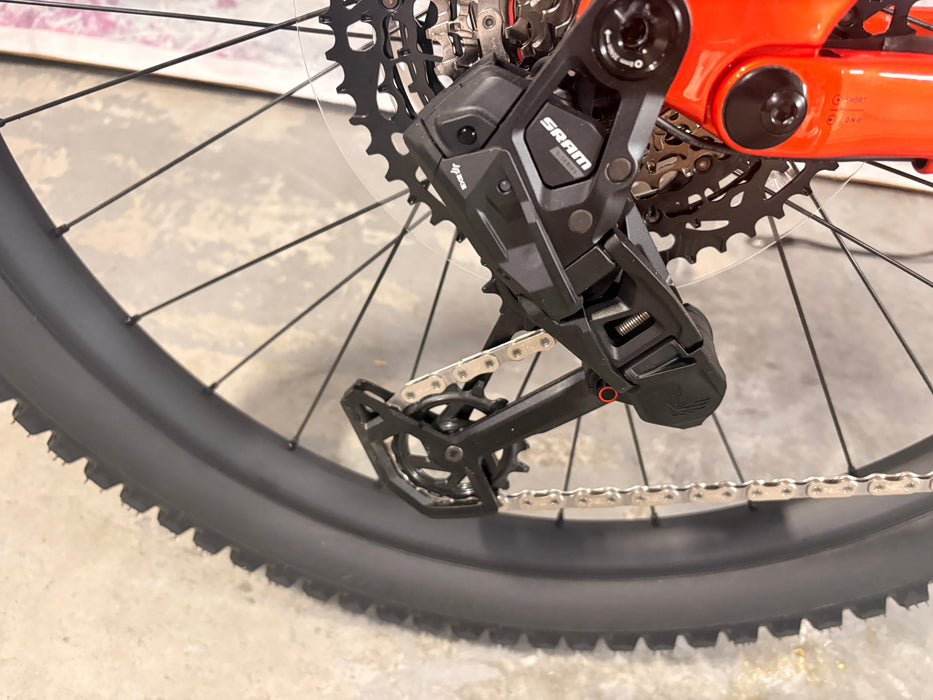

Rear Derailleur: SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
-
Cassette: SRAM 12-speed,10-52t
-
Chain: SRAM GX Eagle Transmission Flattop Chain
-

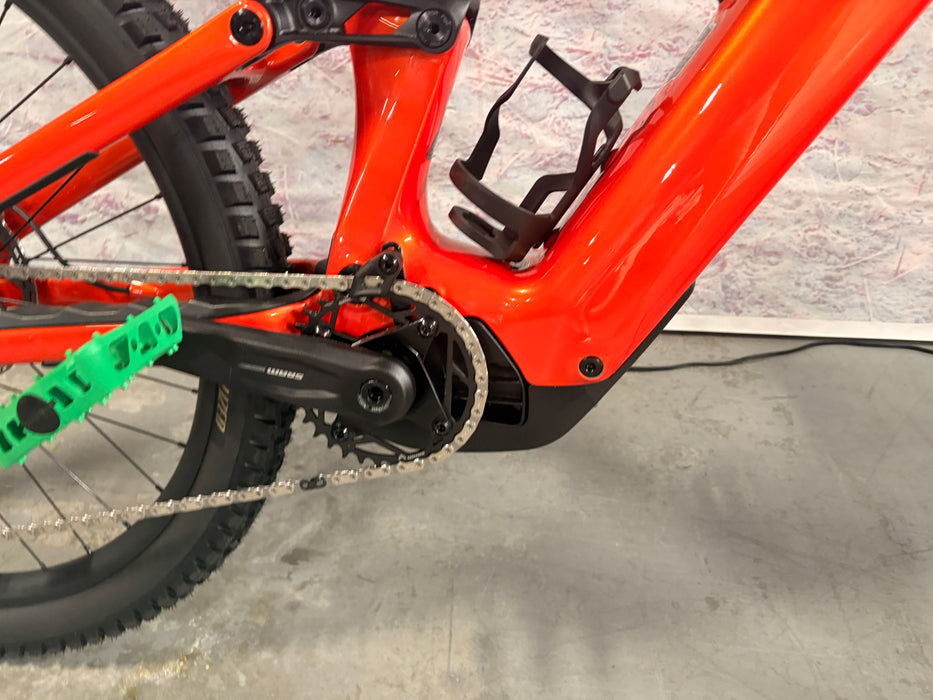

Crankset: SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
-
Chainrings: SRAM T-type ring, 34T, 104 BCD, steel
Wheels & Tires
-
Rims: Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
-
Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
-
Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
-
Spokes: DT Swiss Industry
-

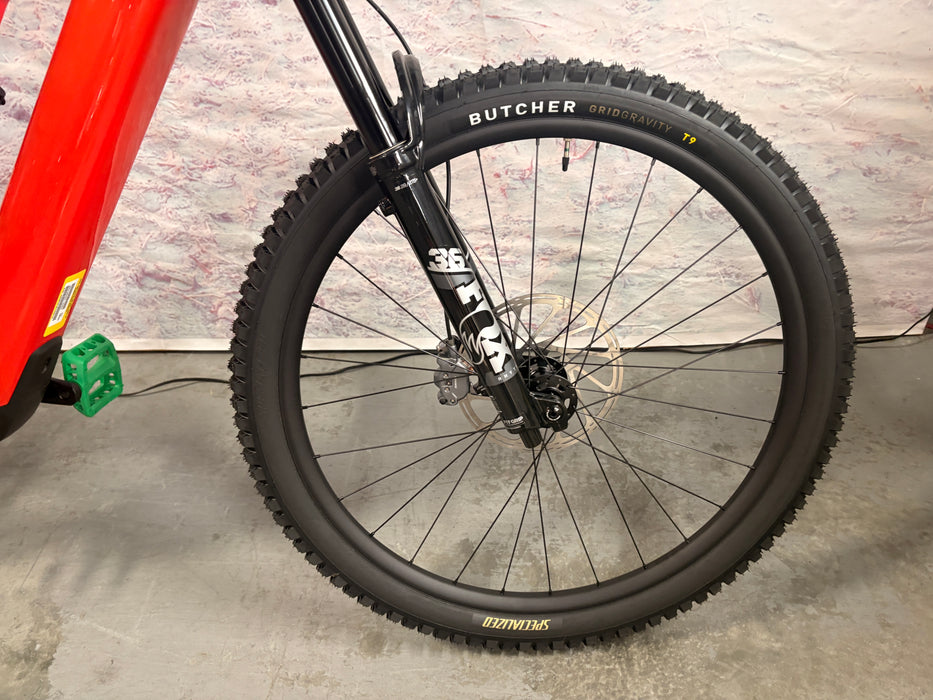

Front Tire: Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 29x2.3"
-

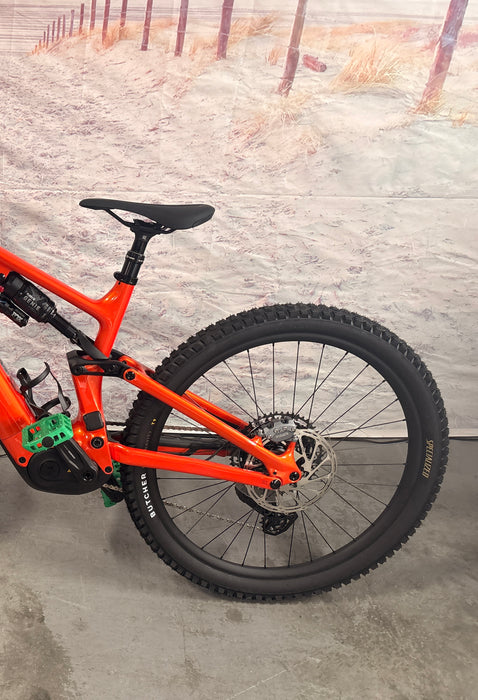

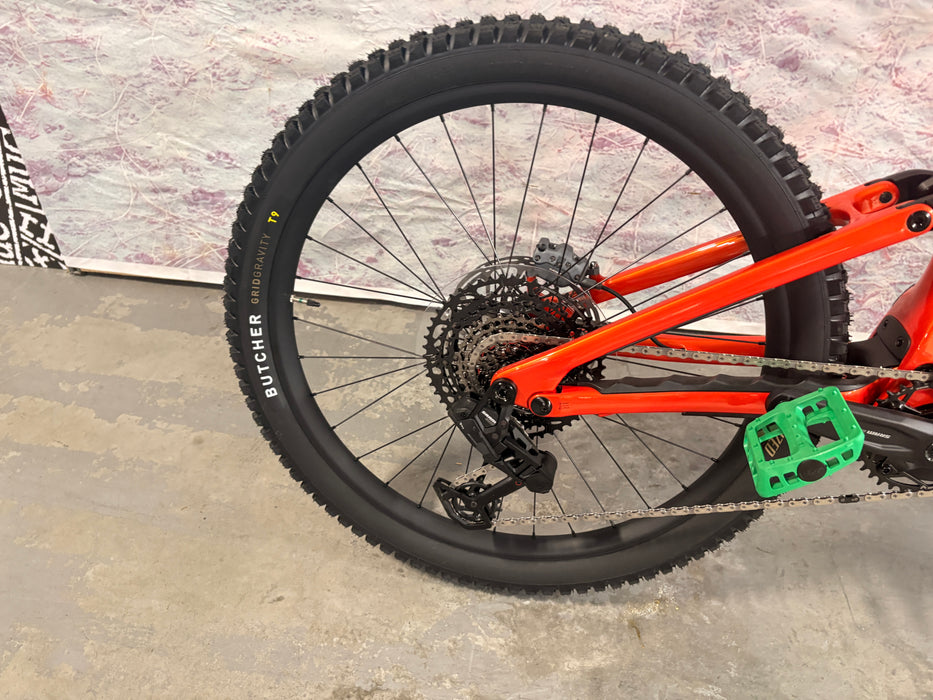

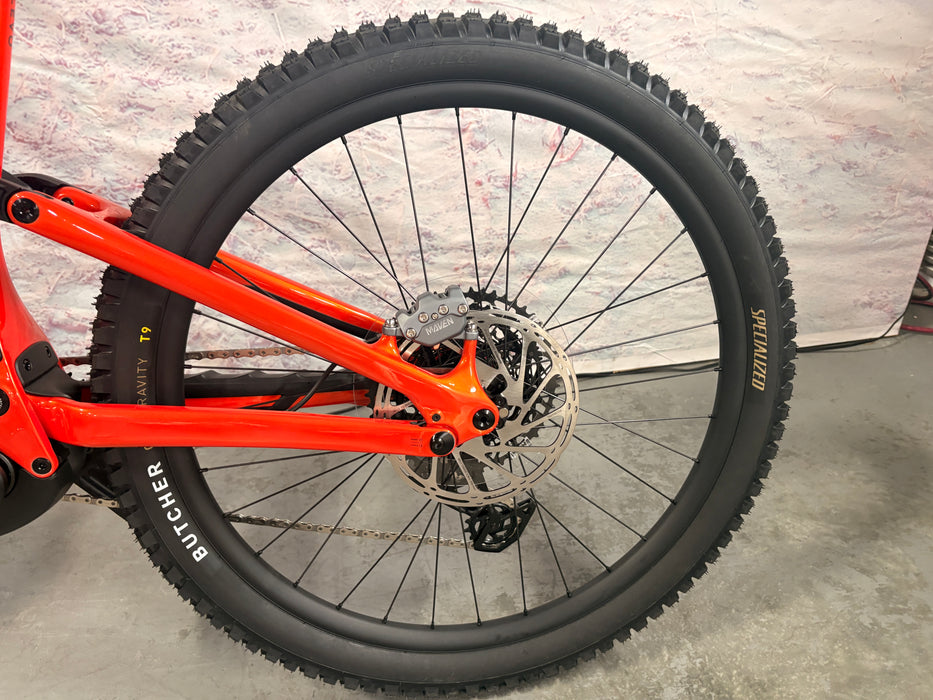

Rear Tire: Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 27.5x2.3"
-
Inner Tubes: Standard, Presta valve
Cockpit
-
Stem: Alloy Trail Stem, 35mm bar bore
-
Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
-

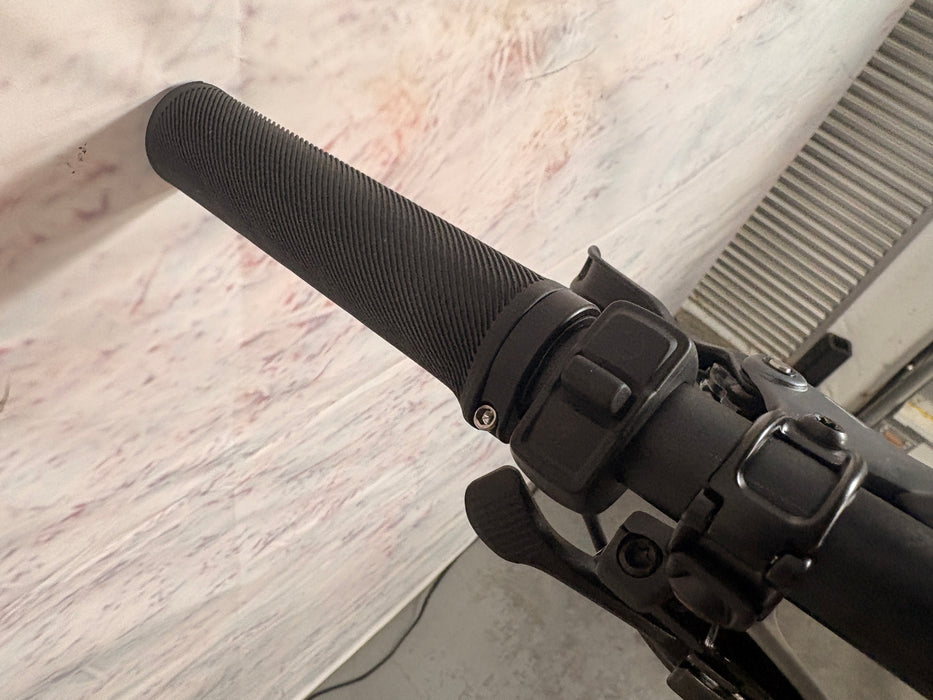

Grips: Specialized Trail Grips
-

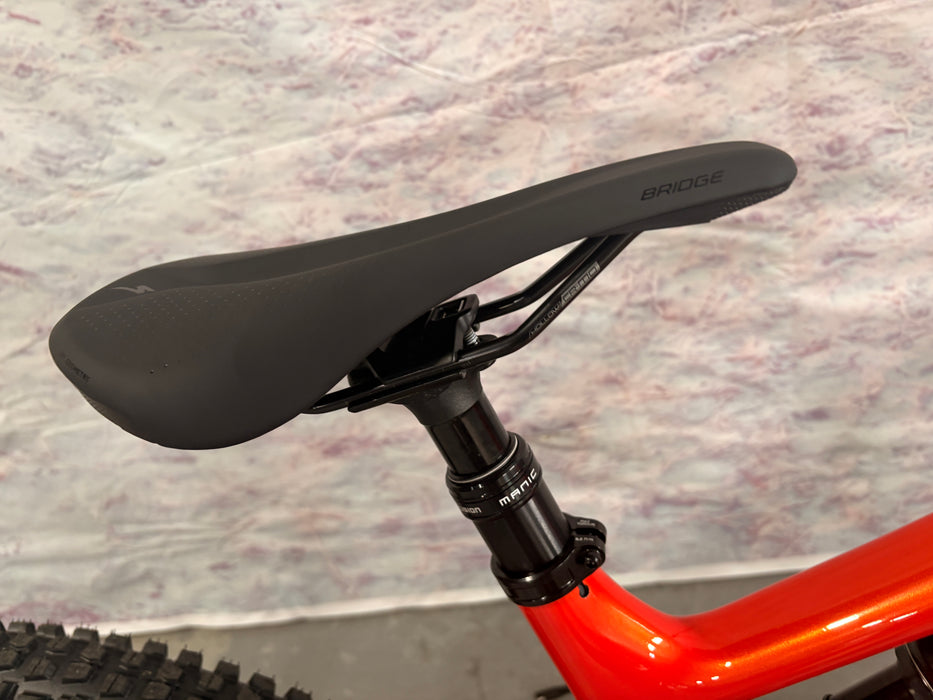

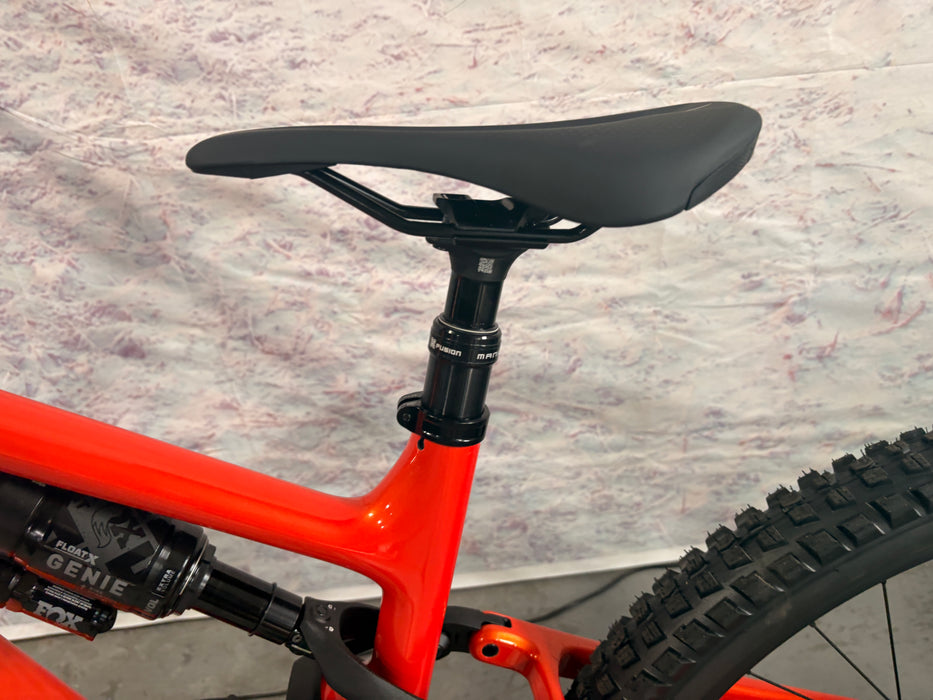

Saddle: Bridge Comp, Hollow Cr-mo rails
-
Seatpost: Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
-
SWAT: SWAT internal downtube storage
Product Details
-
Product ID: 218708
-
Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
Weight
-
Weight: 24.41 kg (53 lb, 13.0 oz)
-
Weight Size: S3
