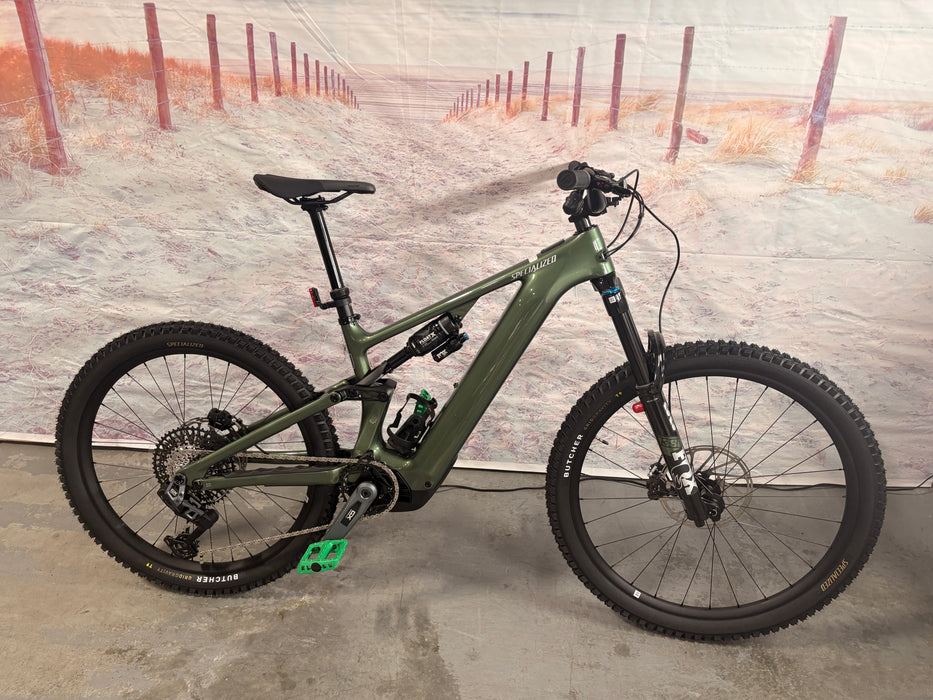

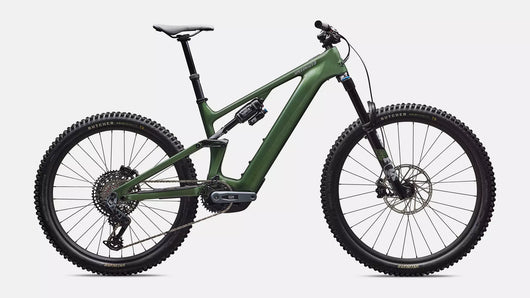

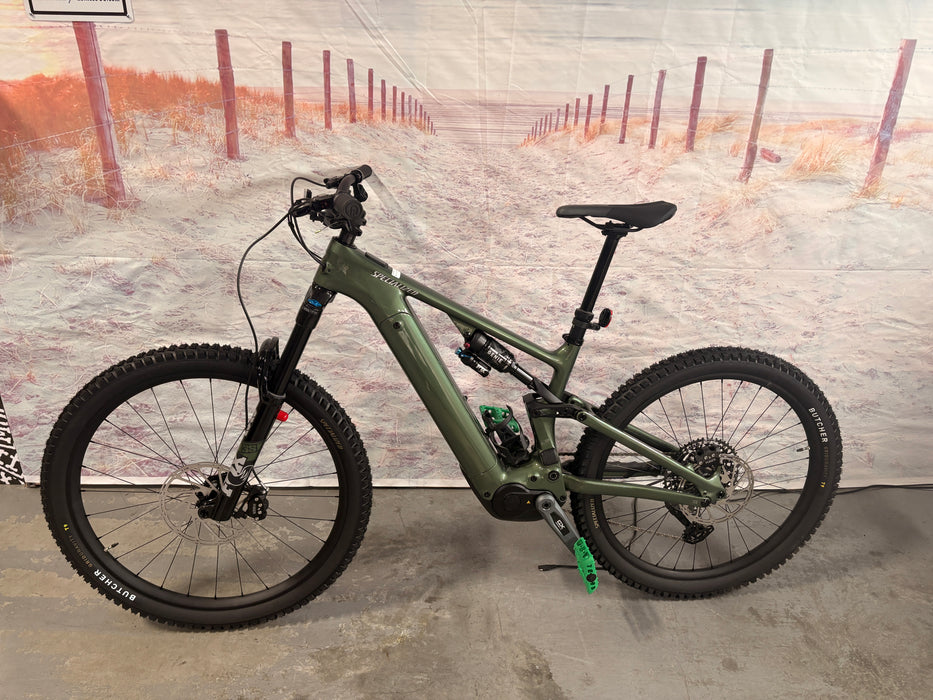

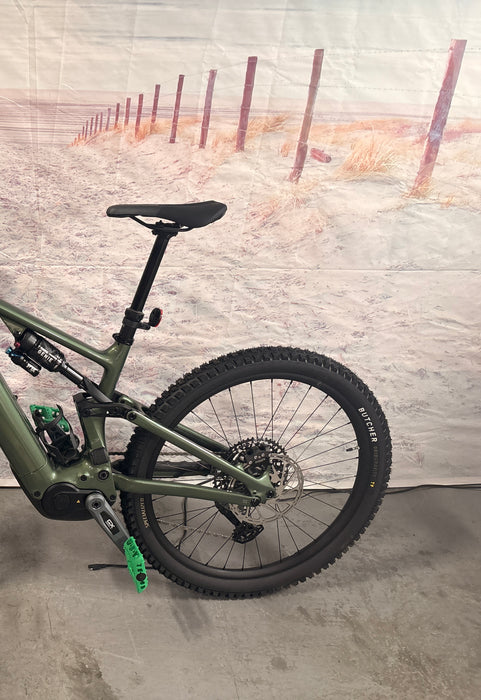

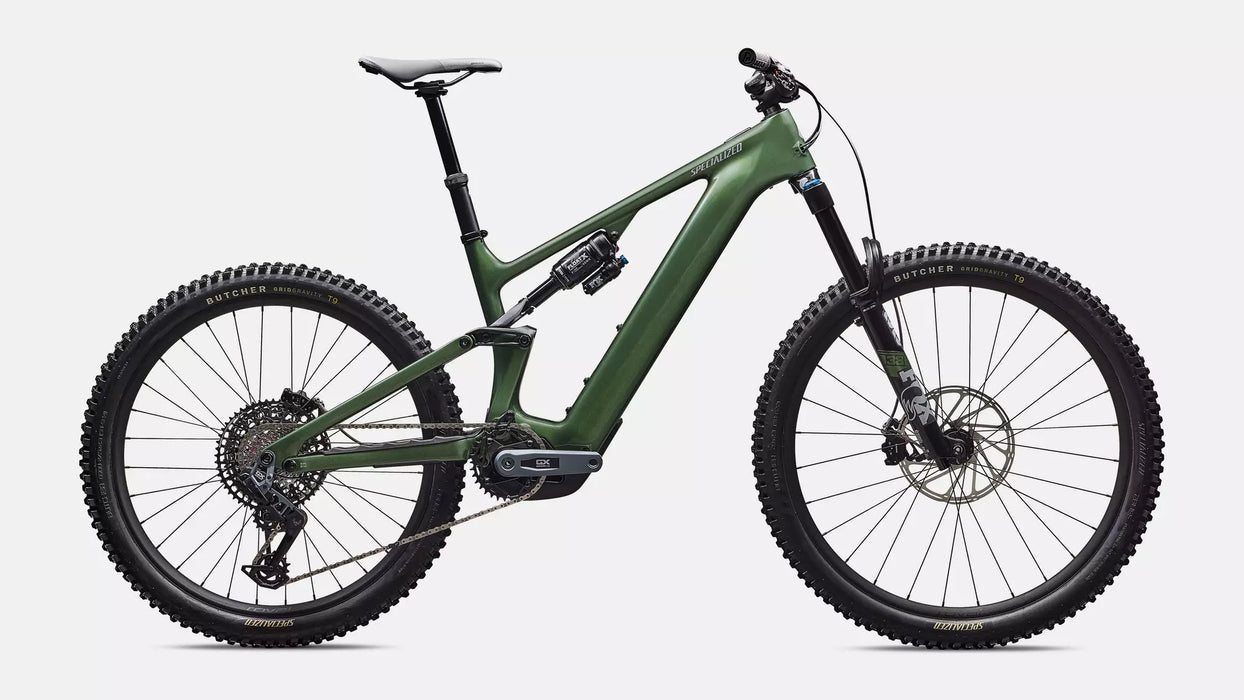

Specialized Turbo Levo 4 Expert Demo Gloss Cypress Metallic / Silver Dust S5

About 5 miles*

Store Display Demo. May have minor scratches from customers sitting on it for fit and/or parking lot test rides. Contact Us for exact miles.

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range. The Specialized Turbo Levo 4 Expert combines a FACT 11m carbon chassis with the Specialized 3.1 motor, 840Wh battery, FOX Performance Elite suspension, SRAM GX Eagle Transmission, and mixed 29/27.5-inch wheels.

Color: Gloss Cypress Metallic / Silver Dust
Size: S5

Technical Specifications

E-Bike

• Motor: Specialized 3.1 Motor, 105Nm torque, 810W peak power
• Battery: 840Wh battery
• UI/Remote: MasterMind T3 Display System, 2.2-inch high-resolution color screen, customizable with Specialized app
• Charger: Specialized 4amp charger

Frameset

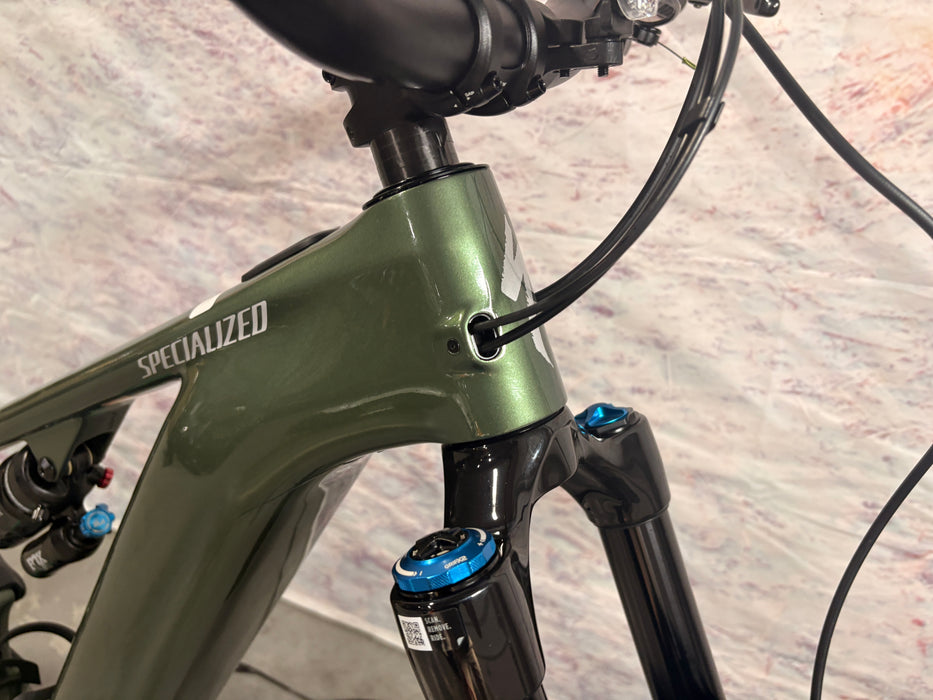

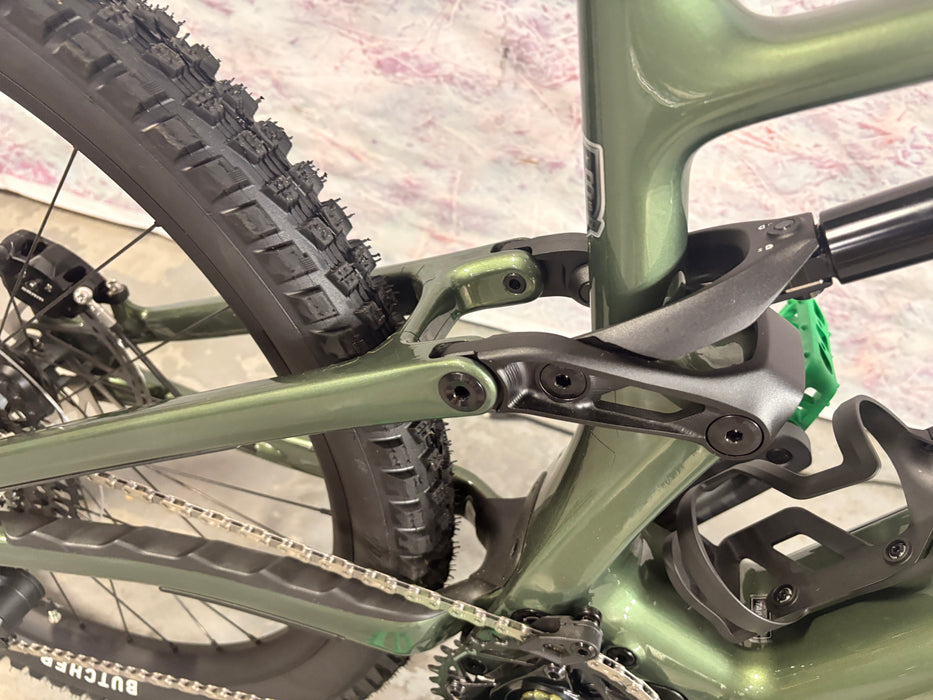

• Frame: Levo 4 FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, SWAT storage, 150mm rear travel, side-entry battery, fork travel compatible up to 180mm
• Seat Binder: Alloy, 38.6mm

Suspension

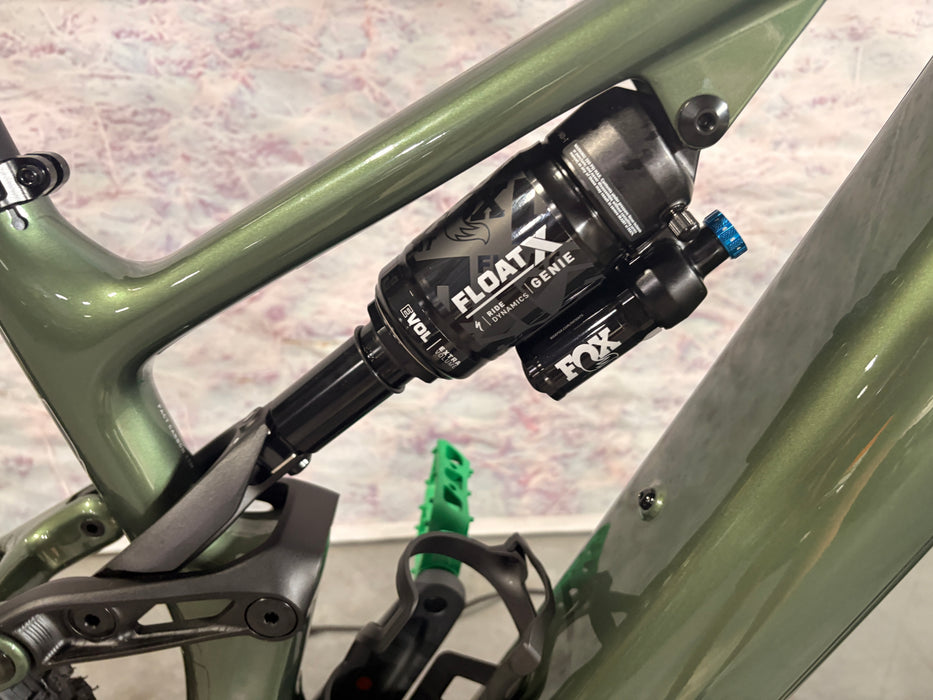

• Rear Shock: FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3-setting Open-mode tuning range, low-speed rebound adjustment

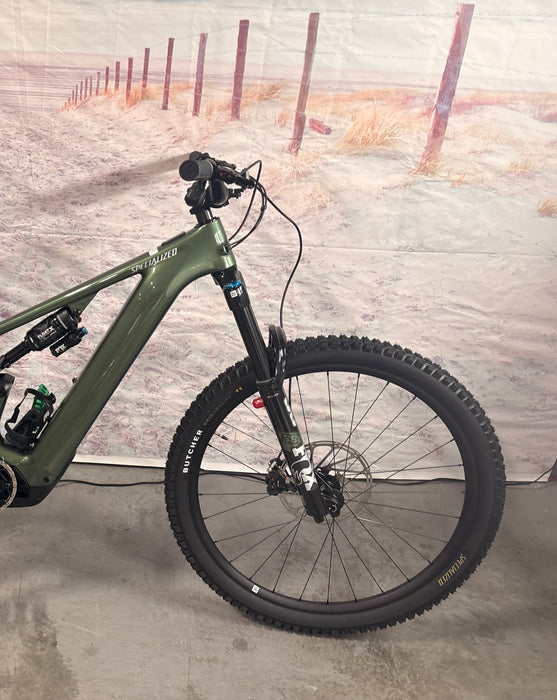

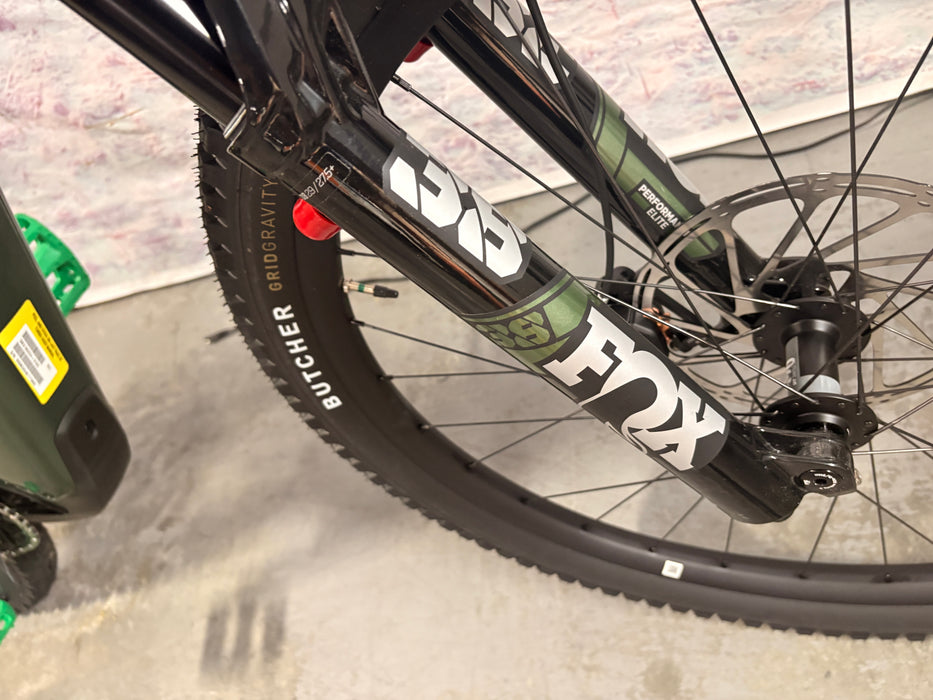

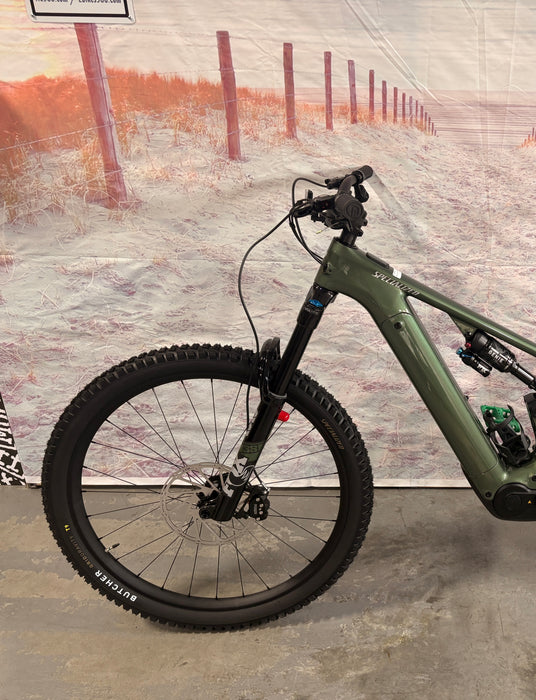

• Fork: FOX 38 Performance Elite, 29-inch, GRIP X2 damper, 15x110mm axle, 44mm offset, 160mm travel

Brakes

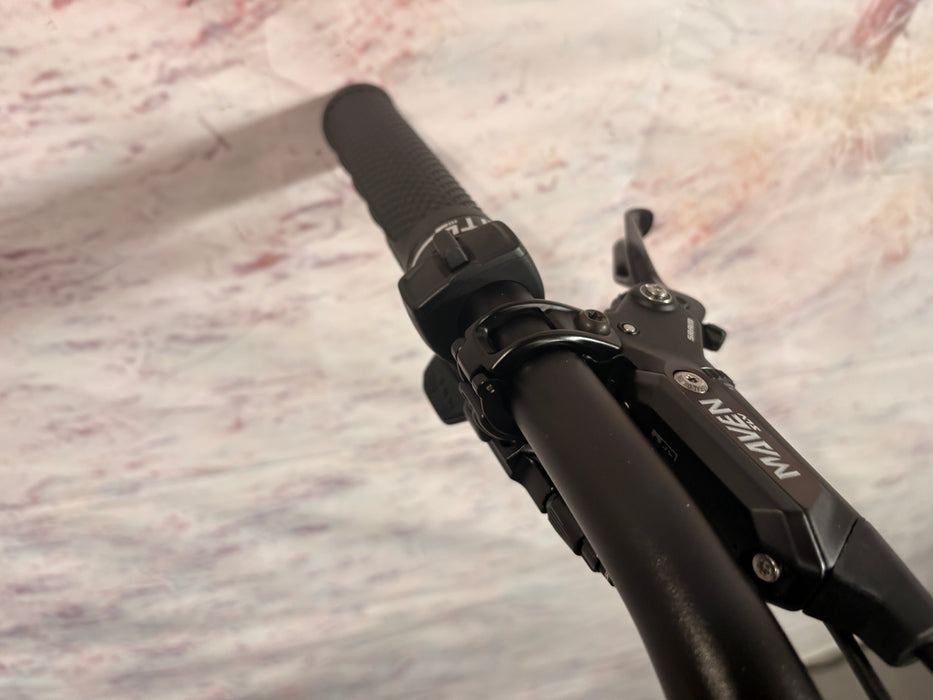

• Front Brake: SRAM Maven Silver, 4-piston hydraulic disc, 220mm rotor
• Rear Brake: SRAM Maven Silver, 4-piston hydraulic disc, 200mm rotor

Drivetrain

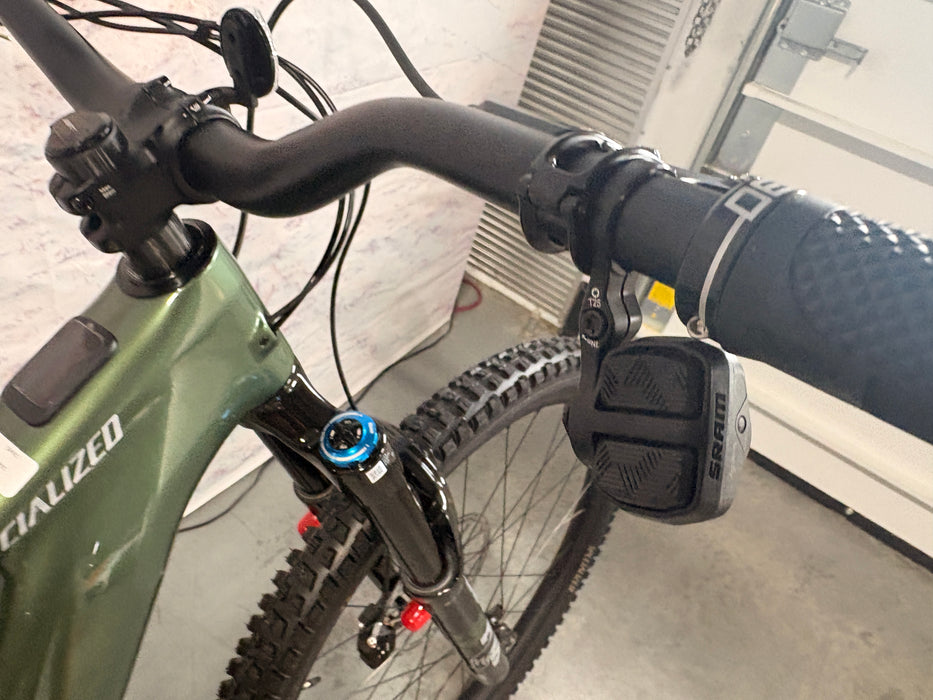

• Shift Levers: SRAM AXS Pod Controller

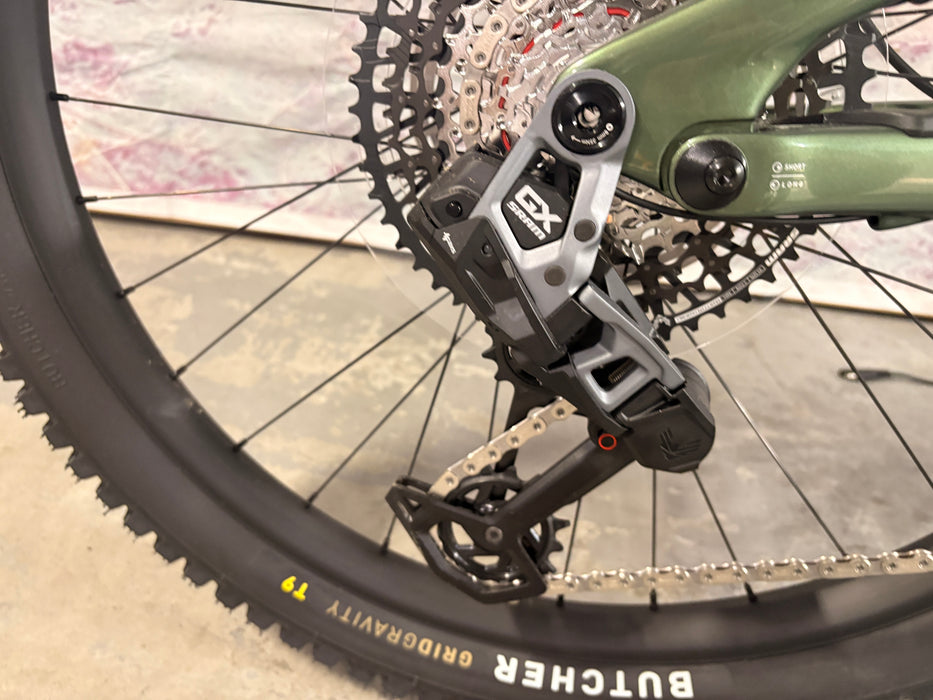

• Rear Derailleur: SRAM GX Eagle Transmission with wired SRAM AXS battery connection powered from the Levo 4 main battery

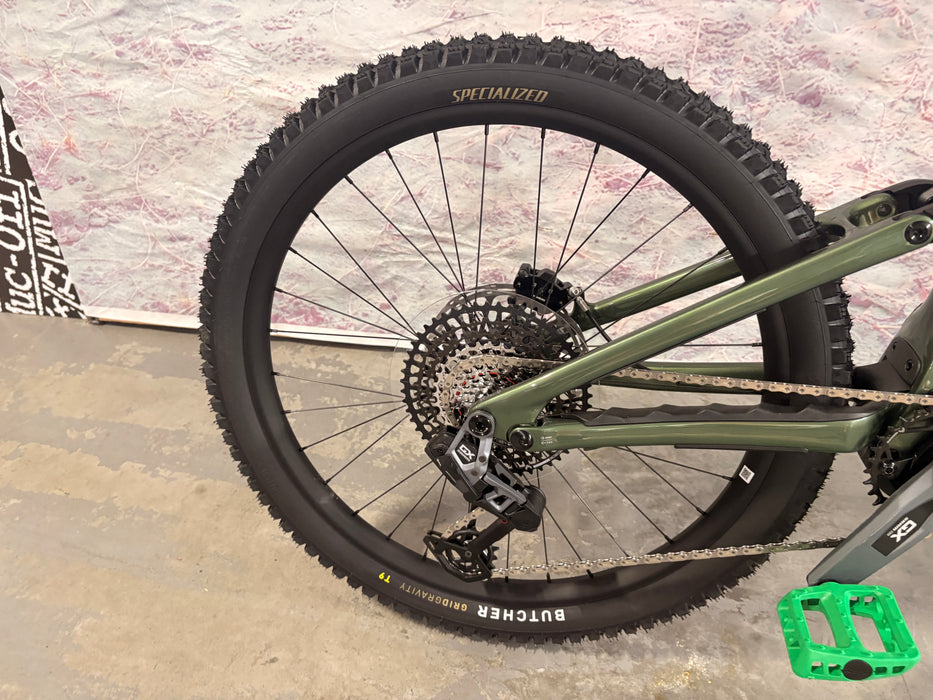

• Cassette: SRAM GX Eagle Transmission, 12-speed, 10-52t
• Chain: SRAM GX Eagle Transmission Flattop

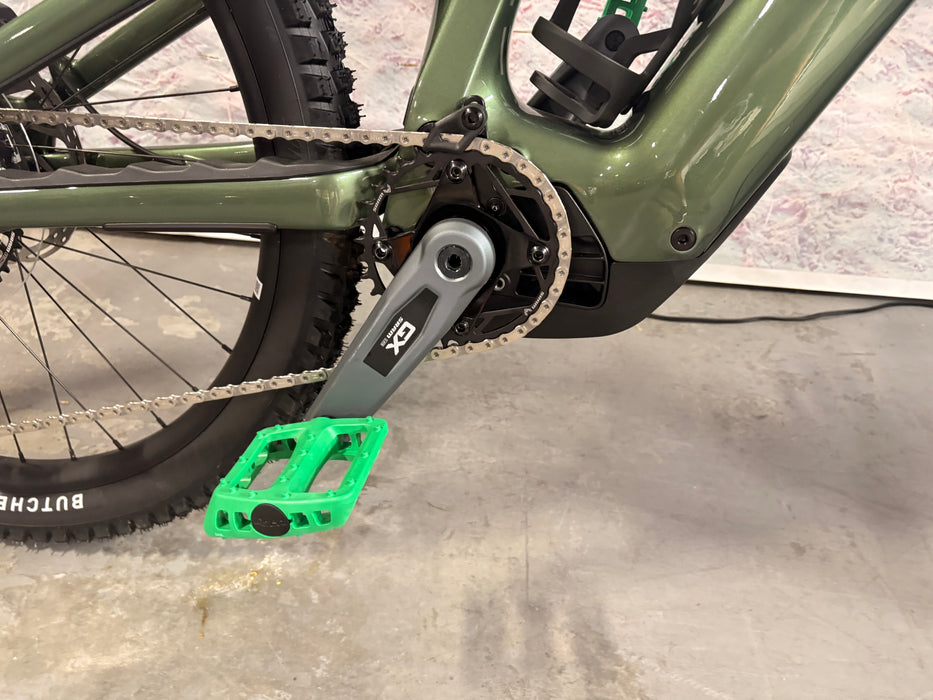

• Crankset: SRAM GX Eagle, ISIS interface, integrated guard, 55mm chainline, 155mm
• Chainring: SRAM 34t T-Type, 104 BCD, steel

Wheels & Tires

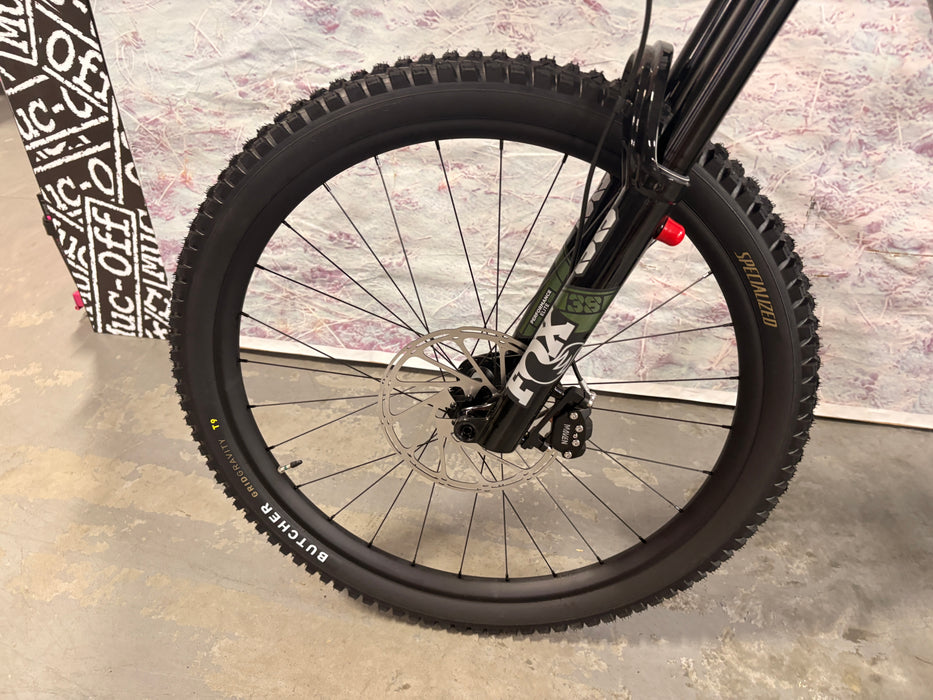

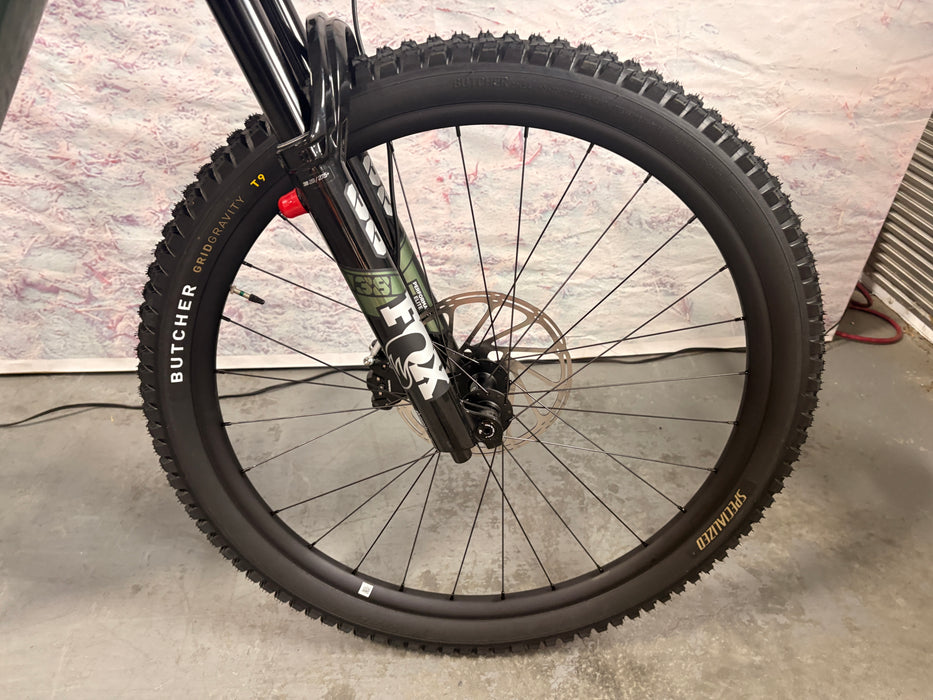

• Front Wheel: Roval Traverse Alloy 29-inch, DT Swiss 370, 15x110mm, 28h

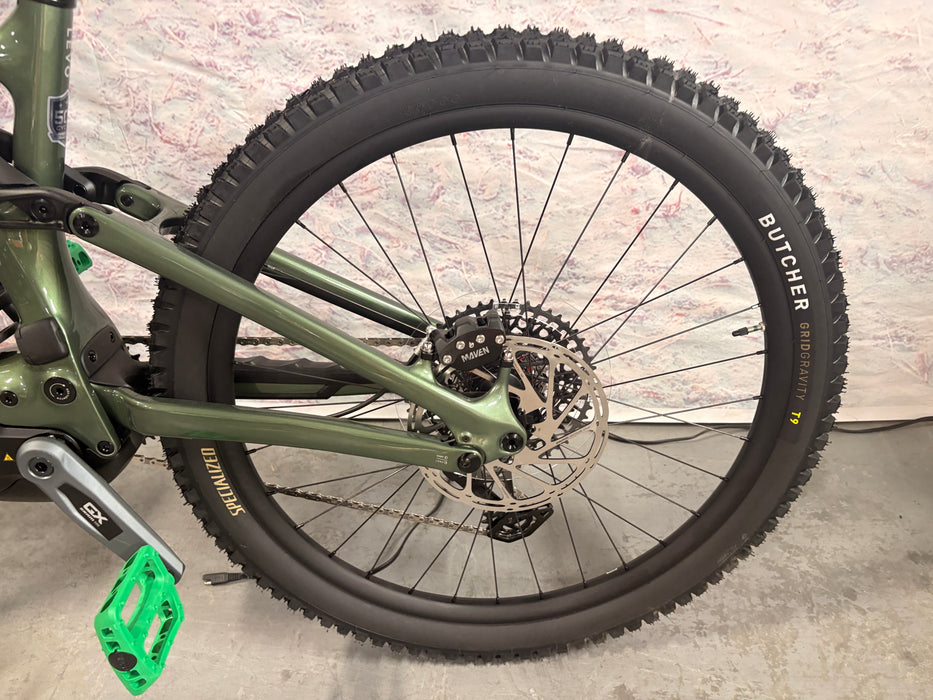

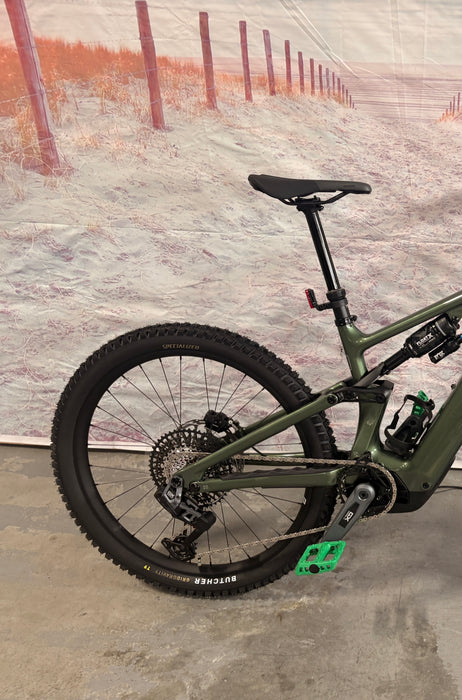

• Rear Wheel: Roval Traverse Alloy 27.5-inch, DT Swiss 370 XD freehub, 12x148mm, 32h
• Front Tire: Specialized Butcher GRID Gravity, GRIPTON T9, 2Bliss Ready, 29x2.3
• Rear Tire: Specialized Butcher GRID Gravity, GRIPTON T9, 2Bliss Ready, 27.5x2.3
• Inner Tubes: Standard, Presta valve

Cockpit

• Stem: Alloy Trail Stem, 35mm bar bore

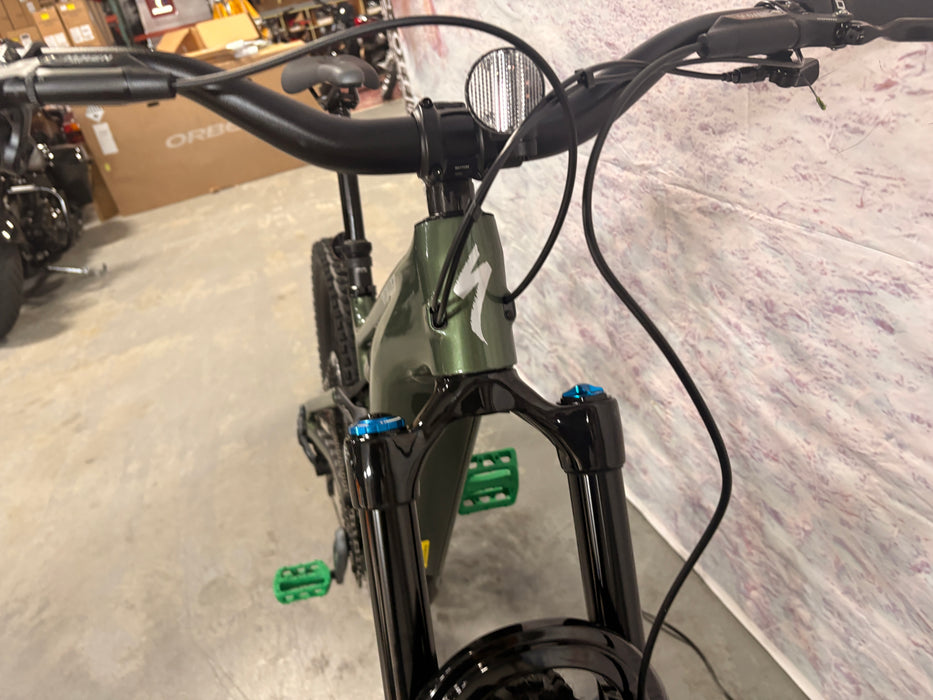

• Handlebar: Alloy, 35mm diameter, 8-degree backsweep, 6-degree upsweep, 800mm width / 50mm rise for S3-S6

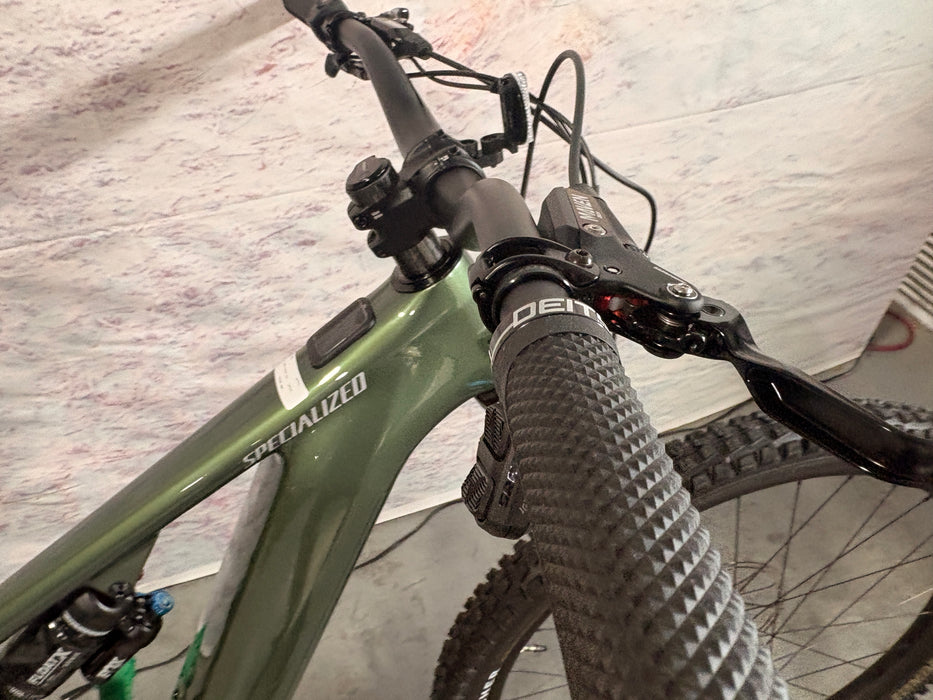

• Grips: Deity Lockjaw

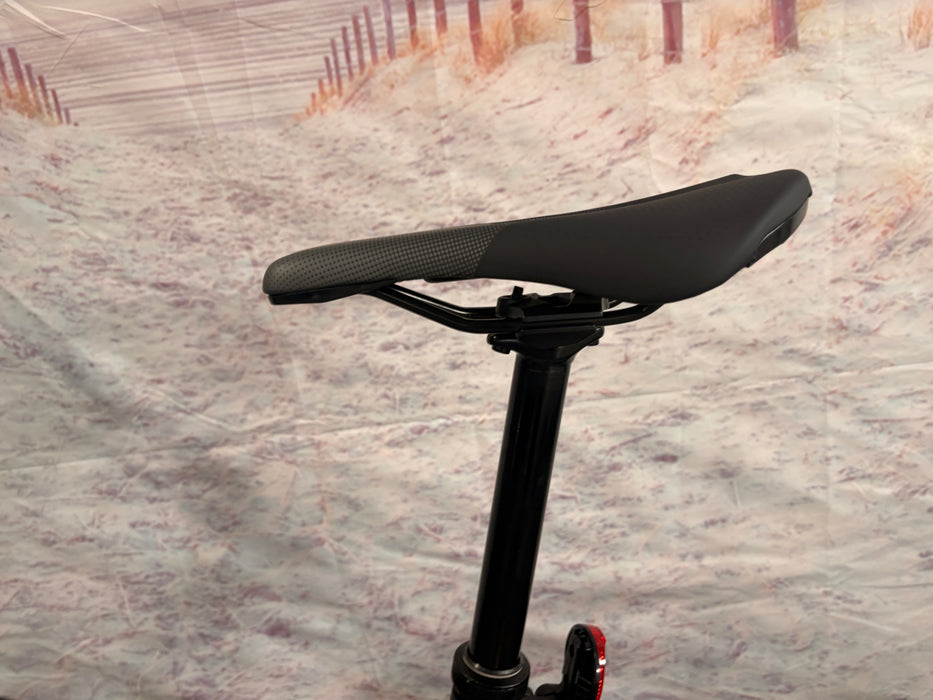

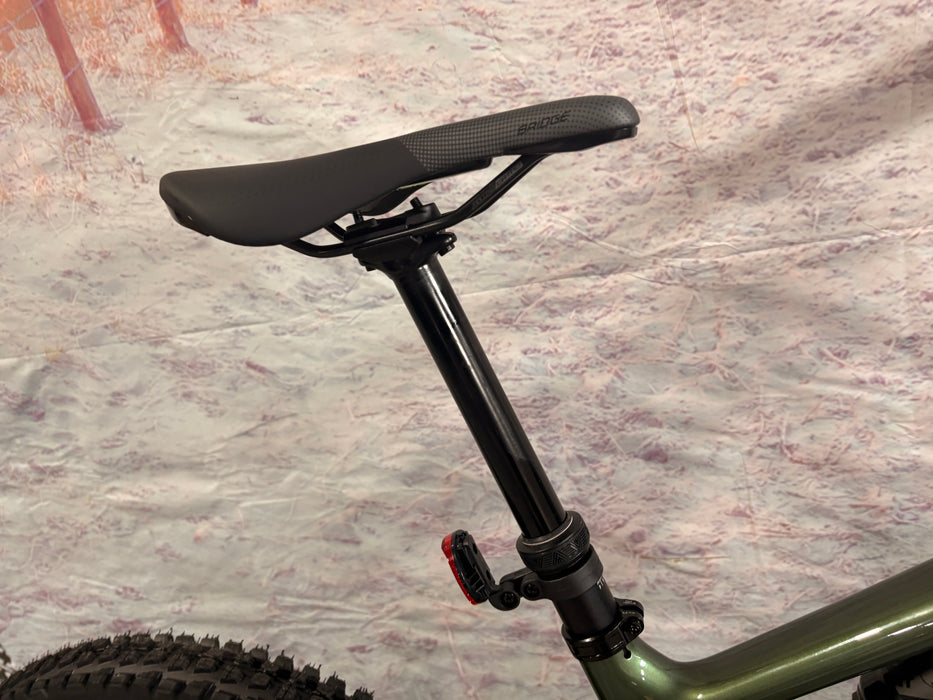

• Saddle: Bridge Comp, hollow Cr-Mo rails
• Seatpost: PNW Loam dropper with travel adjustment, 200mm travel on S4

Accessories

• SWAT: Internal downtube storage
