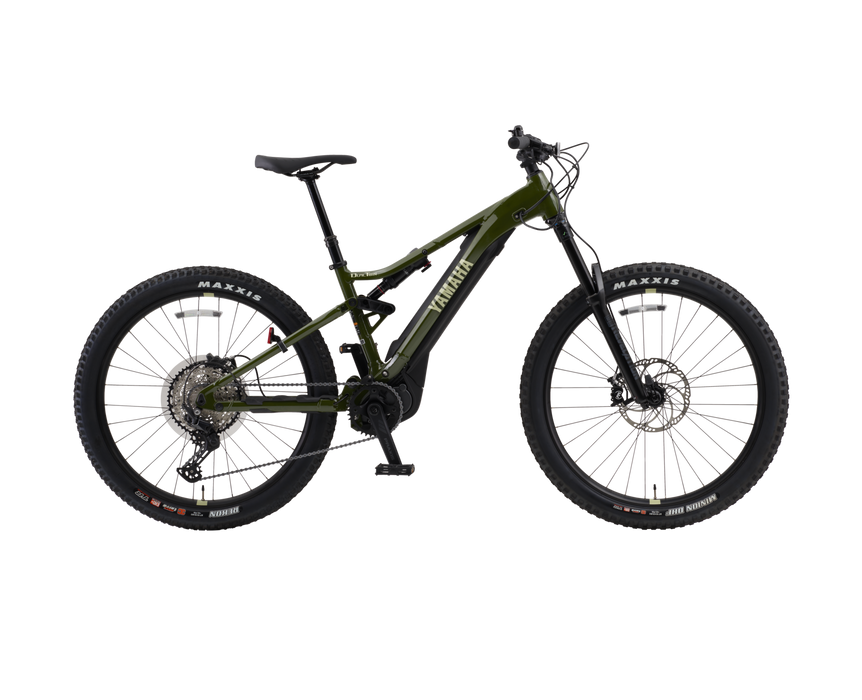

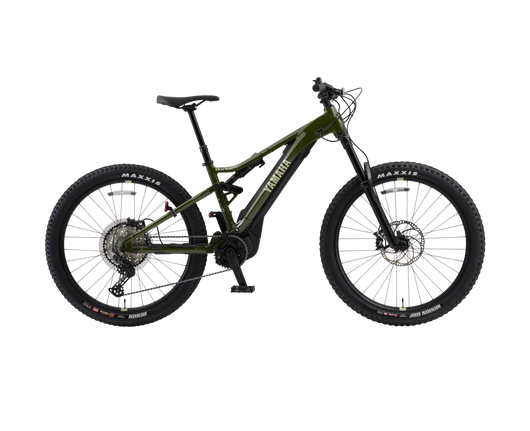

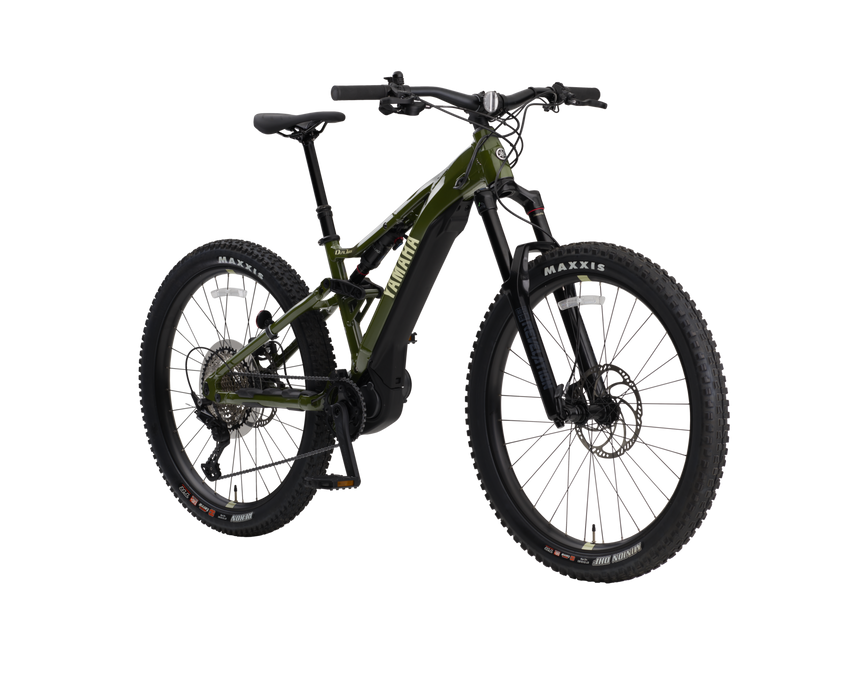

Unleash your passion for adventure with long distance refinement, impressive efficiency, and the massively powerful and super silent All-New PW-X3 drive unit to electrify your ride.
| SUGGESTED USE |
All Mountain Class-1 Ebike Off-Road Trail Use |
| COLORS |
Forest Green
|
| SIZE |
Small, Medium, Large
|
| MSRP |
$5,799 |
| TOTAL WEIGHT |
51.1 lb (Medium) |
| MOTOR |
YAMAHA PW-X3 Class 1 Labeled Centermount ISIS SplinedCrankarm Spindle YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes
Rate power: 250W (nominal), 500W(maximum)
Max torque: 85Nm
Max speed support: 20MPH
Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist |
| CONTROL SWITCH AND MULTI-FUNCTION COMPUTER |
YAMAHA Interface X Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color LED support-mode level light indicator, LED brightness adjustability, battery capacity (4-LED capacity indicators)
|
| BATTERY |
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Anti-Vibration Mounting Plate
Weight: 6.61 lbs
500Wh 36V
Re-charge time: 1-hour 80%, 4-hour 100% |
| FRAME |
YAMAHA Dual Twin Frame
Tapered Headtube
Internal cable/housing routing
2-bolt drive unit mount
12x148 rear axle spacing
Integrated YAMAHA speed sensor harness |
| FORK |
ROCKSHOX REVELATION RC
160mm TRAVEL
35mm Stanchion eMTB rated Motion Control damping with low-speed compression adjustment DebonAir air spring
|
| REAR SHOCK |
ROCKSHOX DELUXE SELECT +
150mm travel
210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment
2-position compression adjustment
|
| HEADSET |
Integrated 1 1/8" |
| STEM |
Alloy 4-both faceplate
35.0 diameter
40mm length |
| HANDLEBARS |
Alloy
35.0 diameter
780mm width
30mm rise |
| GRIPS |
VELO Single Ring Locking |
| SEATPOST/SADDLE CLAMP |
TRANS-X 30.9 dia.
TRAVEL (S) 125mm (M) 150mm (L) 170mm |
| SEATPOST COLLAR |
Single-bolt 35.0mm |
| SADDLE |
YAMAHA anti-slip finish with hand rail tail |
| AXLES |
MAXLE 15MM X 110MM BOOST THRU AXLE |
| SHIFTERS |
Shimano DEORE SL-M6100-R |
| FRONT DERAILLEUR |
N/A |
| REAR DERAILLEUR |
Shimano DEORE RD-M6100-SGS |
| CRANKARM |
PRAXIS E-CRANK ARM
165mm LENGTH |
| CHAIN |
KMC eTURBO EPT 122 links |
| CASSETTE |
Shimano SLX CS-M7100-12
12-spd
(10-51T) |
| CHAINRINGS |
PRAXIS 36T |
| BRAKES/ROTORS |
MAGURA MT30
(F) 4-PISTON (R) 2-PISTON
203MM CENTER LOCK ROTOR (F/R)
Two-finger lever |
| RIMS |
YAMAHA 27.5+ Alloy
Tubeless tape installed
Width: 46mm (outside) 40mm (inside) |
| SPOKES |
14g alloy SUS304 |
| HUBS |
Anodized Alloy
Centerlock brake mount
15x110mm BOOST+ (front)
12x148mm MicroSpline freehub Quick Release Thru Axle Type |
| TIRES/TUBES |
MAXXIS 27.5X2.6
(F) MINION DHF (R) REKON |
| ACCESSORIES |
Protective motor and battery covers
ISCG05 chainguuide
Safety bell VP Acrylic pedals
(No Keys) |
| WARRANTY |
3-Year on Frame, Motor, Battery*
Component Manufacturer’s warranty** is supported by YAMAHA |
