The Yes Machine.

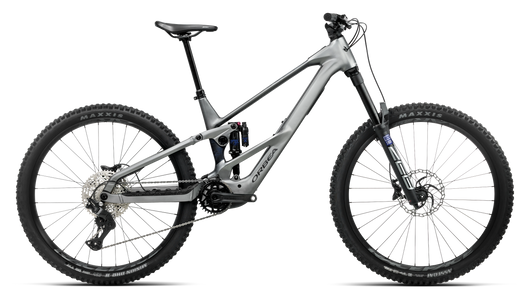

The 2027 Orbea Wild LT H20 is a long-travel electric mountain bike built around Orbea’s Wild Hydro alloy chassis, 170 mm of rear travel, 29-inch wheels and the Avinox M2 drive system. The 800 Wh Avinox battery, aggressive 170 mm suspension and trail-focused component package are designed for technical climbs, fast descents and demanding all-mountain riding.
Key Features
- Orbea Wild Hydro alloy frame with 170 mm rear travel
- Avinox M2 motor with Orbea RS tuning
- Avinox 800 Wh battery
- 170 mm RockShox ZEB Select Rush RC fork
- FOX FLOAT X Performance 2-Position rear shock
- Shimano Deore 12-speed drivetrain
- Shimano MT420 hydraulic disc brakes
- Race Face AR 30c tubeless-ready 29-inch wheels
- OC Mountain Control MC22 dropper post
Technical Specifications
Frame: Orbea Wild Hydro, 29-inch wheels, Concentric Boost 12x148
Fork: RockShox ZEB Select Rush RC, 170 mm
Shock: FOX FLOAT X Performance 2-Pos, 205x65 mm
Headset: Acros ZS56
Motor: Avinox M2
Battery: Avinox 800 Wh
Display: Avinox DPC100
Remote: Avinox BC100
Charger: Avinox Charger 4A
Chainring: e*thirteen Helix Race e*spec Direct Mount 34T, 55 mm chainline
Crank: e*thirteen Helix Core Alloy e*spec
Shifters: Shimano M6200 I-Spec EV
Cassette: Shimano M6200 10-51T, 12-speed
Rear Derailleur: Shimano Deore M7200 SGS Shadow RD+
Chain: Shimano M6100
Chainguide: Orbea eBike chainguide
Handlebar: OC Mountain Control MC30, Rise 20
Stem: OC Mountain Control 20, 0°
Computer Mount: OC Computer Mount CM-05
Grips: OC Lock On
Brakes: Shimano MT420 hydraulic disc
Rotors: Galfer Wave 200 mm front / 200 mm rear
Wheels: Race Face AR 30c Tubeless Ready, 29-inch front / 29-inch rear
Front Tire: Maxxis Assegai EXO TR
Rear Tire: Maxxis Minion 2.40-inch 3C MaxxTerra DD TR
Seatpost: OC Mountain Control MC22
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle: Fizik Terra Aidon X1
Color: Racing Green - White Cream (Gloss)
