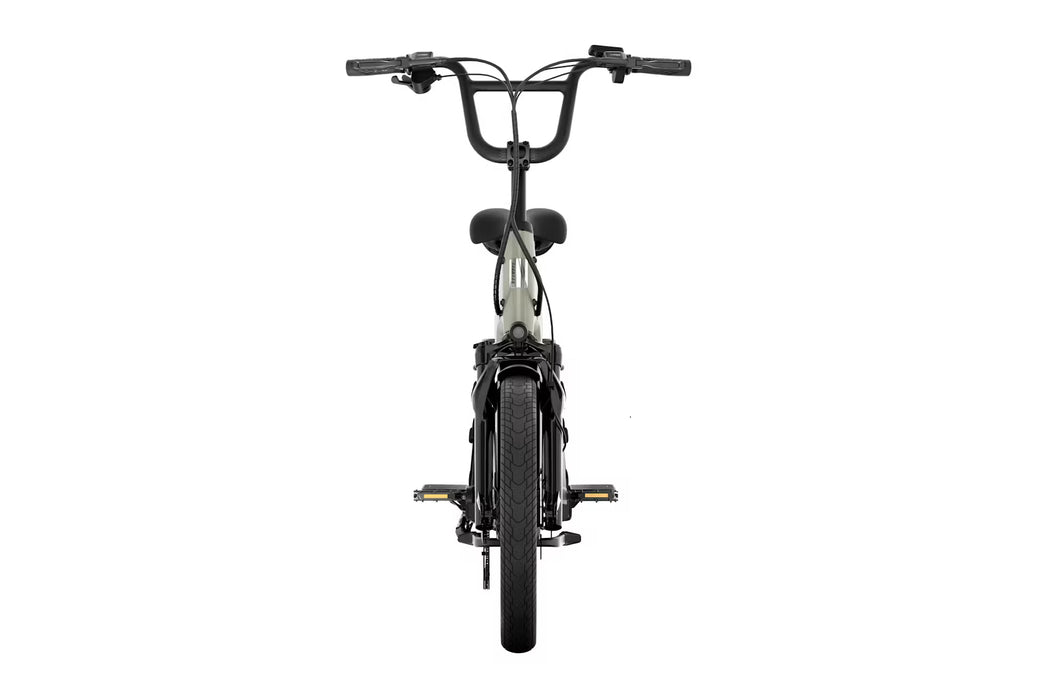

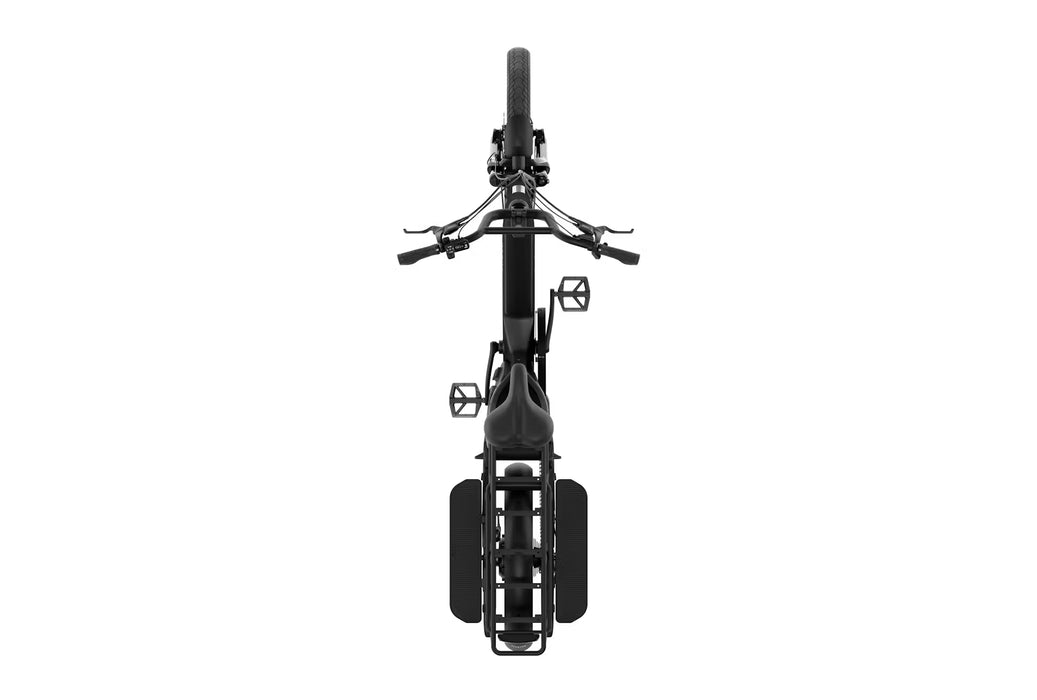

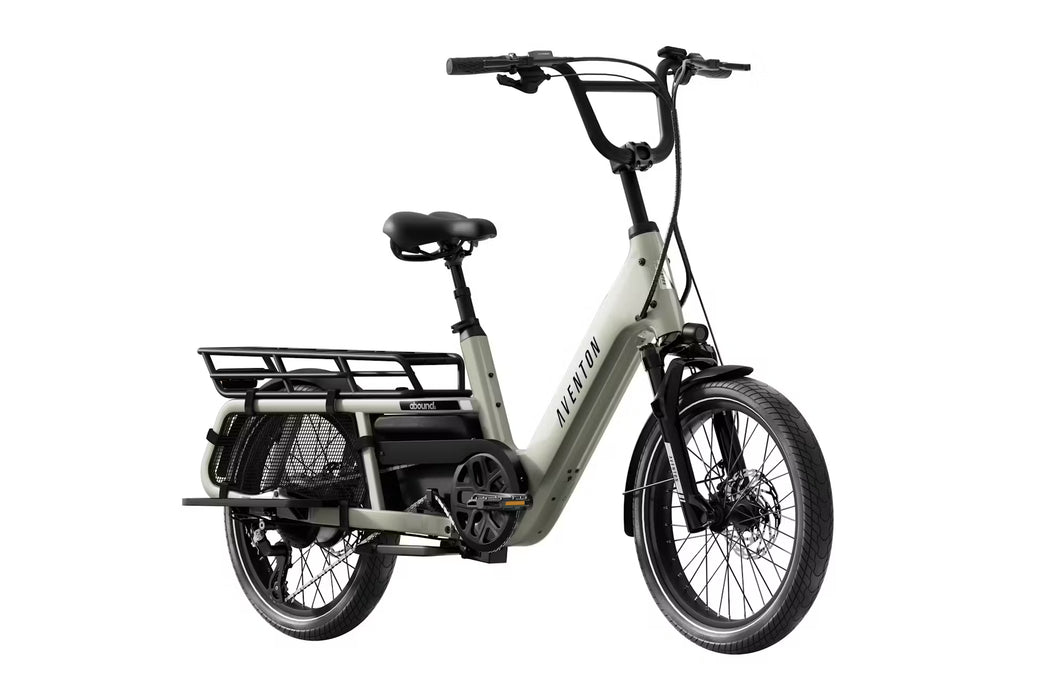

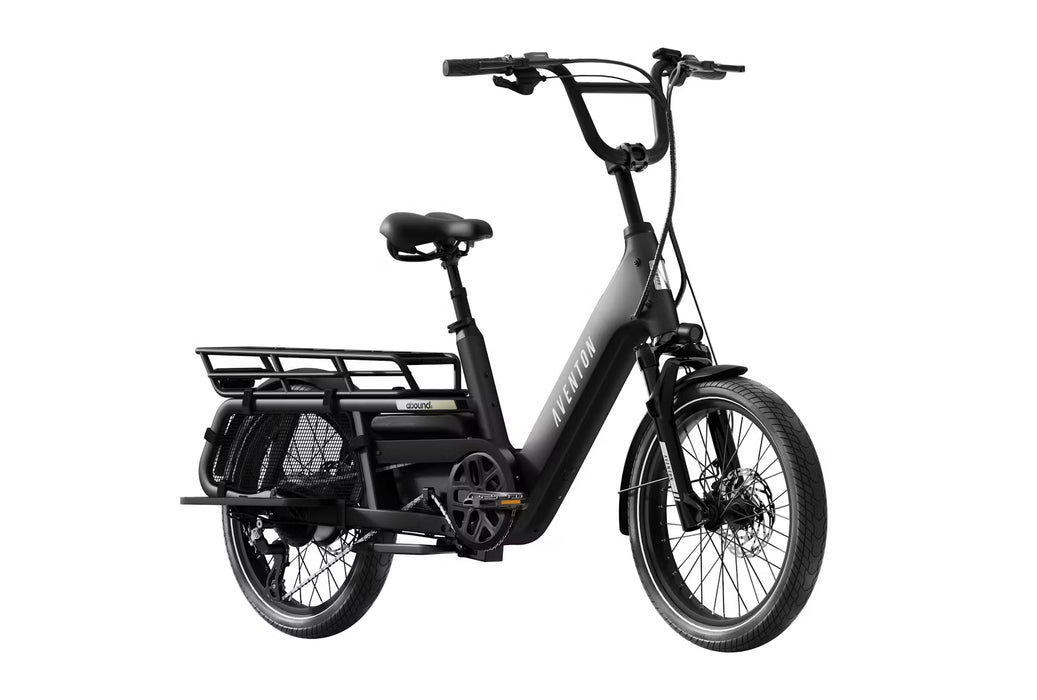

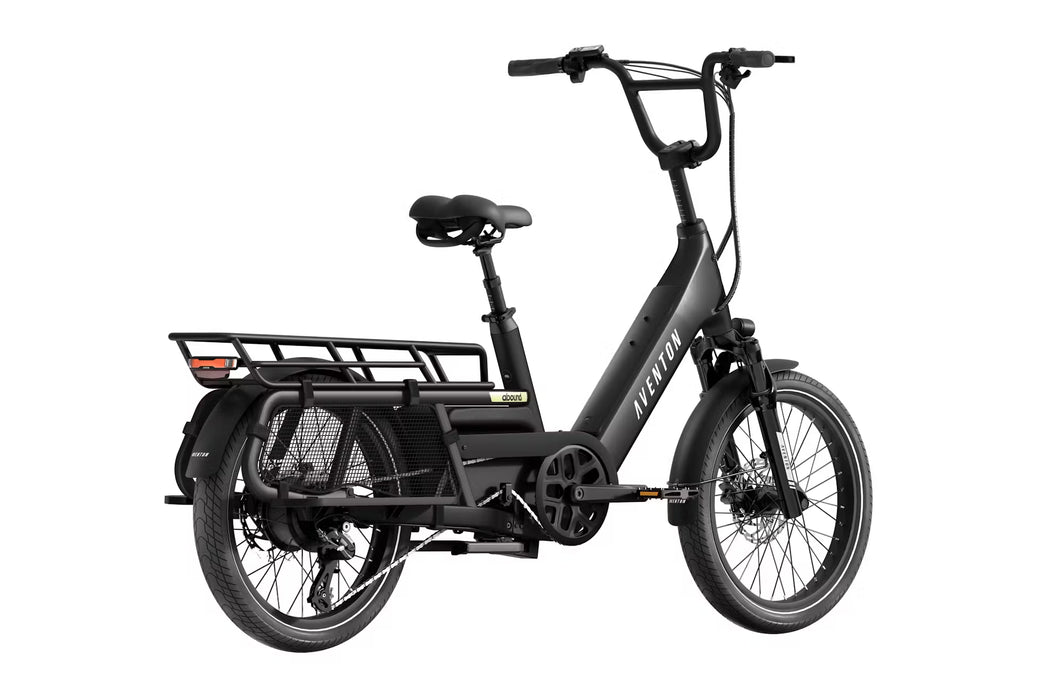

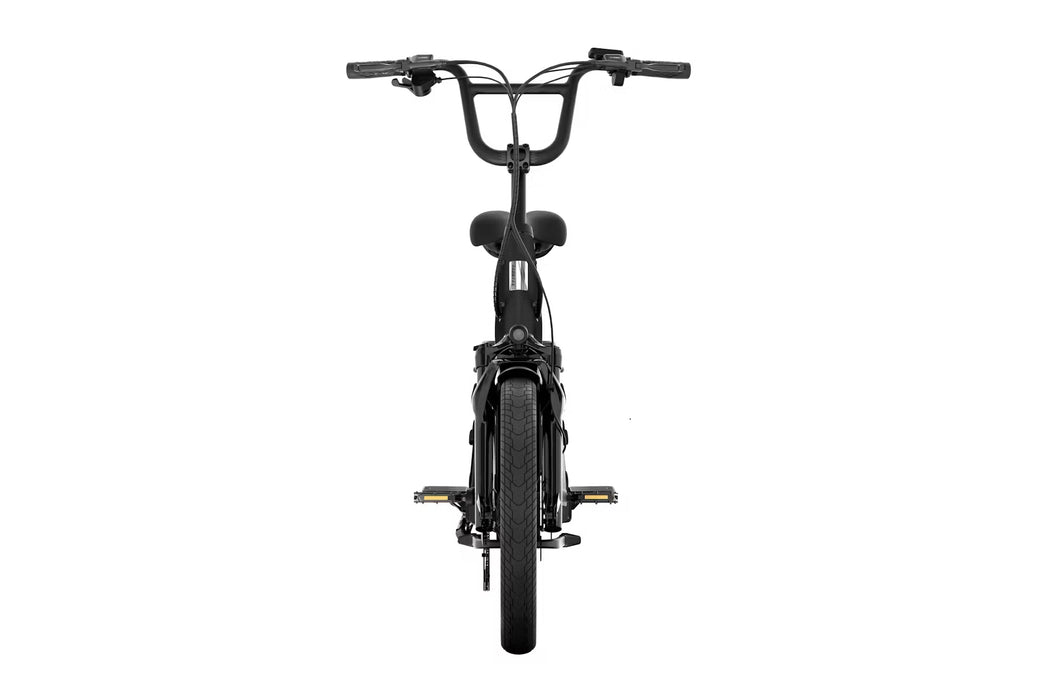

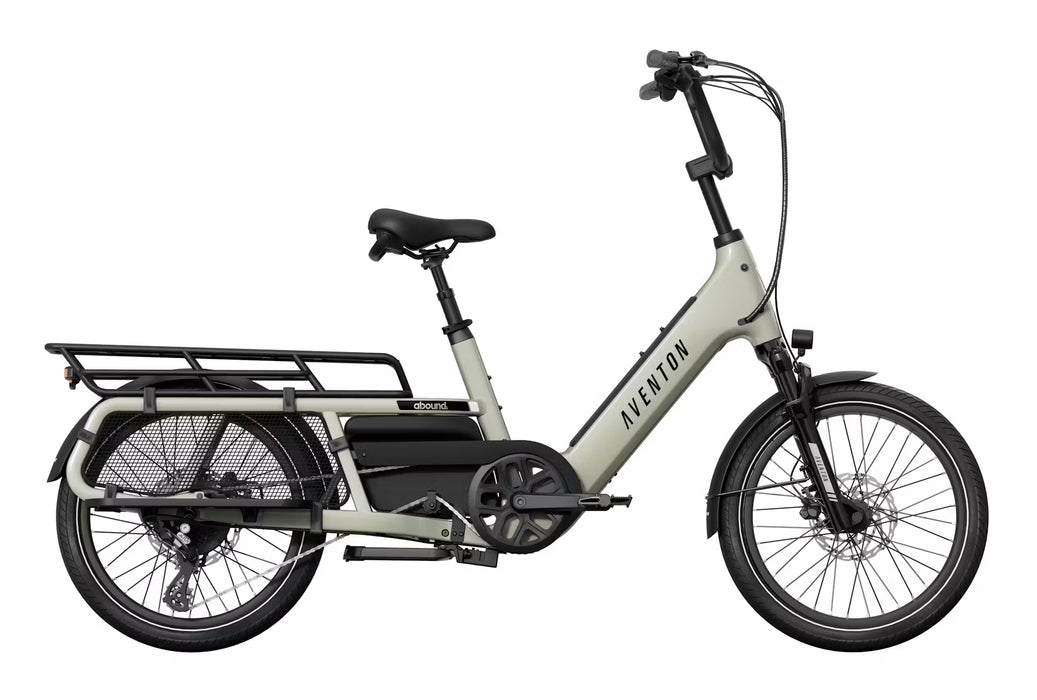

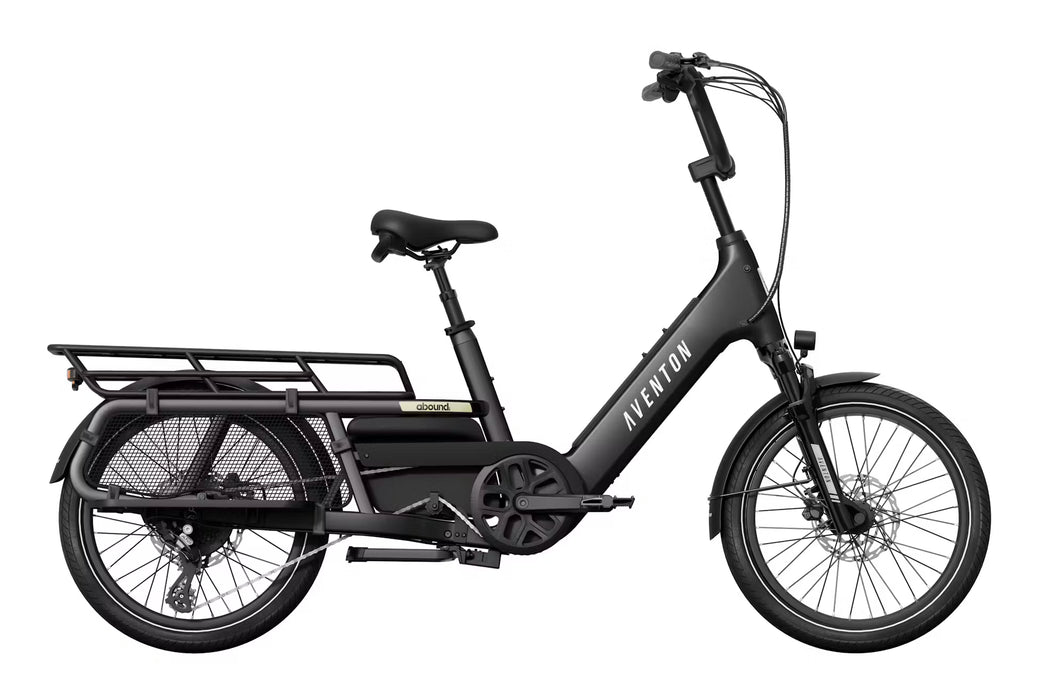

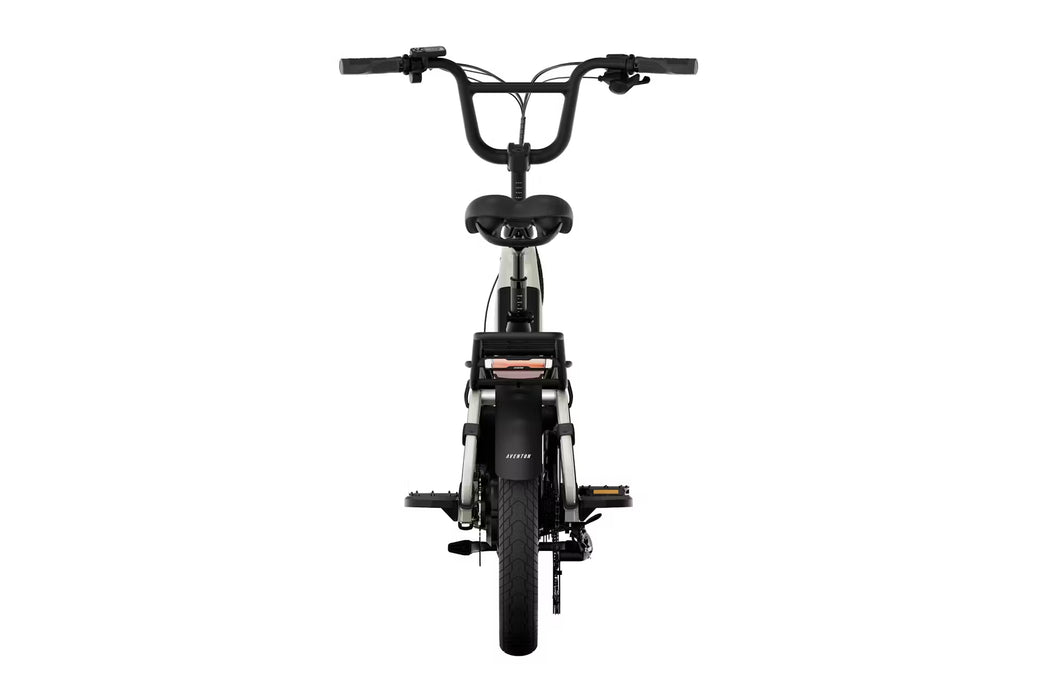

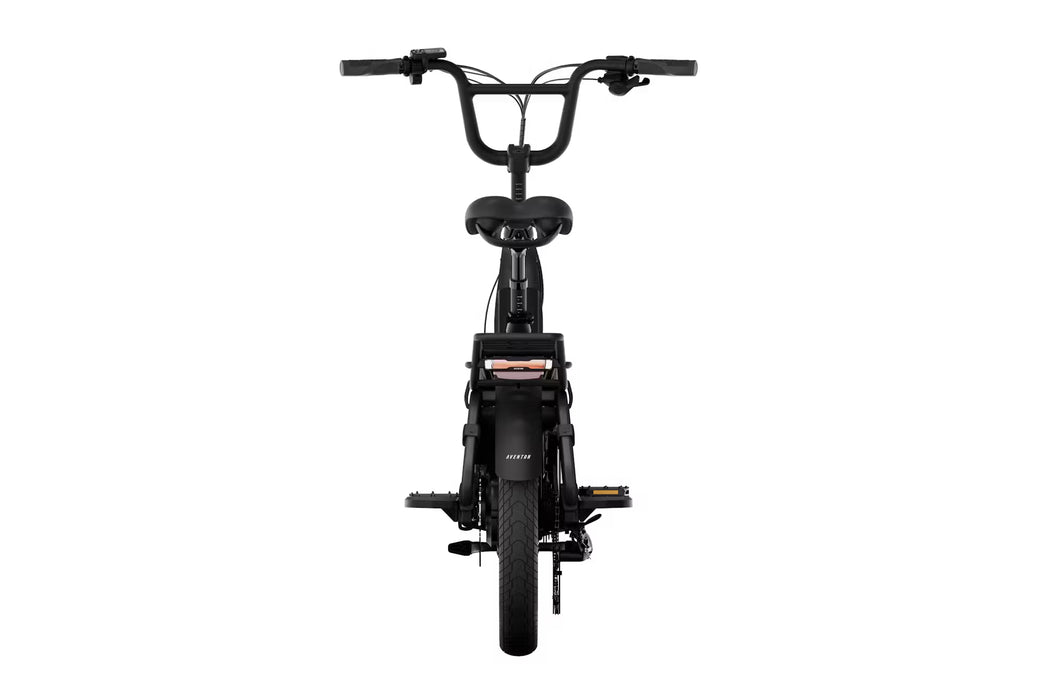

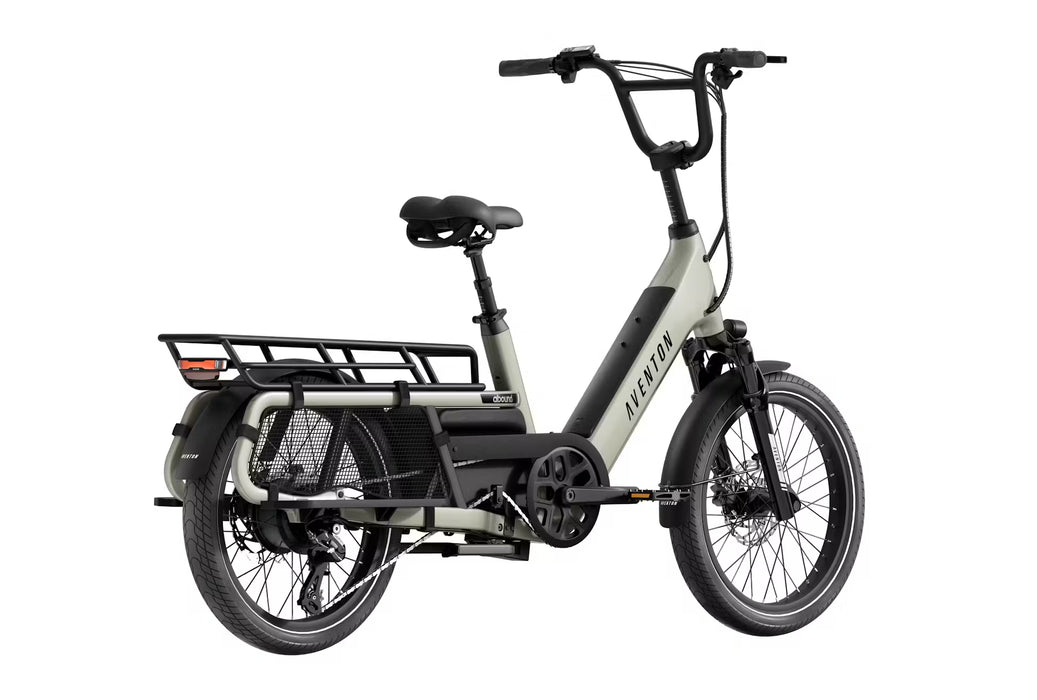

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
Top Speed
20MPH
(Adjustable to 25MPH)
Motor Power
750W
(1188W Peak)
Wireless Connection
4G†/GPS†
Increased Safety
Theft Deterrence†
General Info
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Ebike Class
Class 2 Ebike
Battery Safety Certifications
Ideal Use
Cargo & Utility
Pedal Assist
3 Levels (with Ride Tune Customization)
Carry Capacity
Carry Up To 2 Passengers
Water Resistance
Bike - IPX5 // Components - IPX6
Frameset
Frame
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
Wheelset
Front Wheel
Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
Rear Wheel
Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
Tires
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
Ebike System
Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and Rear Lights Integrated w/ Turn Signals
Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
203mm 6-bolt
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Crank
3pc, 165mm crank arm
Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon Saddle w/ grab handle by Selle Royal
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Handlebars
BMX Style Aluminum 31.8mm, 720mm
Grips
Aventon Ergonomic Comfort lock on grips
Headset
H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
