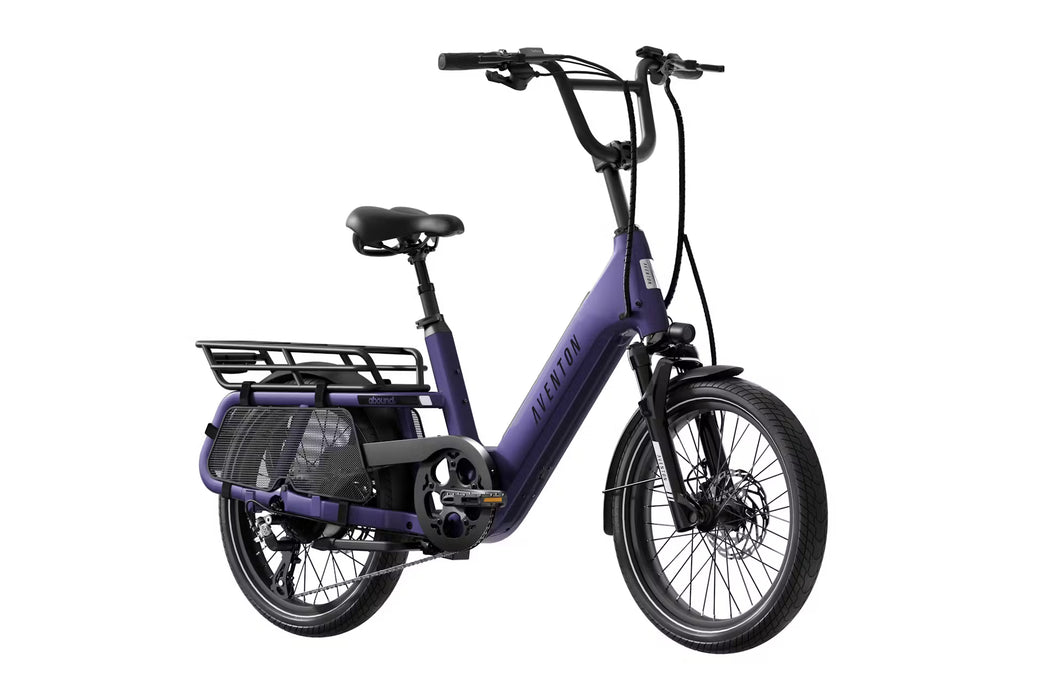

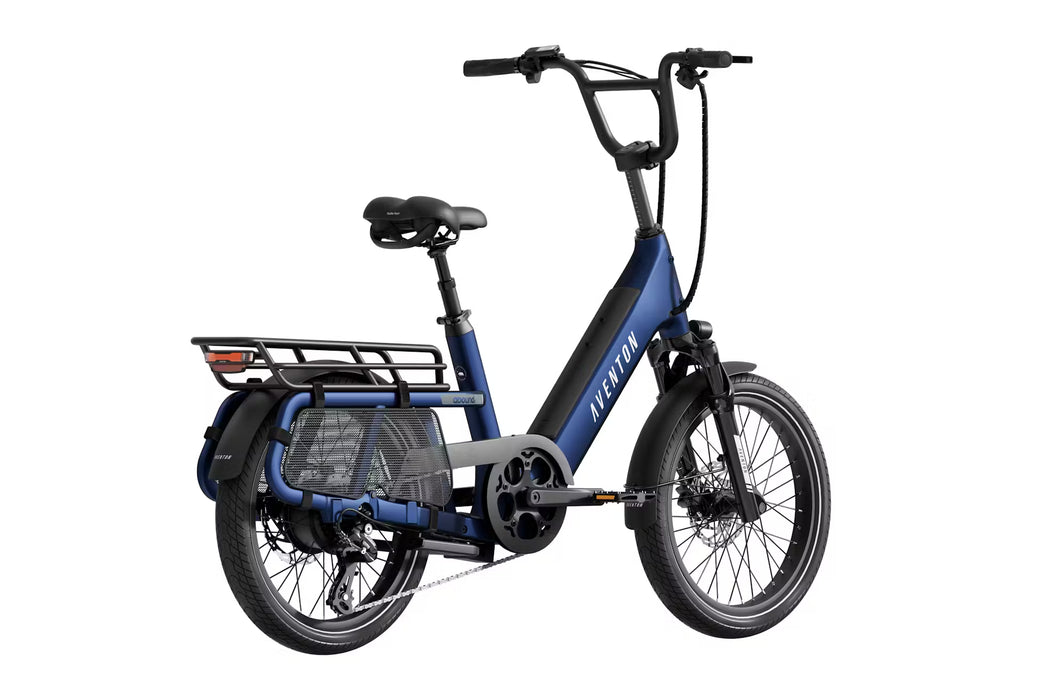

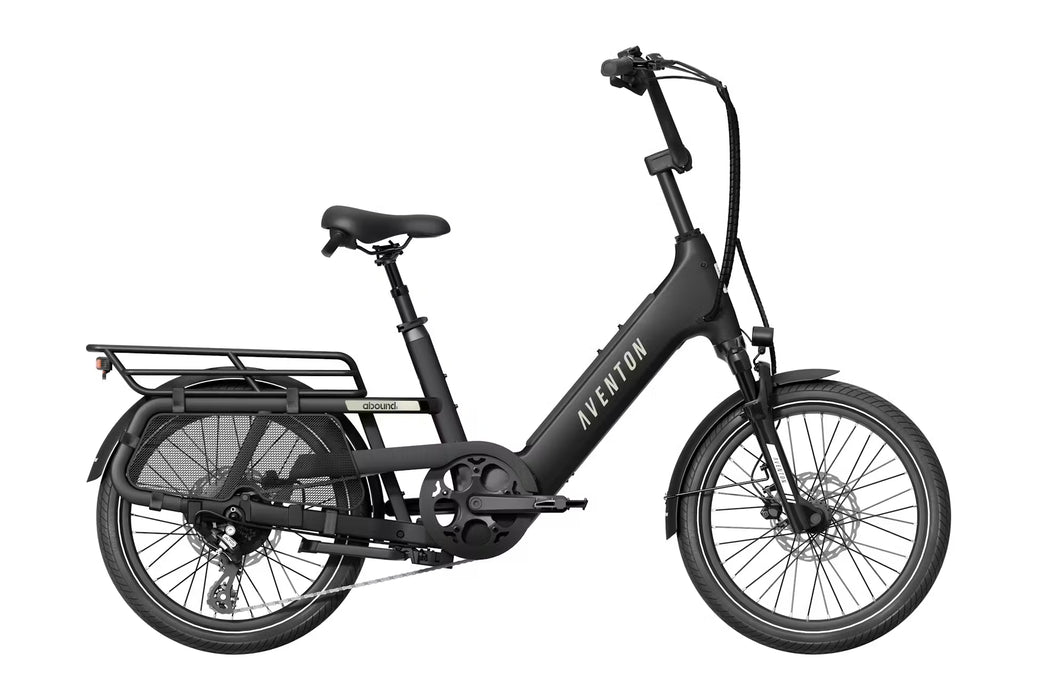

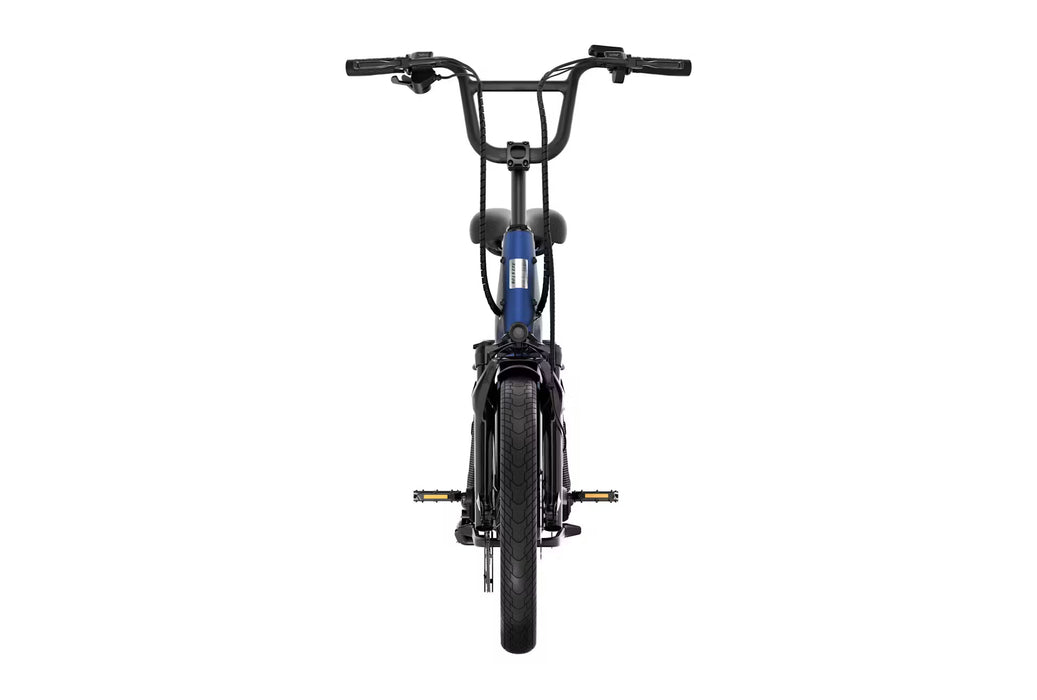

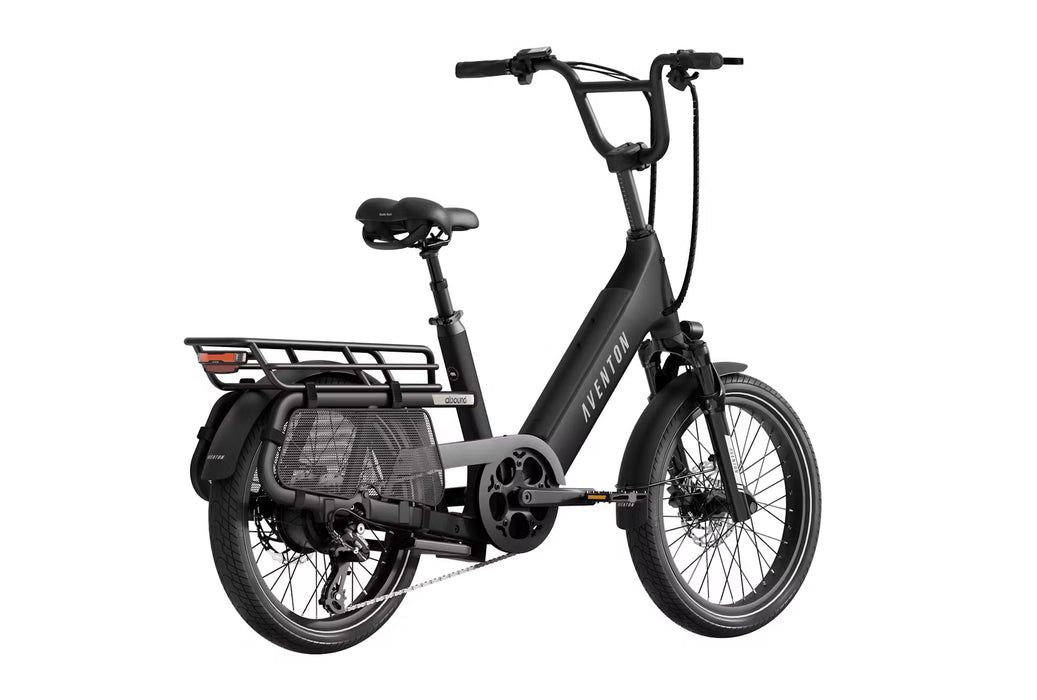

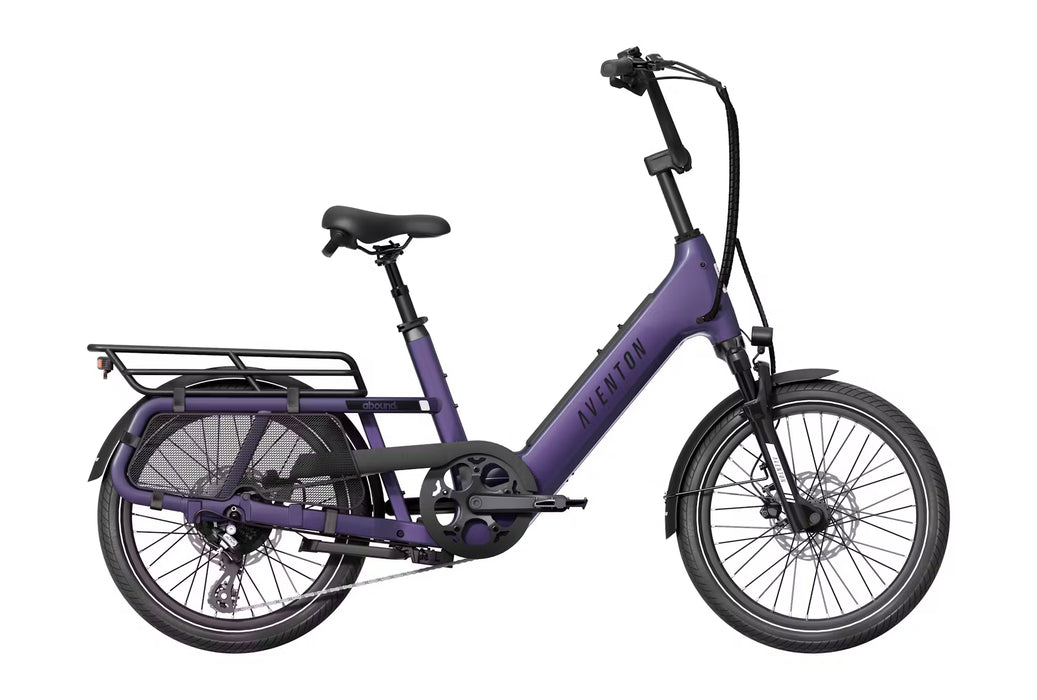

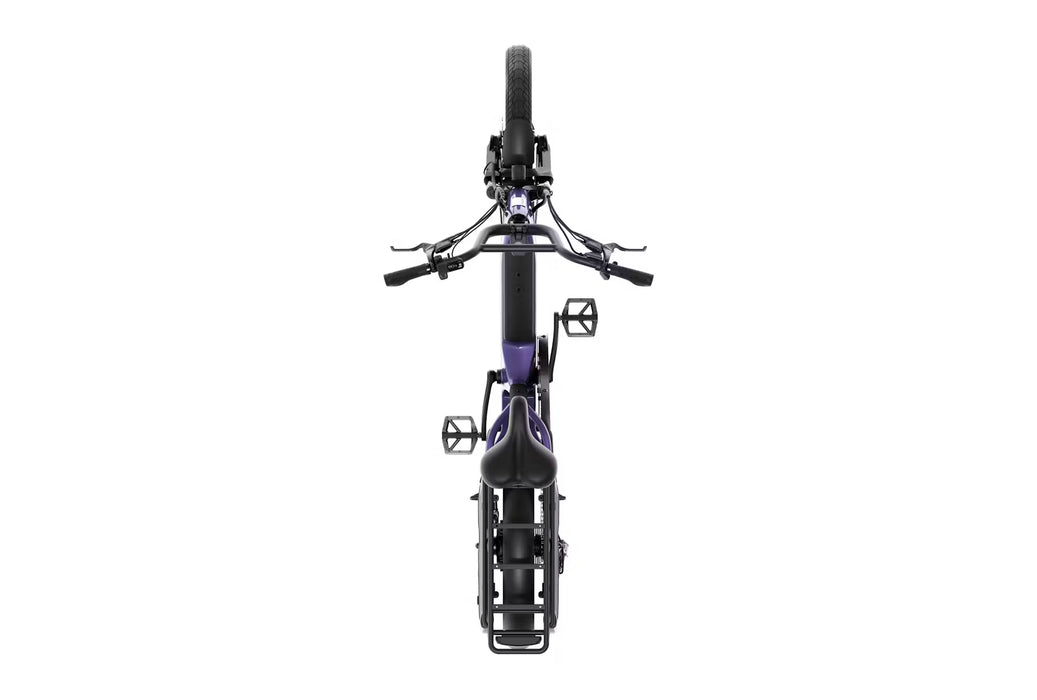

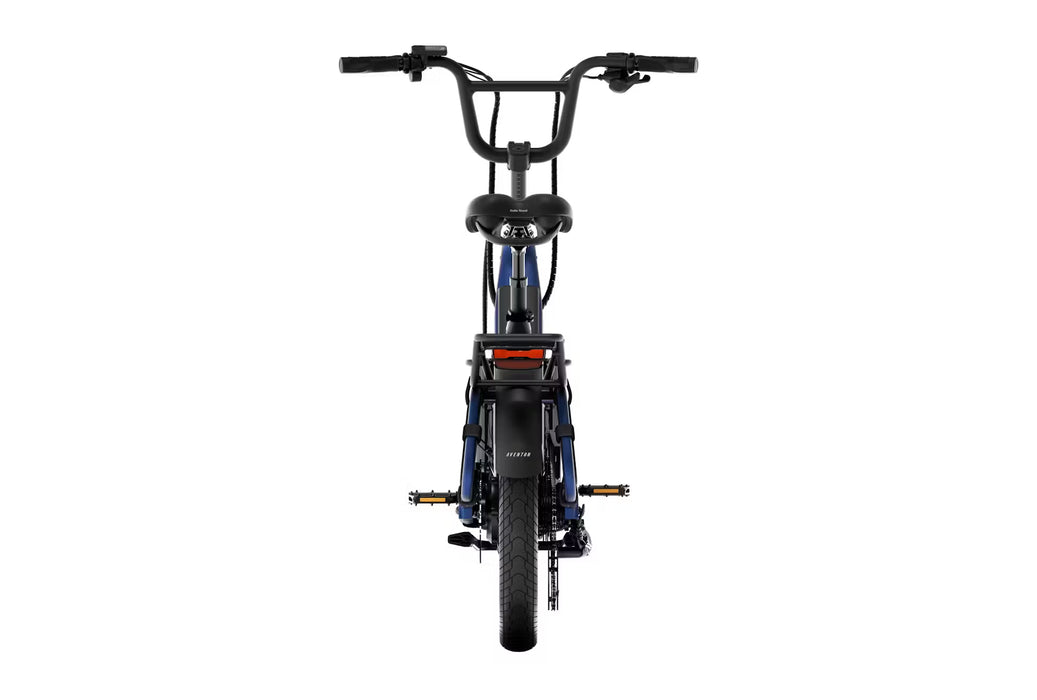

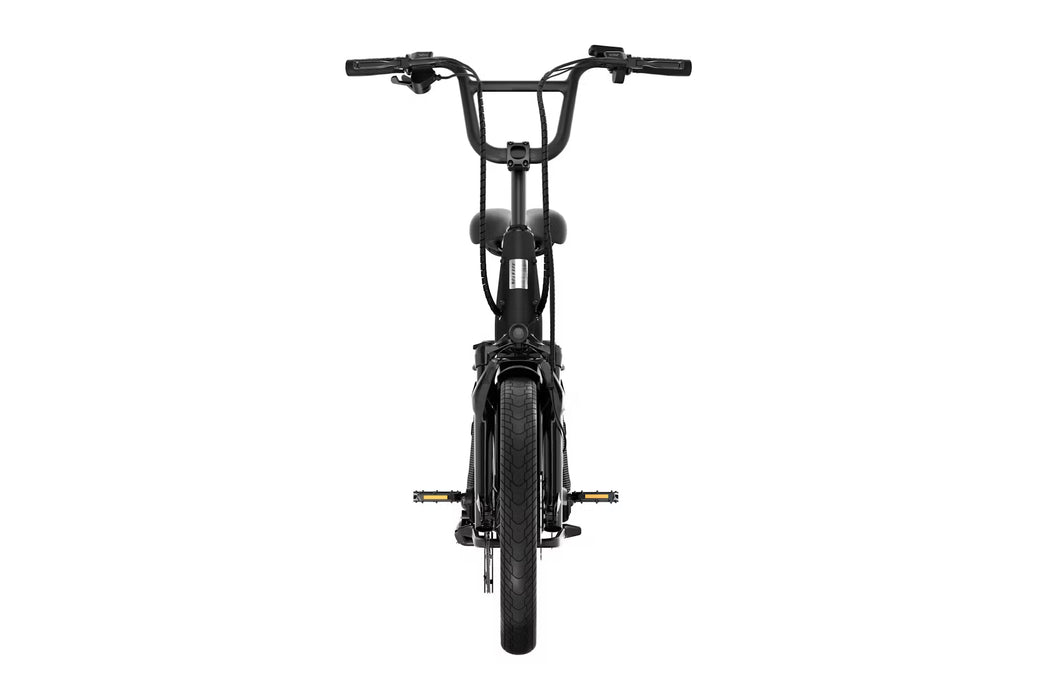

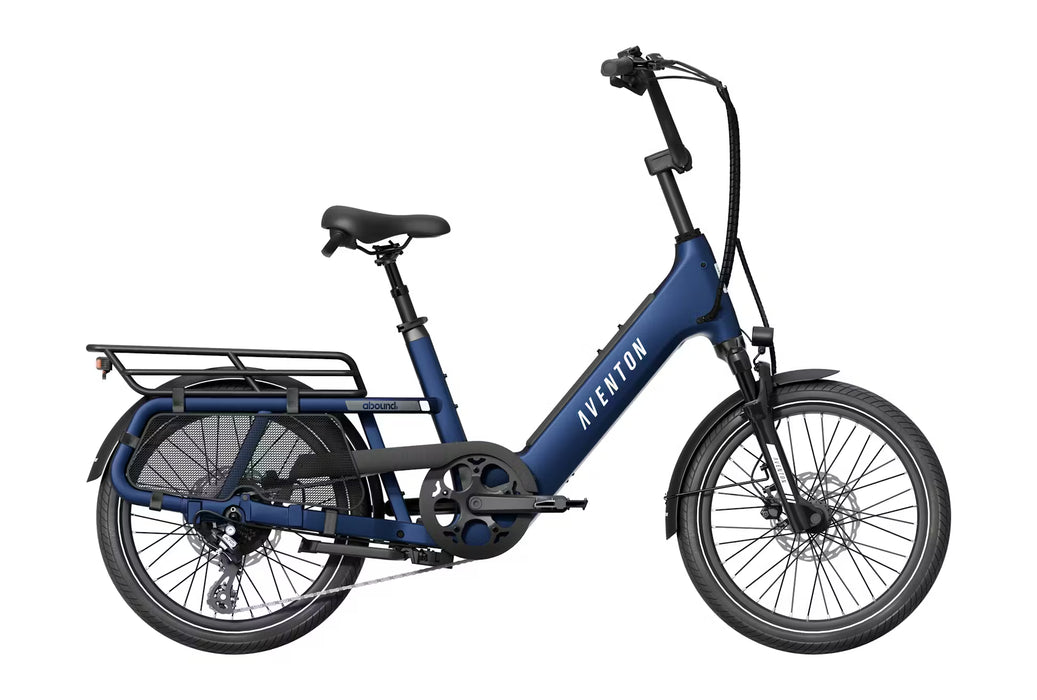

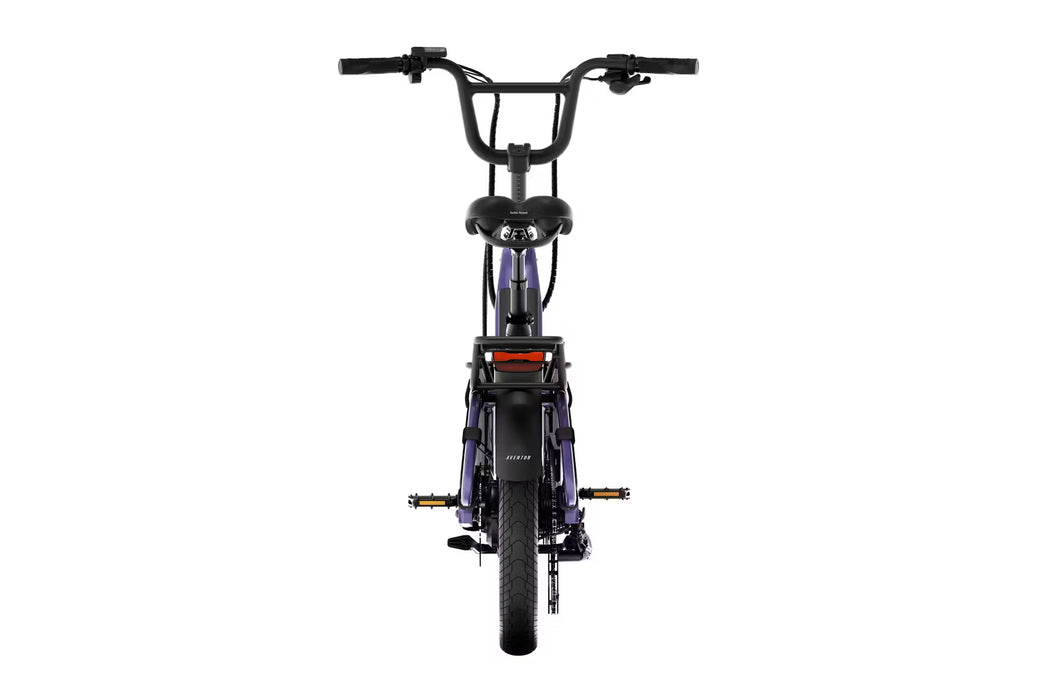

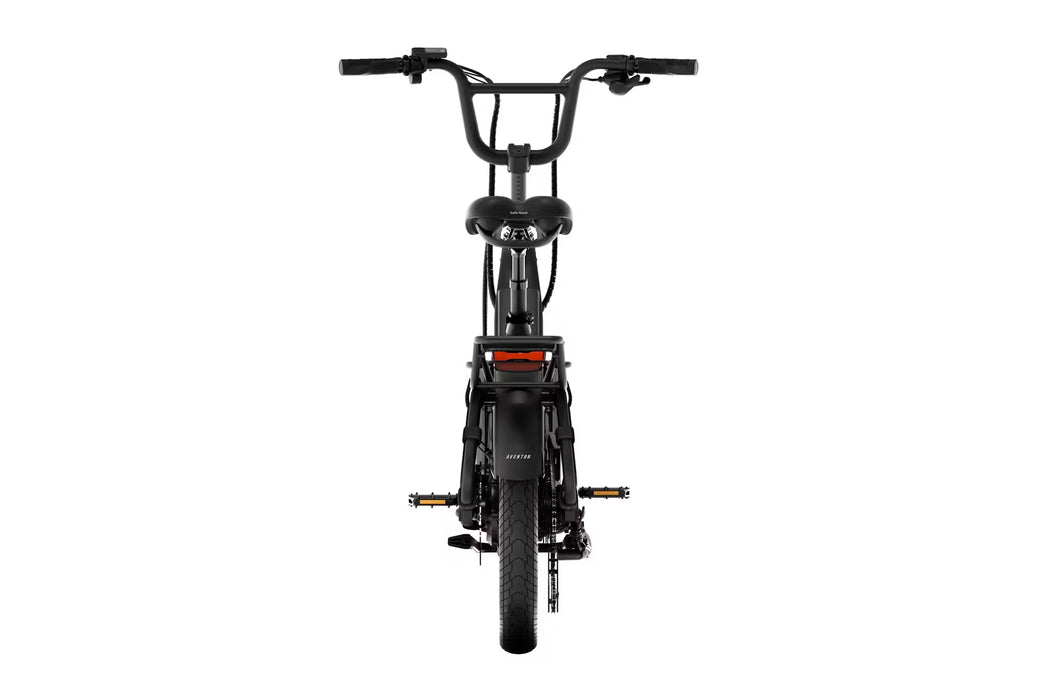

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.
It’s SRsly fun.
Top Speed
20MPH
(Adjustable to 25MPH)
Motor Power
750W
(1188W Peak)
Wireless Connection
4G†/GPS†
Increased Safety
General Info
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Ebike Class
Class 2 Ebike
Ideal Use
Cargo & Utility
Pedal Assist
3 Levels (with Ride Tune Customization)
Battery Safety Certifications
Carry Capacity
Carry A Single Passenger
Water Resistance
Bike - IPX5 // Components - IPX6
Frameset
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Wheelset
Tires
20 x 3.0 urban tire with reflective sidewalls
Wheels
20-inch, 12-gauge, 36-hole, double-wall aluminum, black
Ebike System
ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Battery
Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Brakes
Rear Brake Rotor
Tektro 203mm 6 bolt
Front Brake
Tektro HD-E3520 hydraulic disc brakes
Rear Brake
Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Crank
3pc, 165mm crank arm
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shift Lever
Shimano SL-M315-8R 8 Speed
Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon by SelleRoyal
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars
BMX Style, 31.8mm bar clamp, 680mm width
Stem
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp
34.9mm Quick Release
