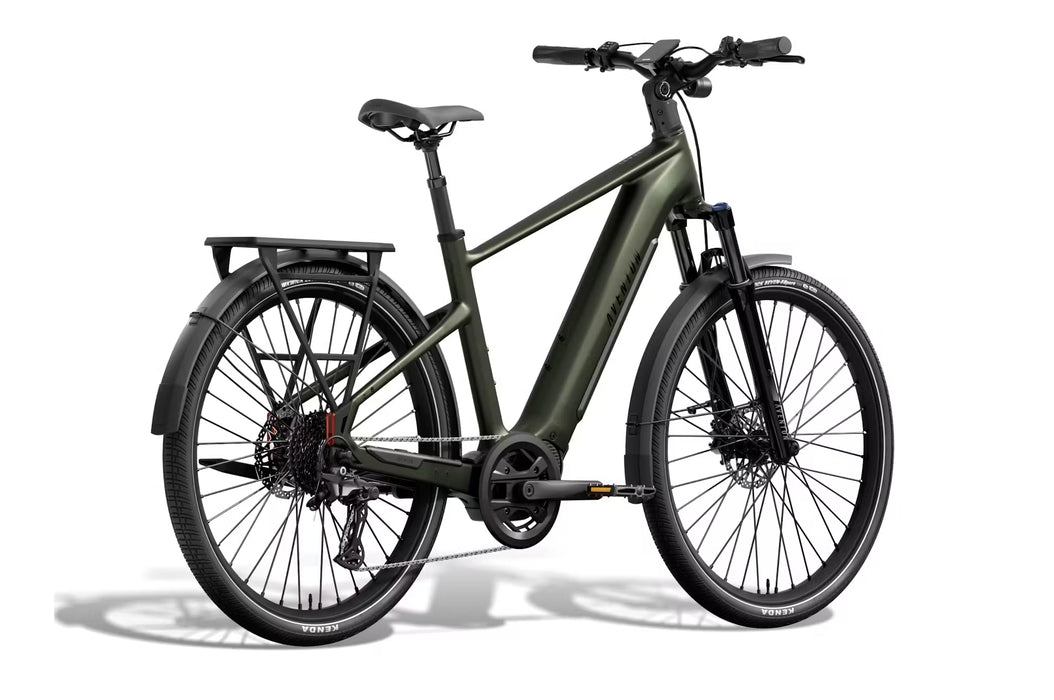

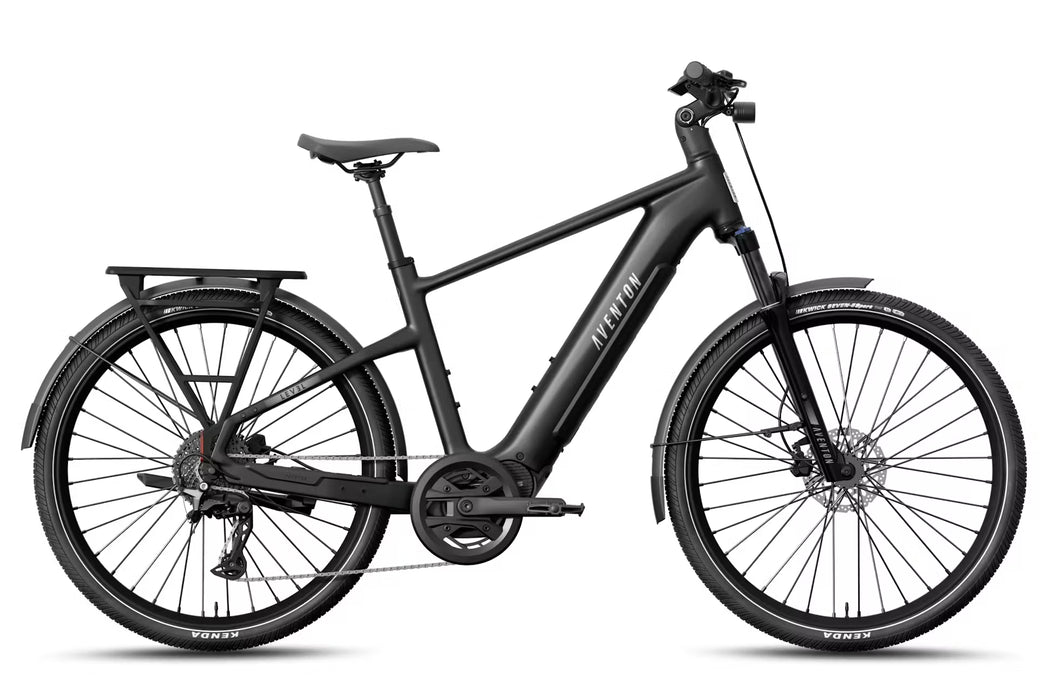

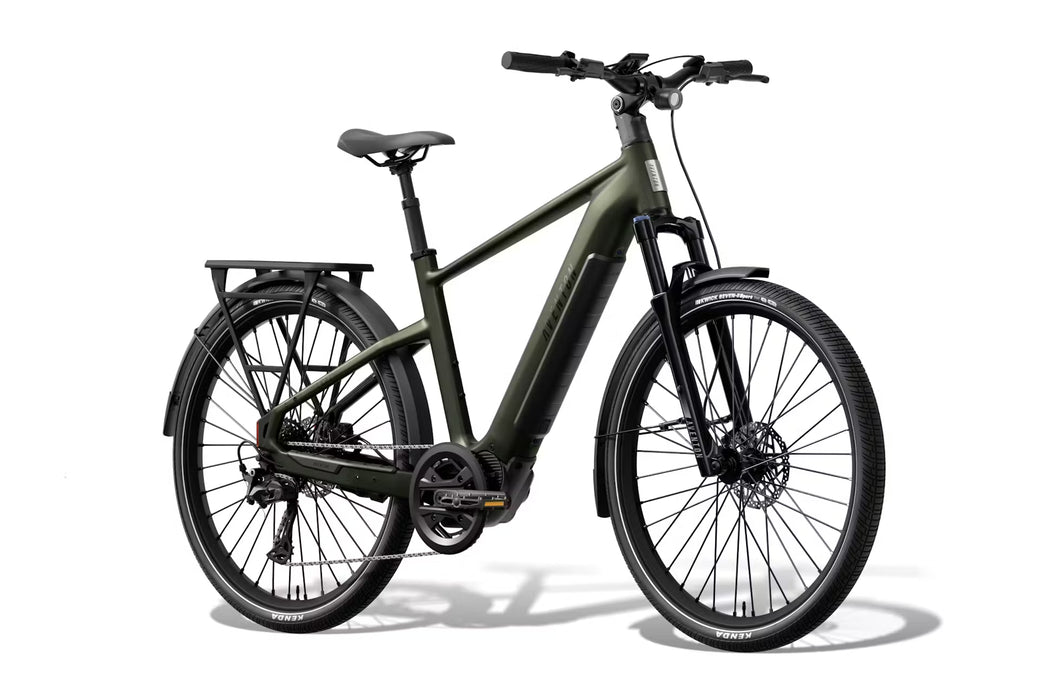

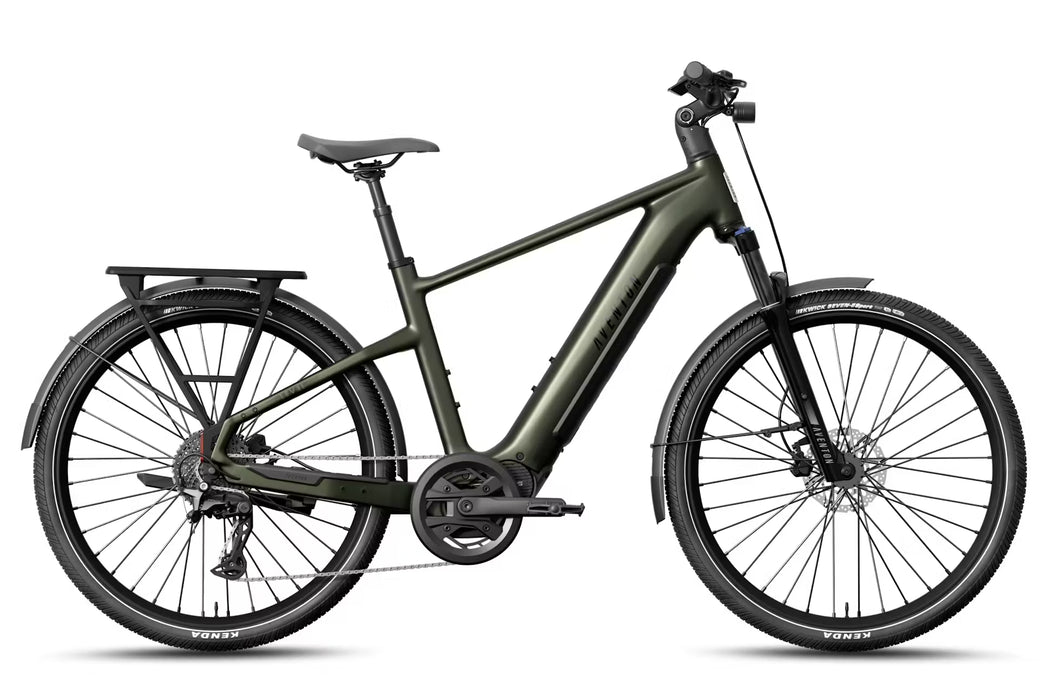

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
Specifications
General Info
Total Weight Limit
300 lbs
Rider Height
Medium - 5'3"-5'10". || Large - 5'10"-6'4". || Extra Large - 6'4"-6'7"
Ebike Class
Class 1 (Convertible to Class 2 and/or Class 3)
Water Resistance
Bike - IPX6 // Motor - IP67
Battery Safety Certifications
Frameset
Fork
100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15x100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube
Wheelset
Front Wheel
27.5" Double Wall Aluminum, 36H
Rear Wheel
27.5" Double Wall Aluminum, 36H
Tires
Kenda K1052, 27.5x2.2"
Ebike System
Motor

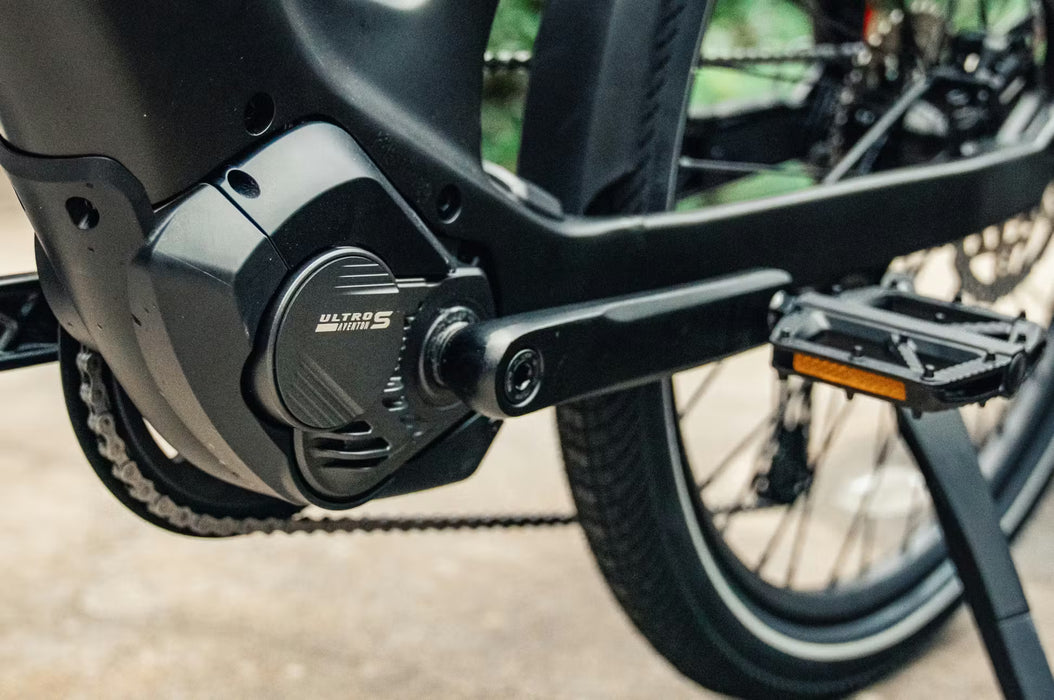

Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power
Display
A280 Center Display
Battery
Removable Lithium-Ion. 36V, 20Ah, 800Wh, Samsung 21700 58E cells
Throttle
Compatible, Not Included
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Smart Features
Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
Brakes
Front Brake
Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
Rear Brake
Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
180mm 6 bolt
Drivetrain
Rear Derailleur
Shimano Cues 10-Speed
Crankset
165mm ISIS Splined
Pedals
9/16" Composite Platform
Cassette
Shimano Cues 10-Speed 11-39T
Cockpit
Seatpost
Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length
Handlebars
31.8mm, 680mm Width, 30mm Rise
Grips
Aventon Lock on grips
