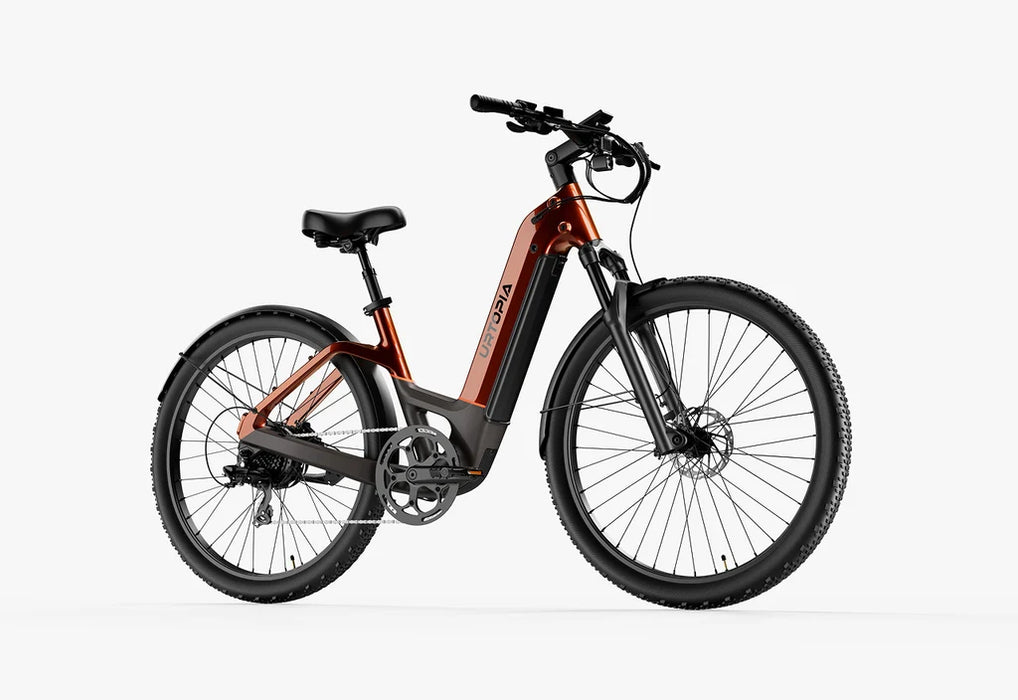

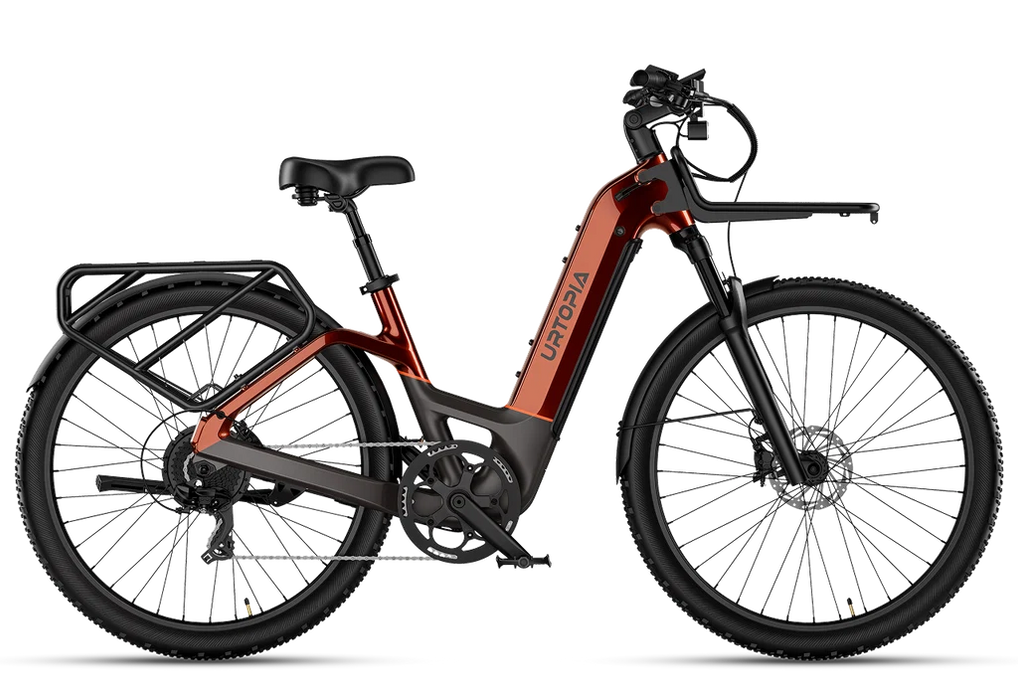

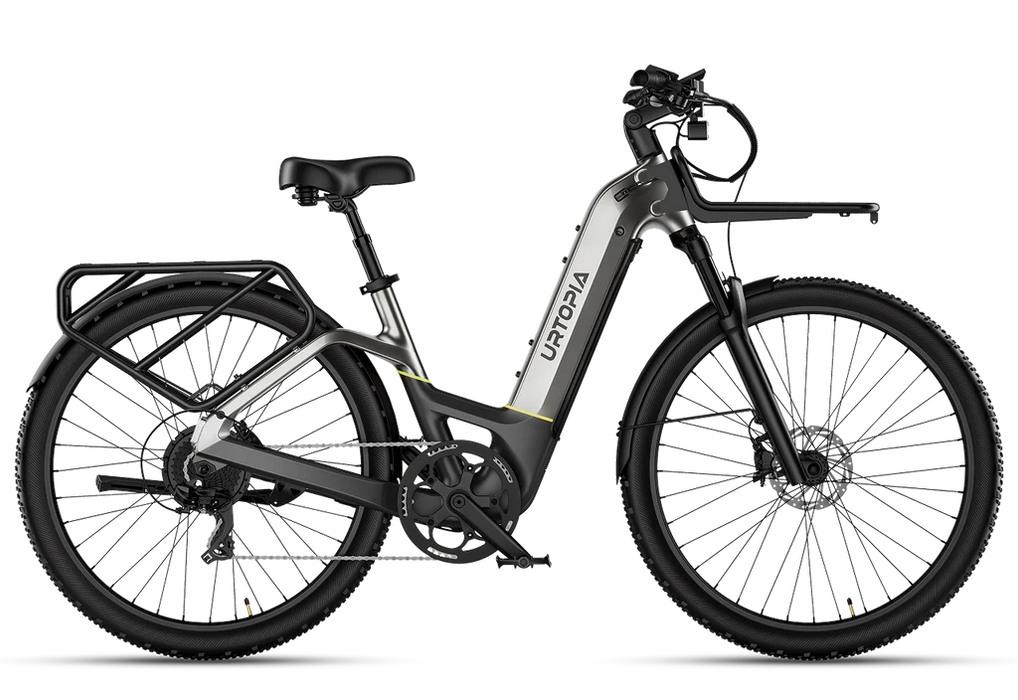

Carbon Atom E-Bike

Carbon Atom E-Bike

by Urtopia
SKU
$2,499.00 - $2,499.00
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
Size: One size

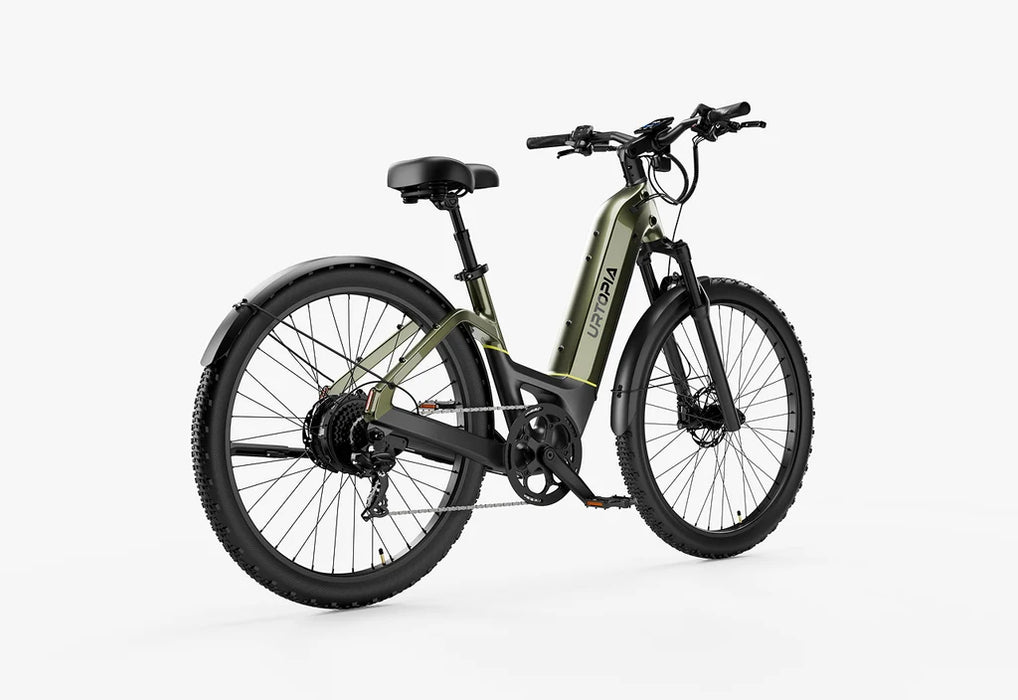

Color: Olive

Bikes go in & out of stock regularly. If a bike is not in stock please feel free to Contact Us about our special ordering program.

Description

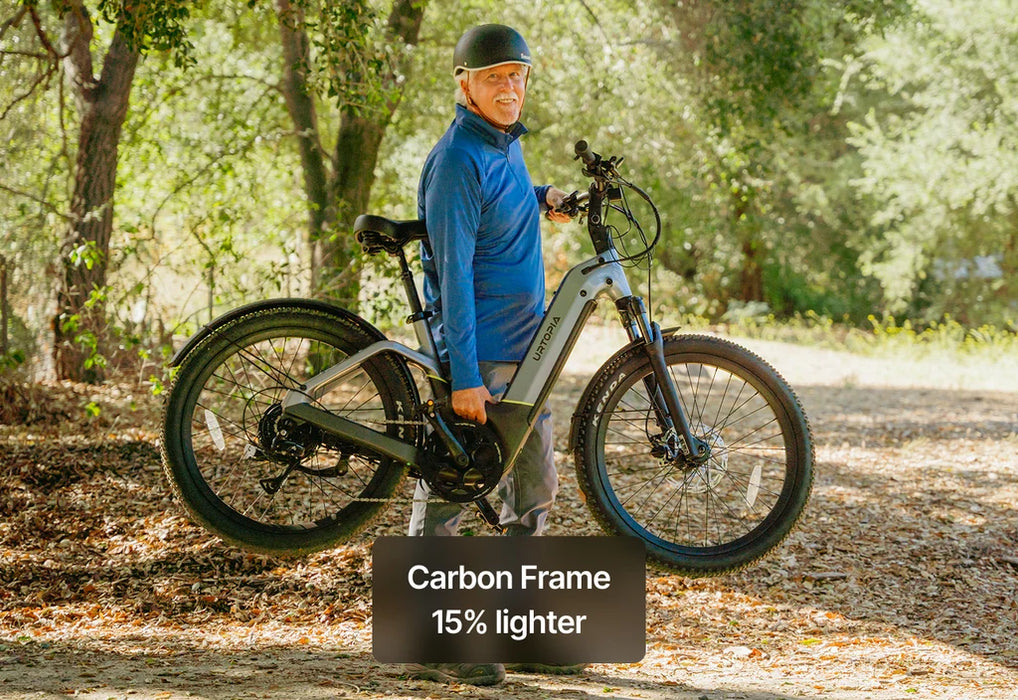

Carbon Fiber Expert
Toray® Carbon Fiber
15% Lighter

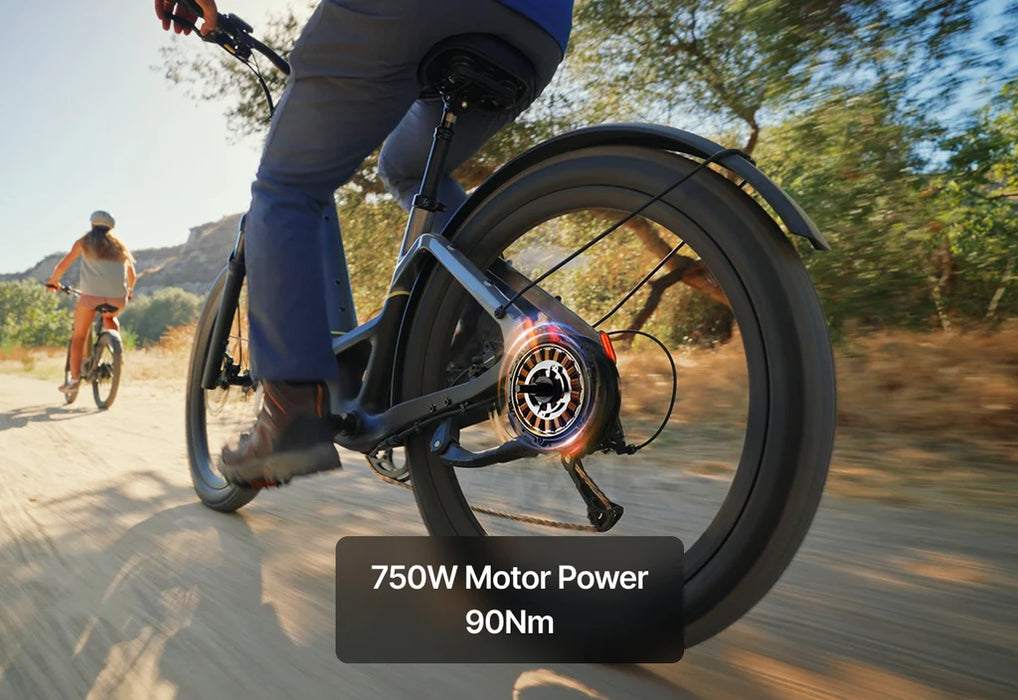

Motor Power
750W
Long Range
Up to 93 Miles

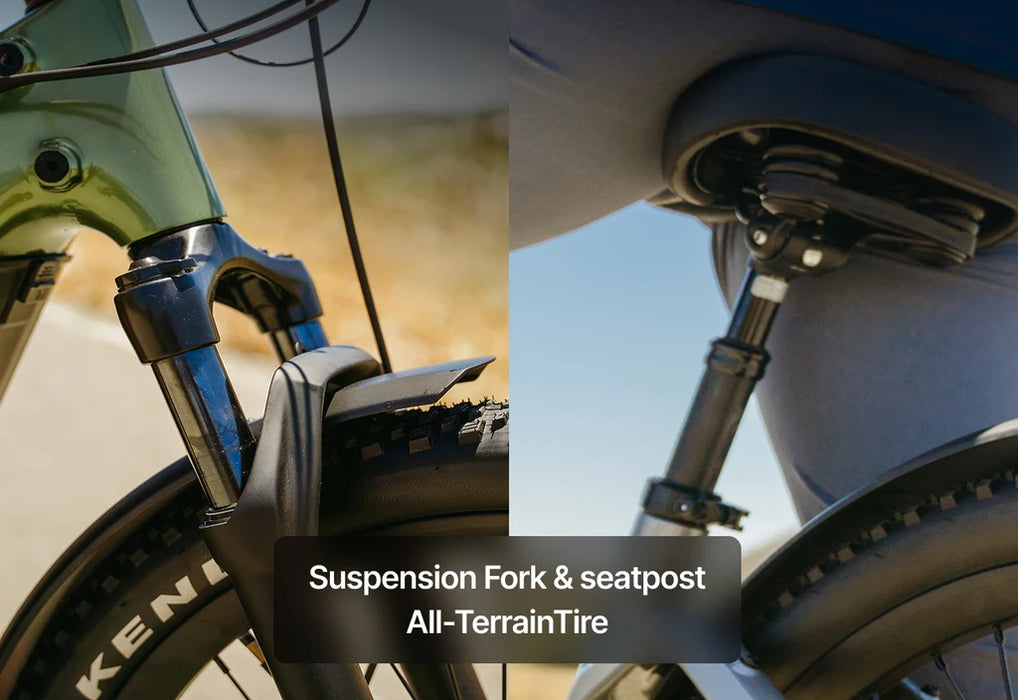

Suspension
Fork & Seatpost
Colorful Display
3.5" LCD Screen
Safety Certified
UL 2849 & UL 2271

Technical Specifications

General Info

Model
Carbon Atom E-bike
Ideal use
All Road
Bike Weight
61.7 lbs (28kg)
Net Weight
58 lbs (26.5kg) w/ battery
50 lbs (22.7kg) w/o battery

*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Material
Carbon fiber frame
Folding
No
Frame style
Step-Through
Pedal Assist Range
Up to 93 miles

*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Top Speed
28mph
Total Payload Limit
330 lbs
Rider Height
Regular: 5'3" - 5'11"
Brakes
TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
Wheels
Kenda 26" x 2.4", Puncture-Resistant Tires
Bike Water Resistance
IP65

Ebike System

Motor Power
Rated Power 750W (Peak Power 1250W) rear hub
Motor Max. Torque
90Nm
Battery
48V 17.4Ah (835Wh) LG Li-ion, High-Performance Cell, Removable, UL 2271 Certified
External Battery
No
Pedal Assist
4 levels
Charger
48V 4.5A Fast Charger, 4-Hour Charging Time
Display
3.5" color LCD
USB Charge
Yes
Sensors
Torque sensor
Lights
Front: External light, 100 lux

Rear: Integrated rear light with turn signal & brake light
Throttle
Yes (up to 20mph)
Class
Class 2 or 3

Drivetrain

Chainrings
52T
Crankset
Aluminum, length 170mm
Cassette
12T-32T, 8-Speed
Chain
Shimano 8-Speed
Rear Derailleur
Shimano ACERA 8-Speed
Shift Lever
8 Speed Trigger
Pedals
9/16" Alloy Platform

Cockpit

Grips
Durable ergonomic grips, lockable
Seat Post
Aluminum 30mm Travel Suspension Seatpost, 31.6mm Clamp,
Total Length: 355mm
Marked Range: 120mm
Fork
80mm travel Aluminum suspension fork
Saddle
Comfort Saddle, 254x223x90mm
Handlebar
Aluminum, 31.8mm Clamp, 700mm Wide
Stem
Aluminum Stem, 0-90° Adjustable

Smartbar

Smartbar features
No
Connectivity
No
Theft Defenses
N/A
App
only for OTA
SIM/Connect Service
No
